Audi Q5 SQ5 Right Low EU LED DRL & Turn Signal Module 80A998474B 6002TX0524

Audi Q5 / SQ5 Right Low EU LED DRL & Turn Signal Module - 80A998474B / 6002TX0524

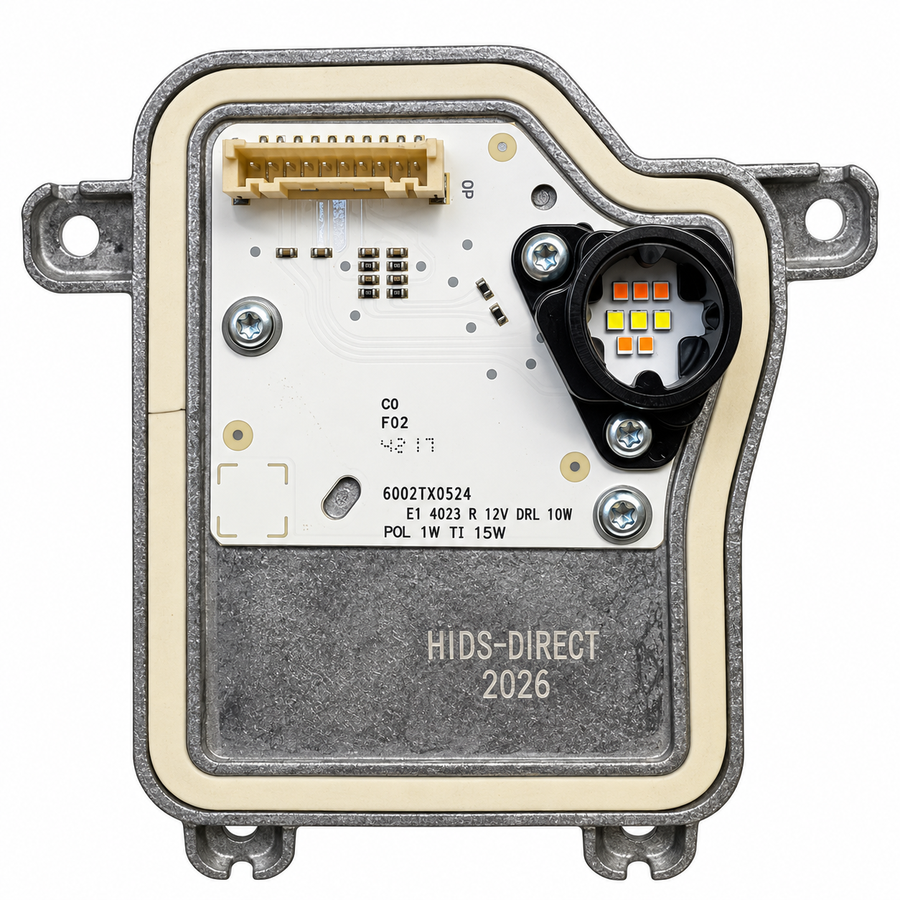

Restore the white daytime running light, position light and amber front indicator on a compatible Audi Q5 / SQ5 FY LED headlight with this HIDS-DIRECT replacement module. This is the Low EU eight-LED version, supplied with LED circuit board, connector, optical holder, metal heatsink and perimeter seal.

Key Features

• OE replacement reference: 80A998474B
• Board reference shown: 6002TX0524
• White DRL and position-light functions plus amber turn signal
• Eight emitters: three white-light LEDs and five amber LEDs
• Low EU configuration for the matching LED headlight
• Finned metal heatsink and perimeter seal, as pictured
• Dimensions: 90 × 100 × 40 mm — length × width × depth

Technical Specifications

Vehicle Compatibility & Headlight Checks

Expand the sections below for catalogue coverage and the checks needed to confirm fitment.

Installation & Fault Diagnosis

Professional installation is recommended. Diagnose the fault and inspect the light guide, connector, wiring and headlight for moisture before replacing the module. A damaged or discoloured light guide can leave the DRL yellow or dim after fitting a new module. Follow the vehicle-specific workshop procedure for sealing, mounting and heat transfer. Diagnostic checks or vehicle-specific setup may be required.

What’s Included

One HIDS-DIRECT right-hand module assembly with LED board, multipin connector, optical holder, metal heatsink and perimeter seal, as pictured. Complete headlight, other lighting control units and vehicle wiring are not included.

For help confirming fitment, provide your original module number and clear photographs of the board, connector and headlight label.

Frequently Asked Questions

Which headlight type does 80A998474B fit?

It is the right eight-LED DRL and turn-signal module for the matching Audi Q5/SQ5 FY LED headlight configuration. This stock is described as Low EU. Match the original 80A998474B reference, 6002TX0524 board, LED layout, connector and mounting points.

What lighting functions does it provide?

The module supplies white daytime running light, white position / side light and amber turn signal functions in the matching headlight. It does not provide the dipped or main beam.

Which side does it fit?

Front right, viewed from inside the vehicle facing forwards. On UK right-hand-drive vehicles this is the driver side / offside. It is not interchangeable with the left-hand module.

Does it replace the no-suffix, A or C versions?

Different suffixes and LED counts can identify different headlight configurations. Do not assume 80A998474, 80A998474A or 80A998474C is interchangeable. Confirm the complete original reference and board layout before ordering.

What are the dimensions and what is included?

Dimensions are length 90 mm × width 100 mm × depth 40 mm. One right-hand module assembly is supplied with LED board, connector, optical holder, metal heatsink and perimeter seal, as pictured. The complete headlight and vehicle wiring are not included.

Will replacement fix every dim or yellow DRL?

A failed module can cause a dim, flickering or non-working light. A damaged light guide, moisture, wiring or connector fault can cause similar symptoms. Diagnose the fault and inspect the light guide and seal before replacing the module. Coding-free installation is not guaranteed.
