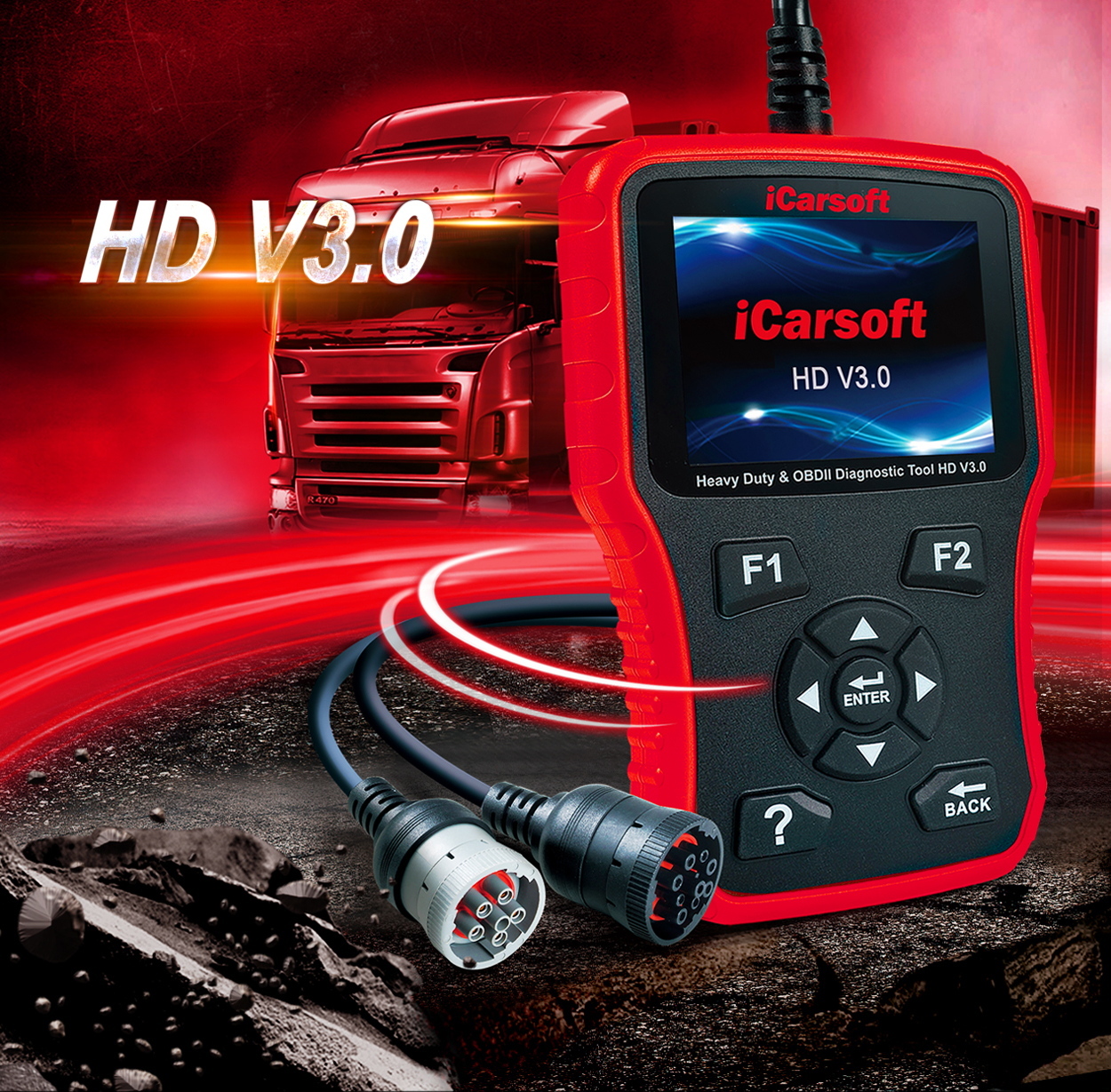

iCarsoft HD V3.0 Diagnostic Scan Tool for Heavy Duty Commercial Vehicles

 iCarsoft HD V3.0 Diagnostic Scan Tool for Heavy Duty Commercial Vehicles

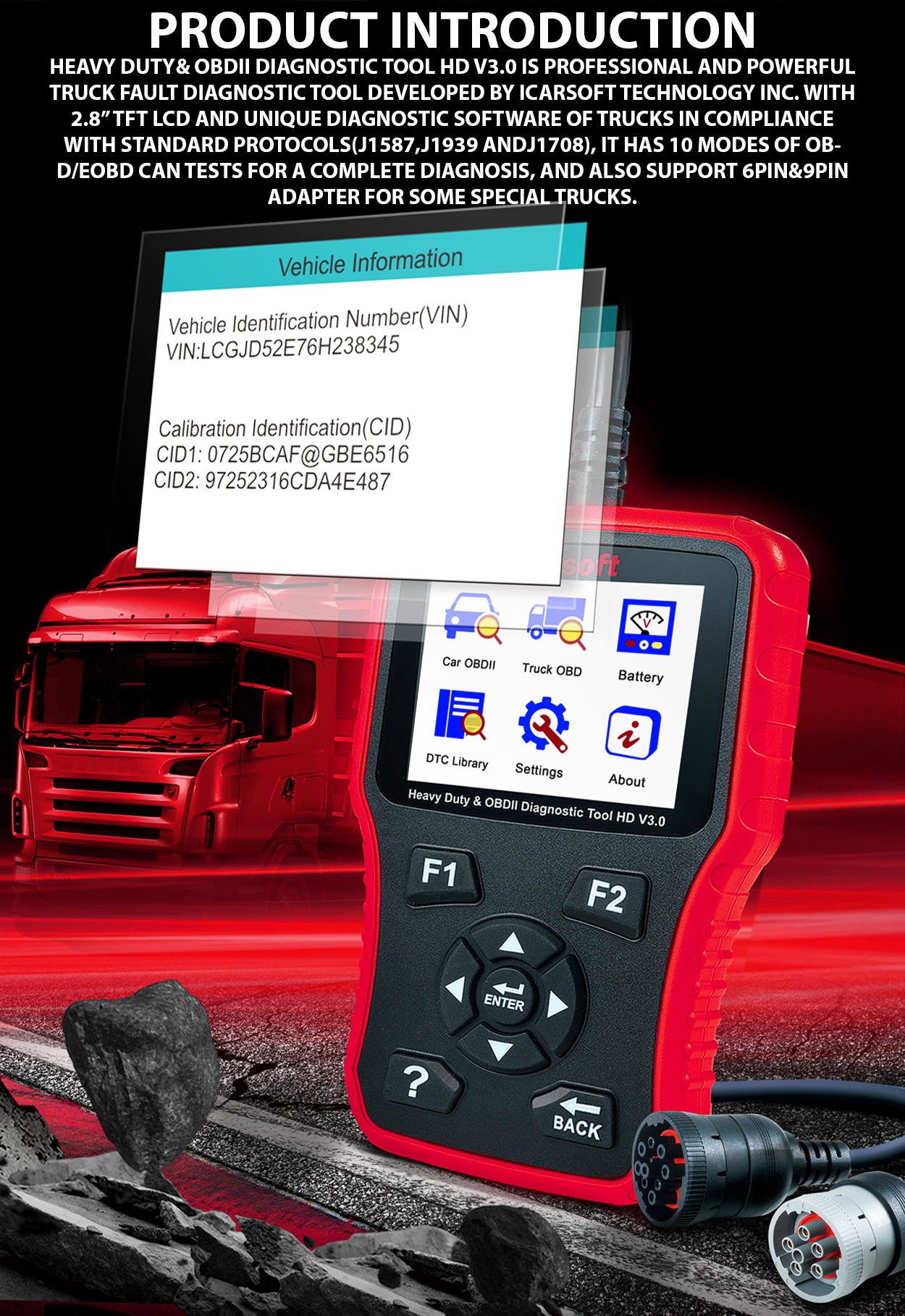

Heavy Duty Diagnostic Scan Tool HD V3.0 is the perfect tool for diagnosing and clearing heavy duty diagnostic trouble codes. It covers J1587, J1708 and J1939 protocols, for accessing Engine, Transmission, Brakes and more. It features a 2.8" full colour LCD display and is ergonomic, highly portable and easy to use.

• HD V3.0 is a powerful Code Reader for both heavy duty and car
• It can work on all the vehicles which equipped with HD-OBD and OBDII
• HD V3.0 for Heavy Duty Diagnostic Tool is the perfect tool for diagnosing and clearing heavy duty diagnostic trouble codes
• The Heavy Duty Diagnostic Tool HD V3.0 will work on ANY gas/diesel Heavy truck that complies with the Heavy Duty Standard Protocol
• Almost all heavy trucks comply to this standard
• For the heavy duty, It covers J1587, J1708 and J1939 protocols, for accessing Engine, Transmission, Brakes and more
• For the car, it covers CAN, KWP,J1850 and ISO protocols, for accessing general OBDII powertrain system

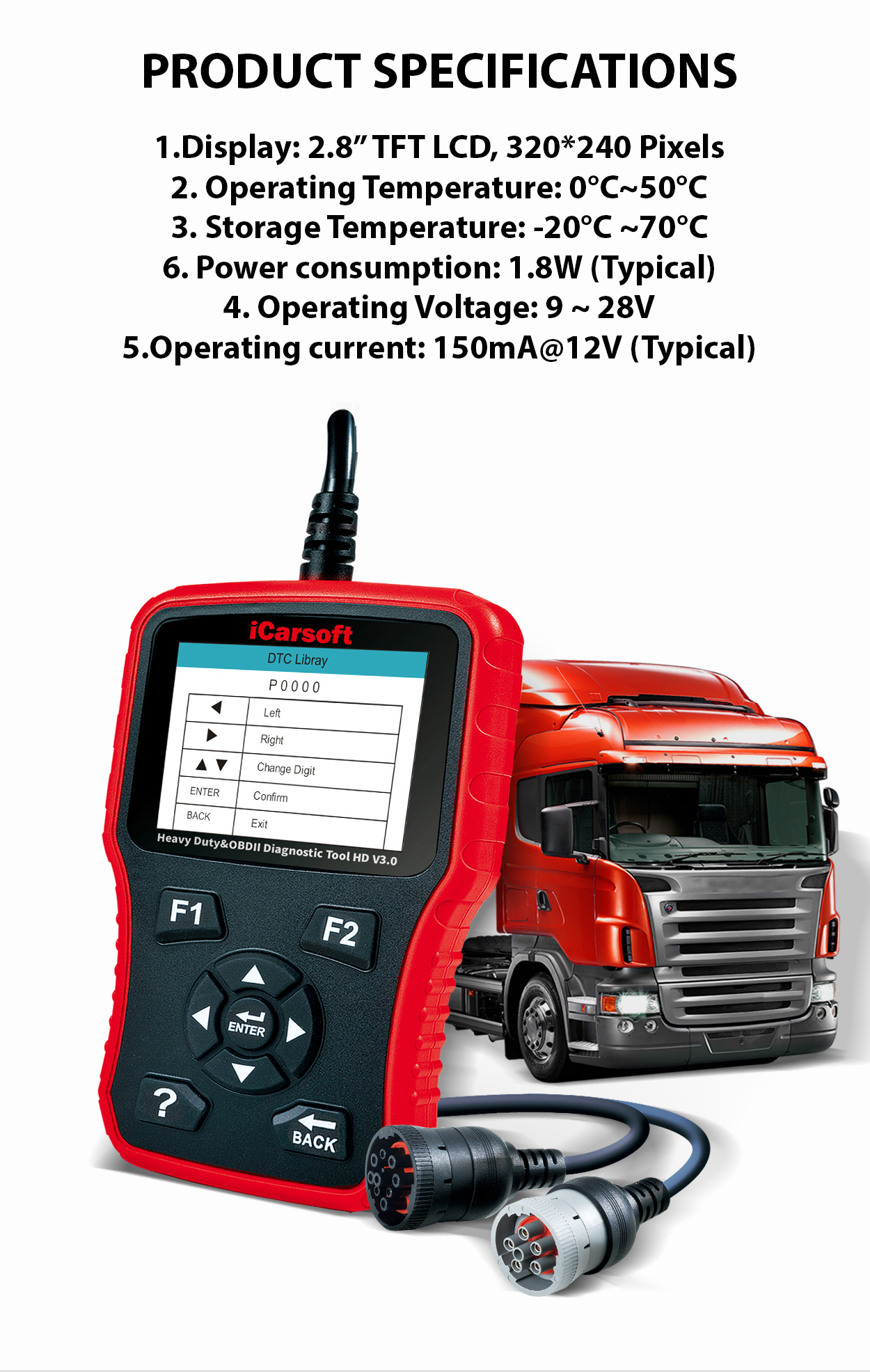

• It features a 2.8" full color LCD display and is ergonomic, highly portable and easy to use

ICARSOFT HD V3.0 COMES WITH FREE SOFTWARE UPDATES!

ICARSOFT HD V3.0 FUNCTIONS

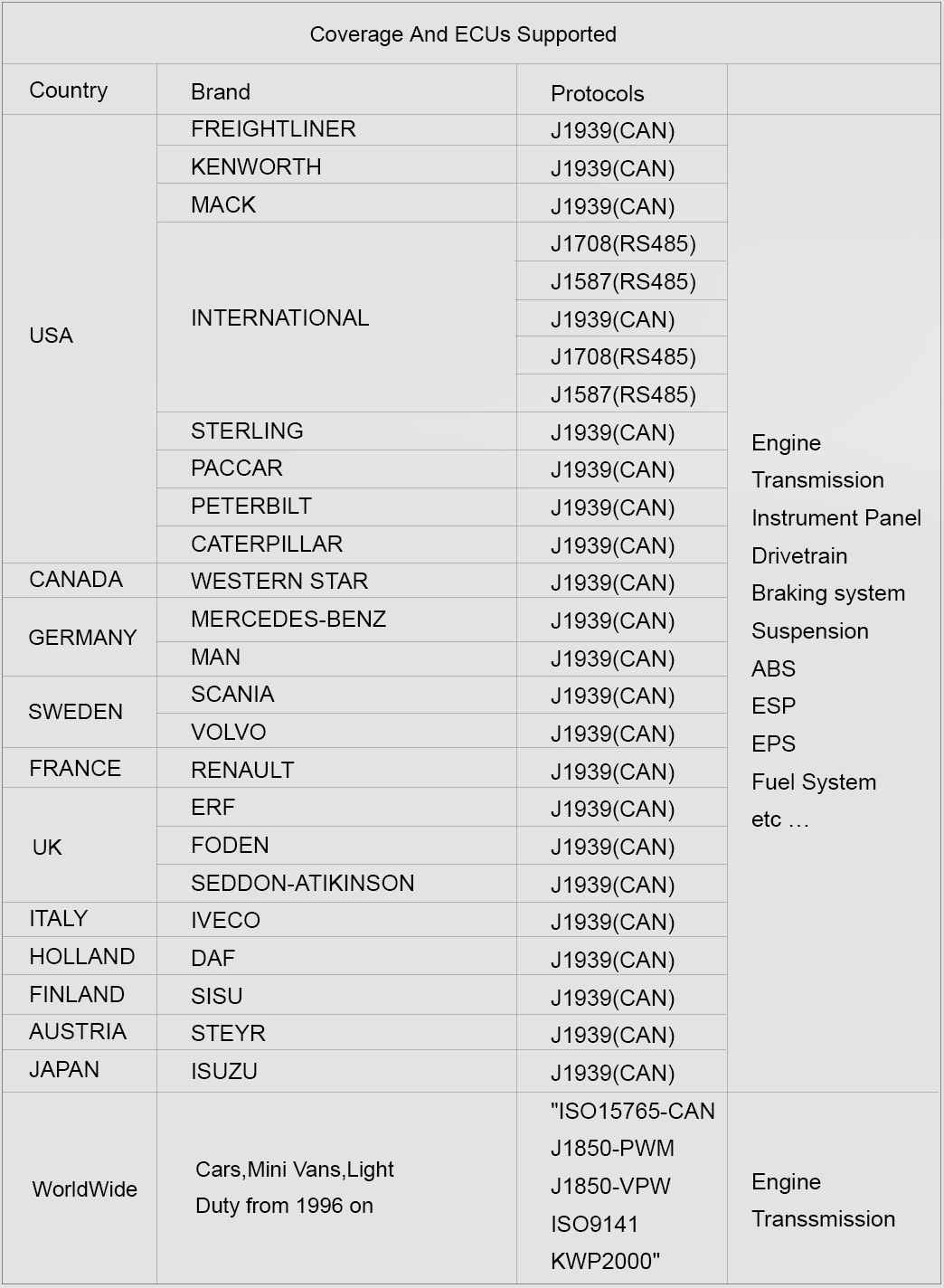

1. Support all heavy duty trucks in compliance with standard protocols (J1587, J1939 and J1708).
2. Work on all cars, mini vans and light duty vehicles (OBDII & CAN) from 1996 on and latest – European, American and Asian.
3. Support all OBDII protocols: CAN, J1850 PWM, J1850 VPW, ISO9141 and KWP2000
Uniquely featured with battery power monitor function.
4. Troubleshooting tips guide technicians to the root of problems faster, saving diagnosis and repair time.

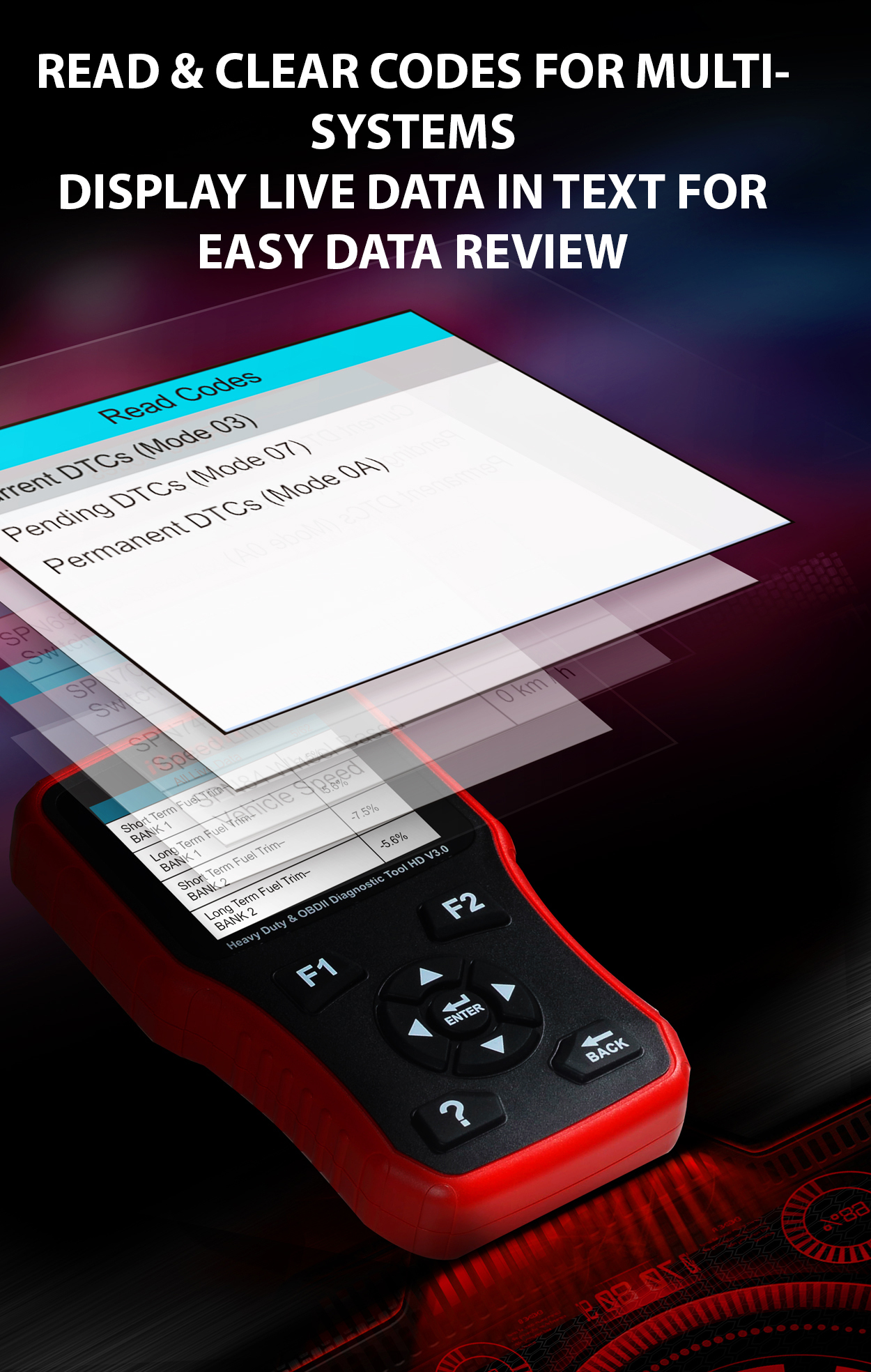

5. Read and erase generic codes (P0, P2, P3 and U0), manufacturer specific codes (P1, P3 and U1) and pending codes.
6. Easily determine the cause of the Check Engine Light (MIL) and turn off Check Engine Light (MIL), clear troubles codes and reset monitors.
7. Display DTC definition, freeze frame data, monitor and I/M readiness status (emissions) and vehicle information (VIN, CIN and CVN)
8. Read live O2 sensor test data.
9. Read PCM live data stream with graphic data Display.
10. Enhanced OBDII Mode 6.
11.Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
12. Multilingual menu and DTC definitions – English, German, Dutch, Spanish and French.
13. Software upgrade via computer

OBDII Function supports most of the OBDII/EOBD test modes including CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
OBDII Function works on most of 2001 and later European OBDII compliant PETROL vehicles and most of 2004 and later European OBDII compliant DIESEL vehicles.
