iCarsoft HD V3.0 Heavy Duty Truck & HGV Diagnostic Scanner Tool

iCarsoft HD V3.0 Heavy Duty Truck & HGV Diagnostic Scanner Tool

The iCarsoft HD V3.0 is a professional diagnostic scanner built for heavy-duty trucks, buses and commercial vehicles. It supports SAE J1939 & J1708 protocols for engines, transmissions, ABS and braking systems, plus full OBD-II capability for passenger cars.

Compatible with platforms including Cummins, Caterpillar, Detroit, Perkins, Maxxforce, Bendix, Wabash, Wabaco, Haldex, Allison, Eaton and more, the HD V3.0 provides deep system access and fault analysis to help you diagnose and repair efficiently.

Key highlights at a glance

• Full-system diagnostics – Engine, Transmission, ABS, Brakes, ESP/EPS, Fuel and more.
• Read & clear DTCs, view live data, freeze-frames & graphs.
• Supports SAE J1939 & J1708 heavy-duty communication standards.
• Battery voltage monitoring and real-time data logging.
• Multi-language: English, German, Dutch, Spanish, French.
• Free lifetime updates via Windows PC software.

Professional Multi-Systems HD Tool
HD V3.0 2-in-1 code reader for heavy trucks & cars. Supports SAE J1939 & J1708 full-system scans (Engine, ABS, Transmission & more). Fits Cummins, Caterpillar, Volvo, DAF and others.

Strong Hardware & Software
Pre-installed software, plug-and-play setup and 2.8″ LCD. Simple button navigation and multi-language support.

Lifelong Free Online Update
Enjoy free software updates for life - no fees, Windows OS only.

Real-Time Graphic Live Data
Stream and view sensor data with built-in DTC lookup library.

Full OBD2 Test Modes
Includes all 10 modes – Read/Erase Codes, Live Data, Freeze Frame & more.

DTC Library & Report Printing
On-screen code definitions, save/share/print diagnostic reports.

Product Specifications
2.8″ LCD · 150 mA@12 V · 0–50 °C · 1.8 W · 142×90×222.5 mm · 9–28 V.

Hardware & Specifications

• Display: 2.8″ TFT LCD (320 × 240)
• Operating Current: 150 mA @ 12 V (Typical)
• Power Consumption: 1.8 W (Typical)
• Operating Voltage: 9–28 V
• Operating Temperature: 0–50 °C
• Storage Temperature: −20–70 °C
• Dimensions (L×W×H): 142 × 90 × 222.5 mm
• Supported Protocols: SAE J1939 & J1708
• Updates: Lifetime free via Windows PC
• Warranty: 1 Year (UK & EU)

What’s in the box

Includes: HD V3.0 main unit, truck diagnostic connector, OBD main cable, storage bag and user manual.

Box

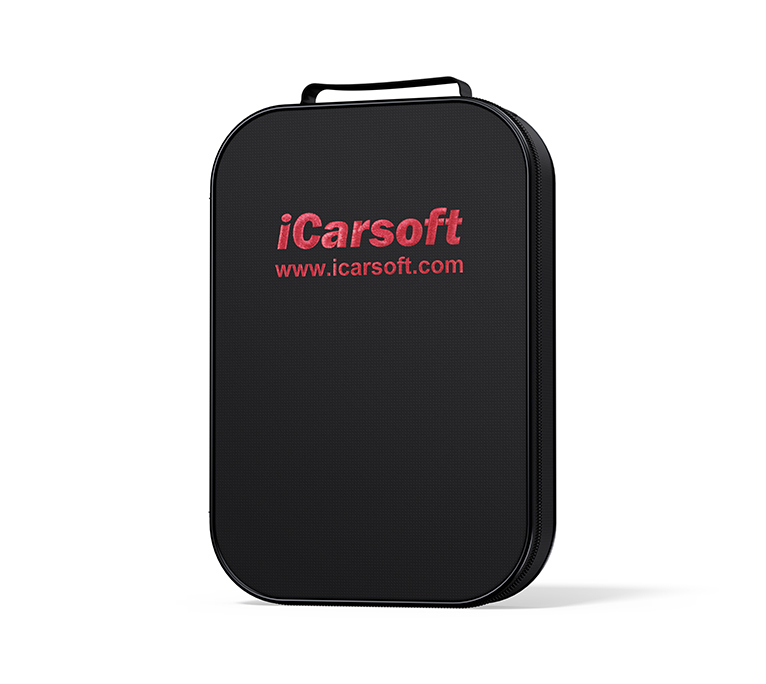

Carry Case

Truck Connector

OBD Cable

User Manual

Updates, warranty & support

• Software updates: Lifetime free via Windows PC.
• Warranty: 1-year UK warranty from HIDS-DIRECT.
• Support: UK-based technical assistance for coverage and setup.

Feature availability is vehicle-dependent. If unsure, contact HIDS-DIRECT with your reg/VIN for a quick coverage check.
