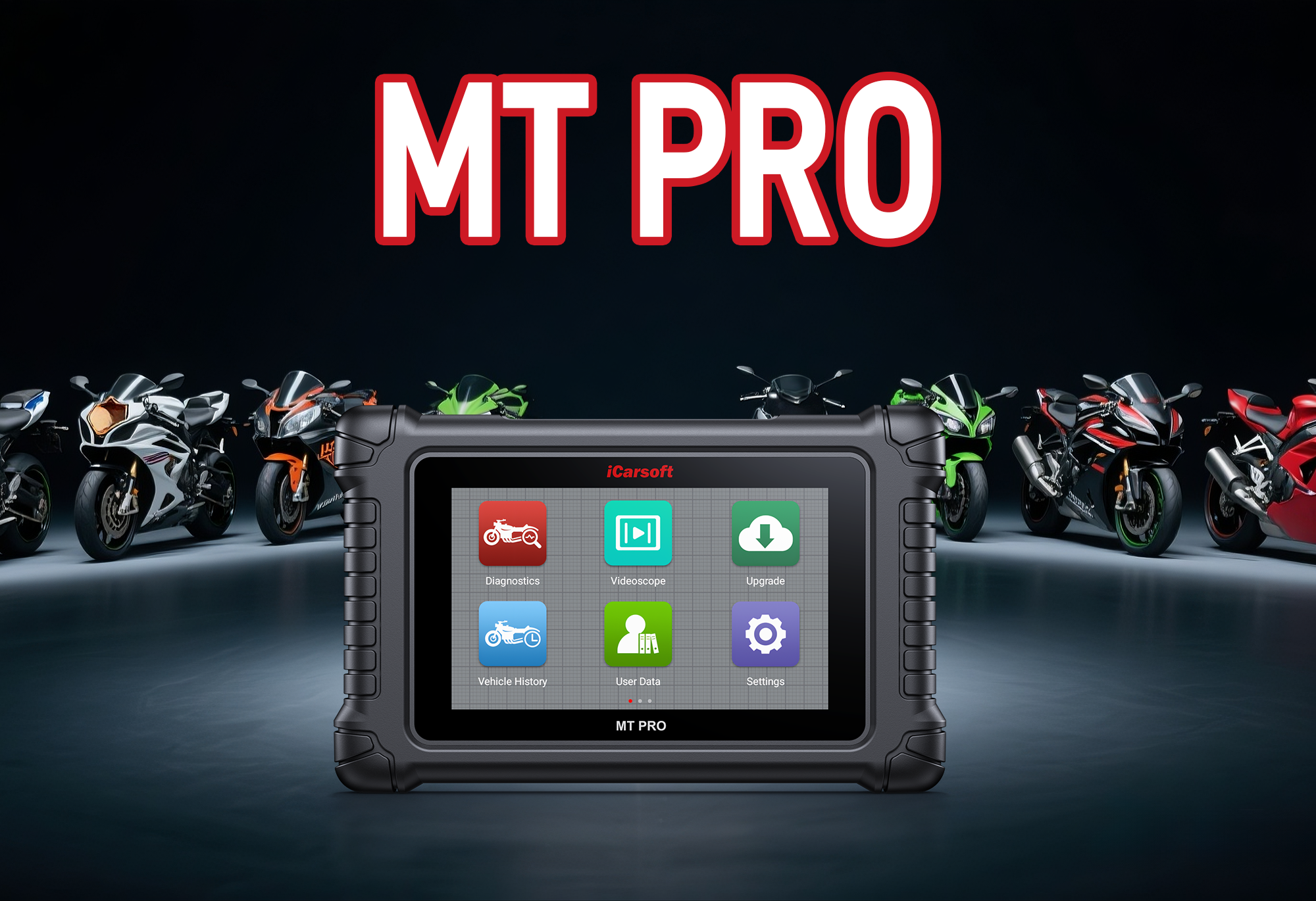

iCarsoft MT PRO Professional Multi-Brand Motorcycle Diagnostic Tool & Scanner

iCarsoft MT PRO - Professional Multi-Systems Multi-Brand Motorcycle Diagnostic Tool

The iCarsoft MT PRO is a portable, pro-grade scanner for 100+ motorcycle brands, combining a bright 7-inch touchscreen with full-system diagnostics, bi-directional tests, guided service functions and lifetime free updates. Read/clear codes, view live data, run actuations and complete key service tasks quickly - whether you’re an enthusiast or workshop tech.

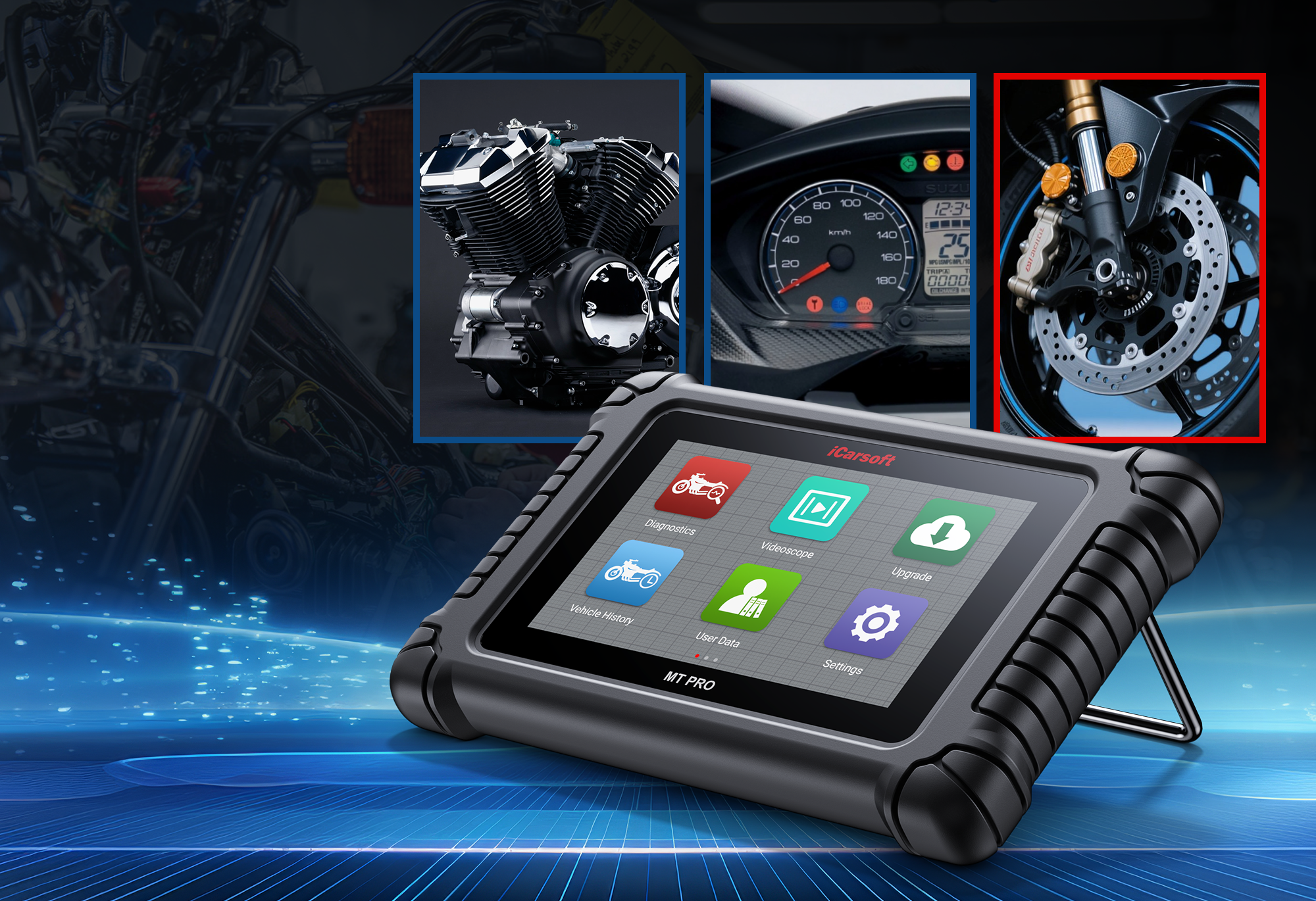

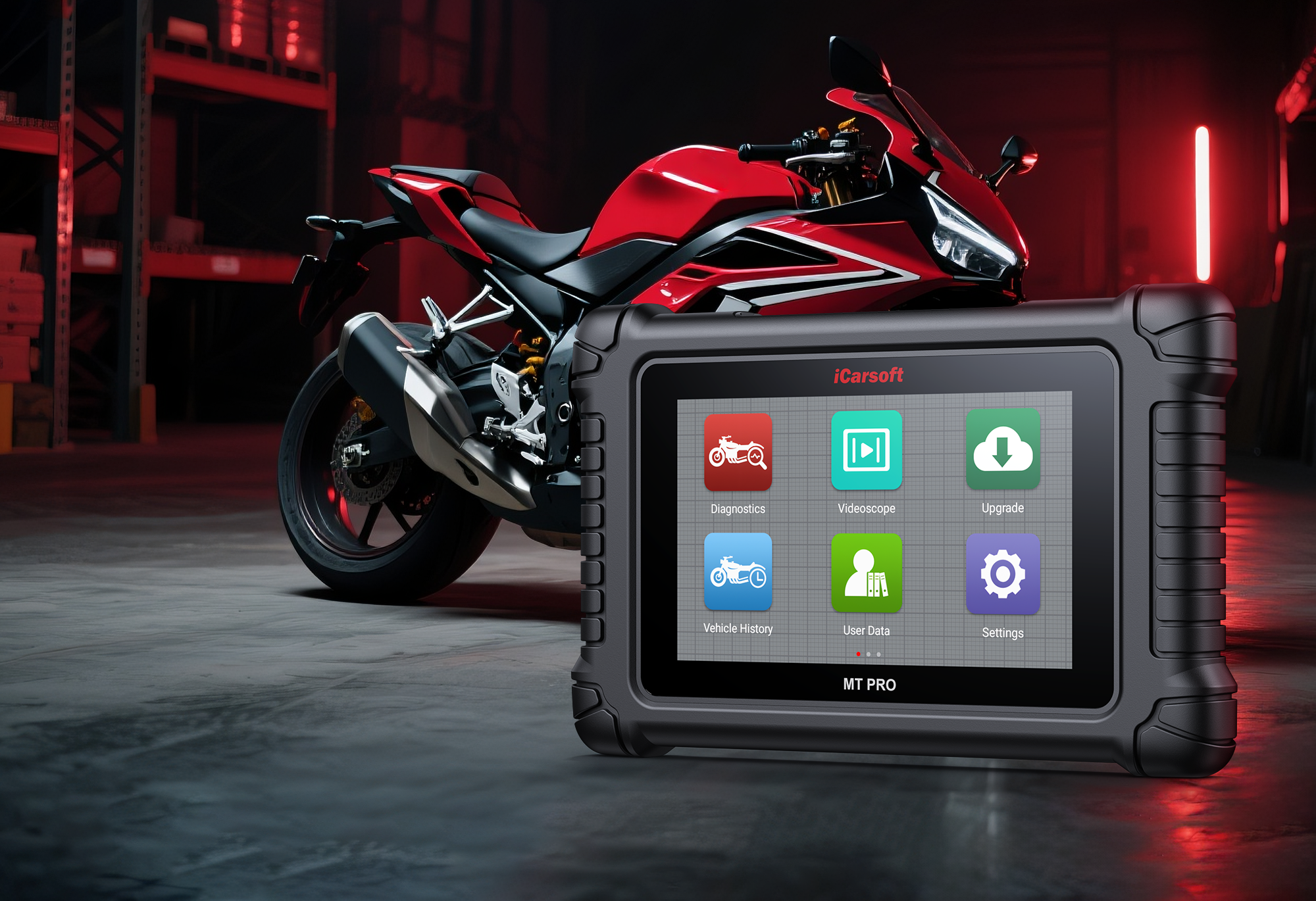

Ultra-portable 7″ tablet - clear UI, silicone keys, quick access to live data, codes and tests.

Strong hardware & software - 7″ LCD, 1GB+32GB, 5000mAh. Fast AutoVIN. Multi-language: EN, DE, FR, NL, ES, CS, SV, RU, HU, NO, PT, IT, PL, DA, FI.

Motorcycle coverage - BMW, KTM, Ducati, Benelli, Piaggio, Aprilia, Vespa, Moto Guzzi, Triumph, Peugeot, Harley-Davidson, Yamaha, Kawasaki, Honda, Suzuki, KYMCO, Hartford, PGO, SYM, Aeon, Adiva.

Lifetime free updates - one-click Wi-Fi updates keep coverage fresh.

Bi-directional tests - command components to confirm faults fast.

All-systems diagnosis - engine, ABS and full electronics coverage.

5 hot service functions - Oil reset, ETC, ABS bleed, Suspension, Idle.

Live data & DTC help - graph streams, view code definitions, save reports.

Full OBD2 test modes - all 10 modes: Read/Erase codes, Mode 6/8, O2 test, live data, freeze frame, DTC lookup. One-click checks & MIL reset.

Spec-built for workshops - Android OS, Wi-Fi, Bluetooth, long battery life.

What the MT PRO can do

Run complete all-systems scans, read and clear DTCs, view live data, and perform bi-directional actuation tests to command fans, pumps, valves and more. Use freeze frame to capture conditions when a fault was logged and generate clear diagnostic reports that can be saved, shared or printed.

The MT PRO’s service functions cover daily maintenance: Oil reset, Electronic Throttle Control, ABS bleeding, Electronic suspension calibration and Engine idle adjustment. Model coverage spans 100+ manufacturers with quick auto-identify of model/year.*

*Functions vary by motorcycle model, year and ECU. Ask us to confirm specifics before purchase.

Hardware & specifications

• OS: Android 8.1.0  |  CPU: Quad-Core 1.3 GHz
• Memory/Storage: 1 GB RAM / 32 GB ROM
• Display: 7-inch LCD capacitive touchscreen (1024×600)
• Connectivity: USB 2.0, Wi-Fi (2.4 GHz), Bluetooth, OBDII
• Battery: 3.7 V / 5000 mAh Li-poly (≈5 hours typical), charge 5 V / 2 A
• Operating Temp: 0–40 °C  |  Storage: −20–70 °C  |  Humidity: 5–95% RH
• Size/Weight: 252 × 160 × 34.4 mm, ≈750 g
• Protocols (selection): ISO9141-2, ISO14230-2, ISO15765, KWP2000, CAN, LIN, ISO11898, ISO11519, UART, TP2.0, TP1.6, Honda Diag-H.

What’s in the box

Kit contents (images below) sorted alphabetically by file name. Contents may vary by region.

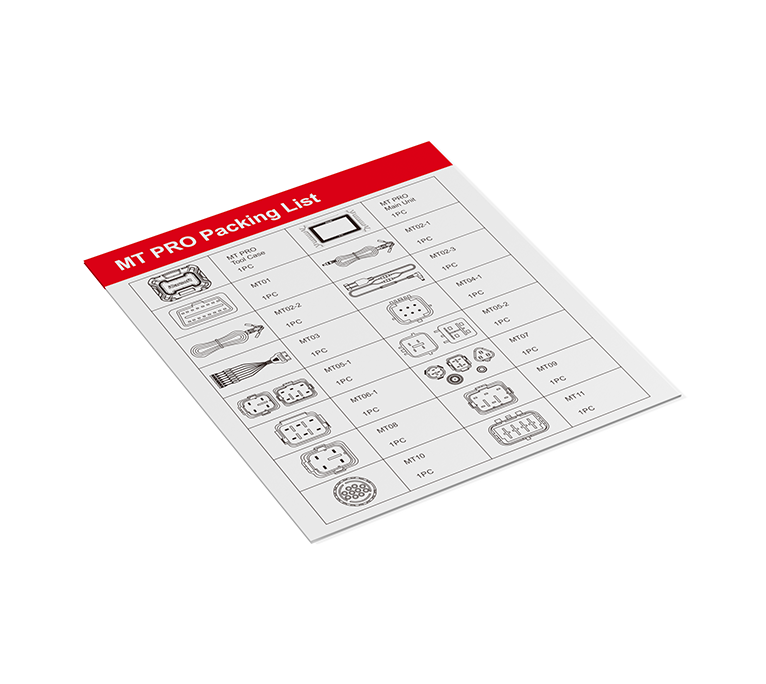

Packing List

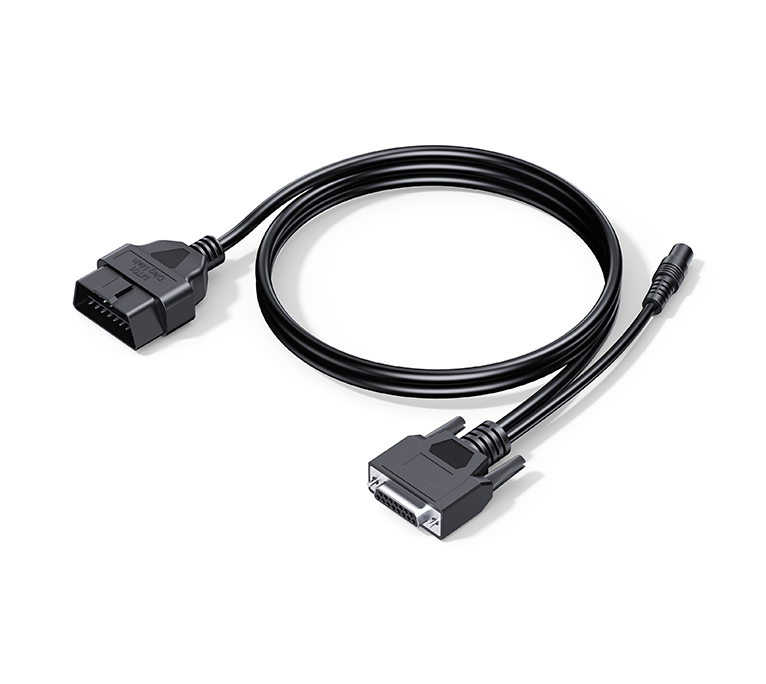

mto1

mto2-1

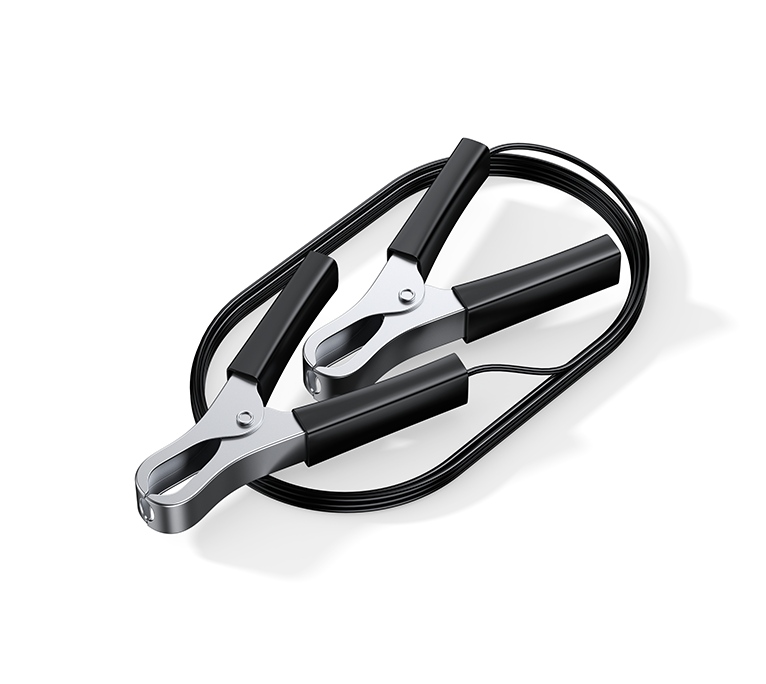

mto2-2

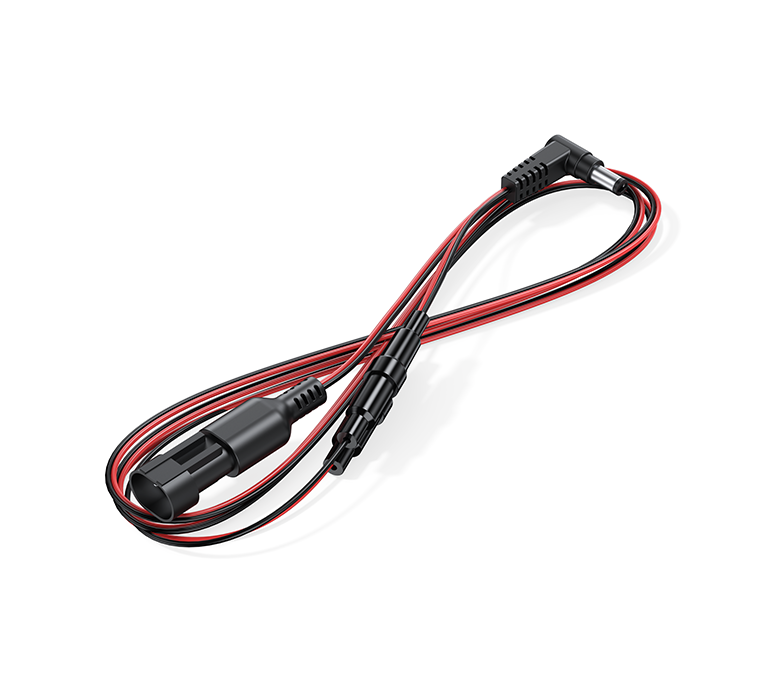

mto2-3

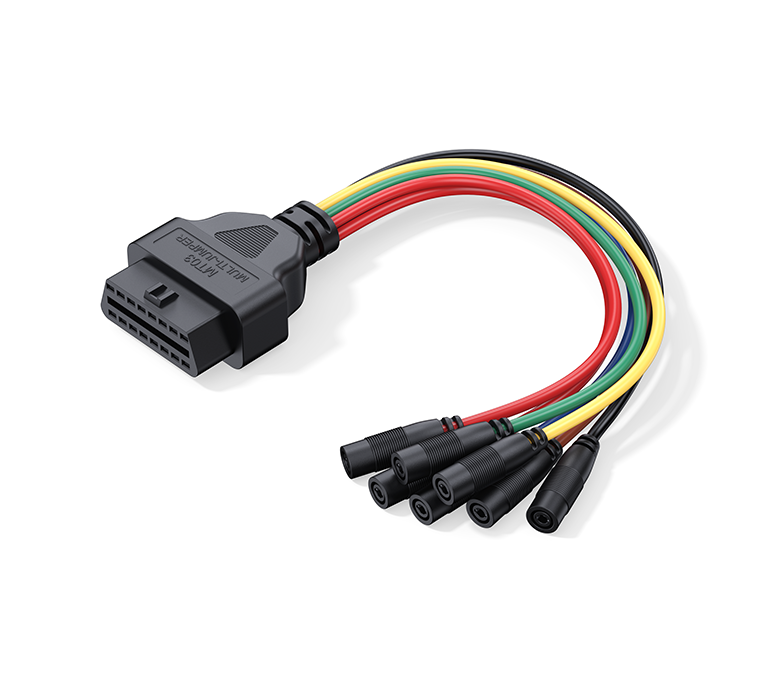

mto3

mt04-1

mt05-1

mt05-2

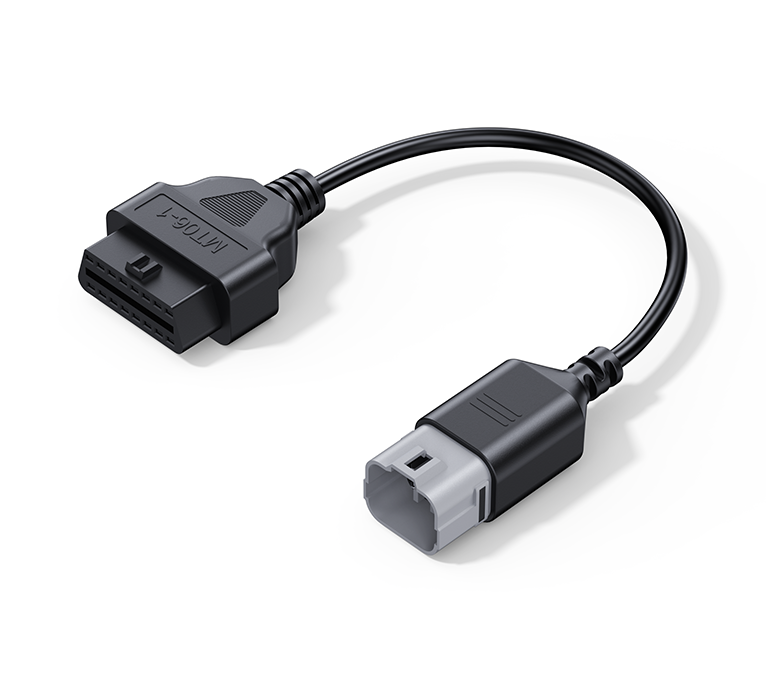

mt06-1

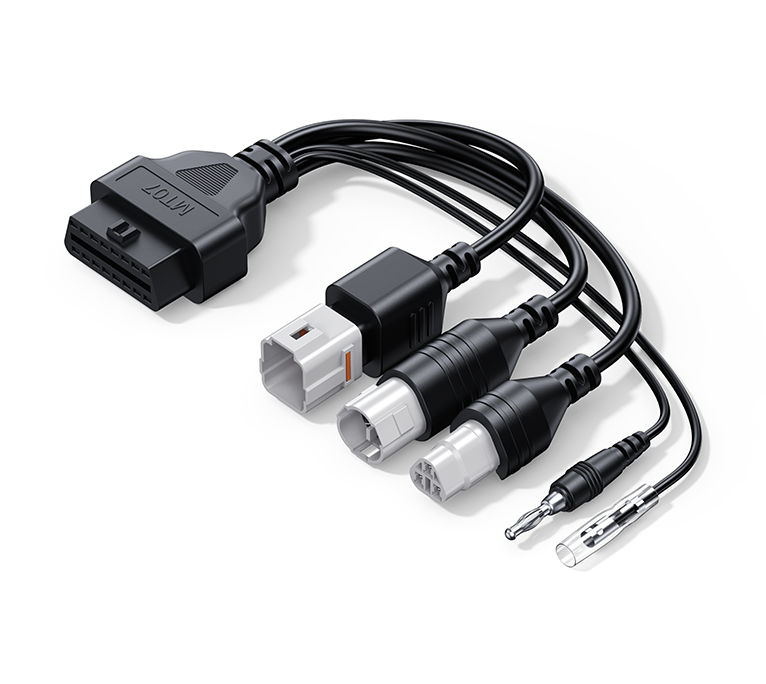

mt07

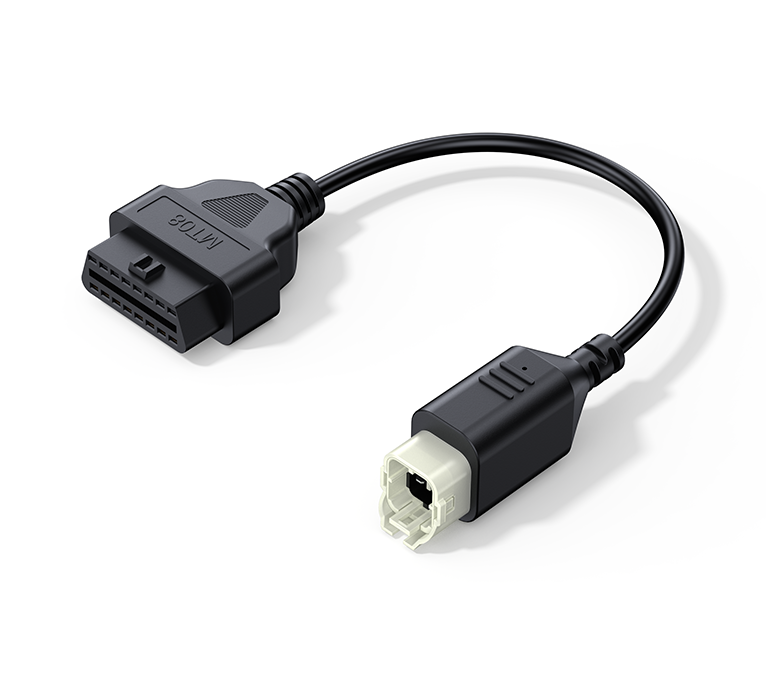

mt08

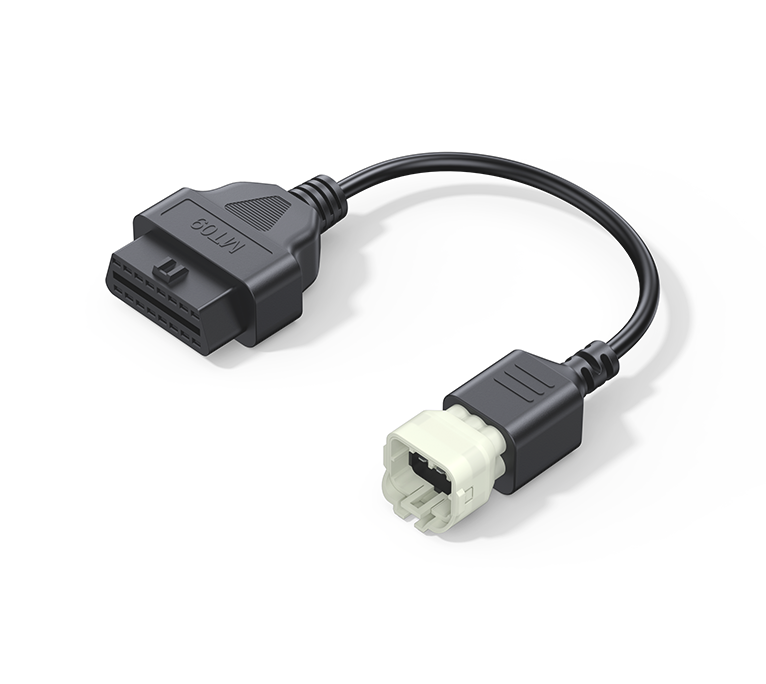

mt09

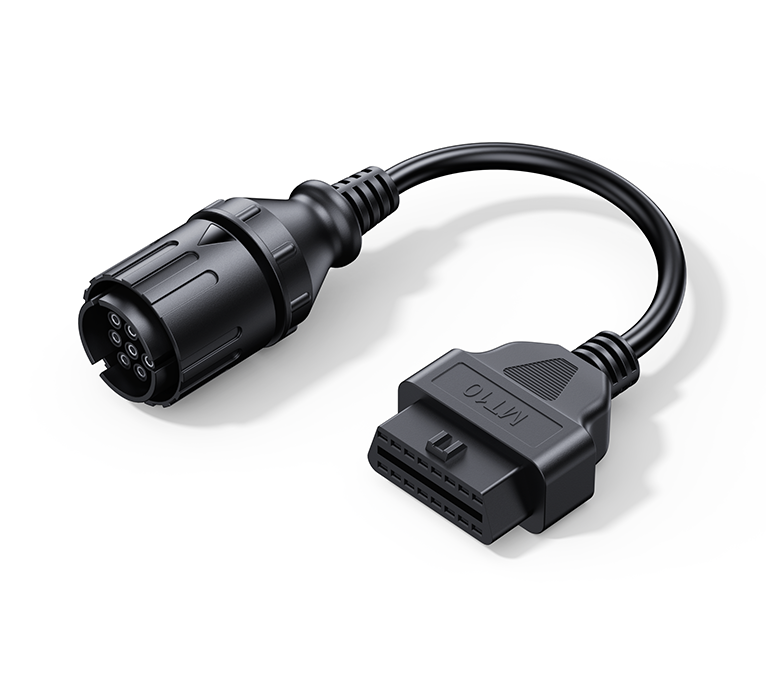

mt10

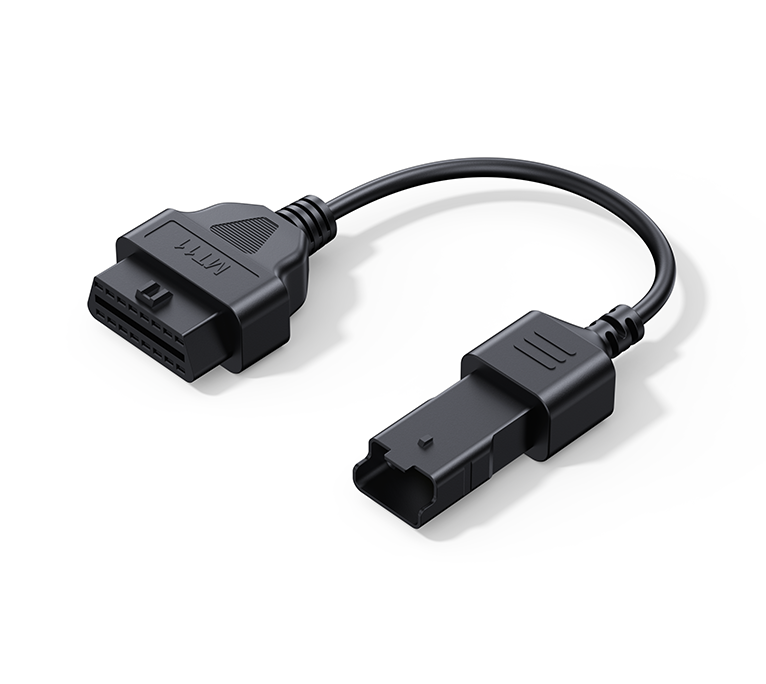

mt11

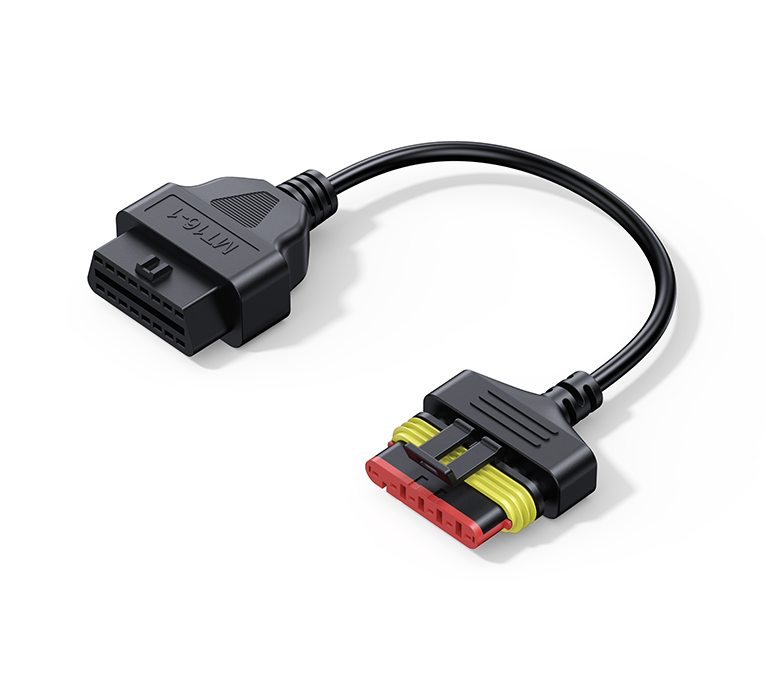

mt16-1

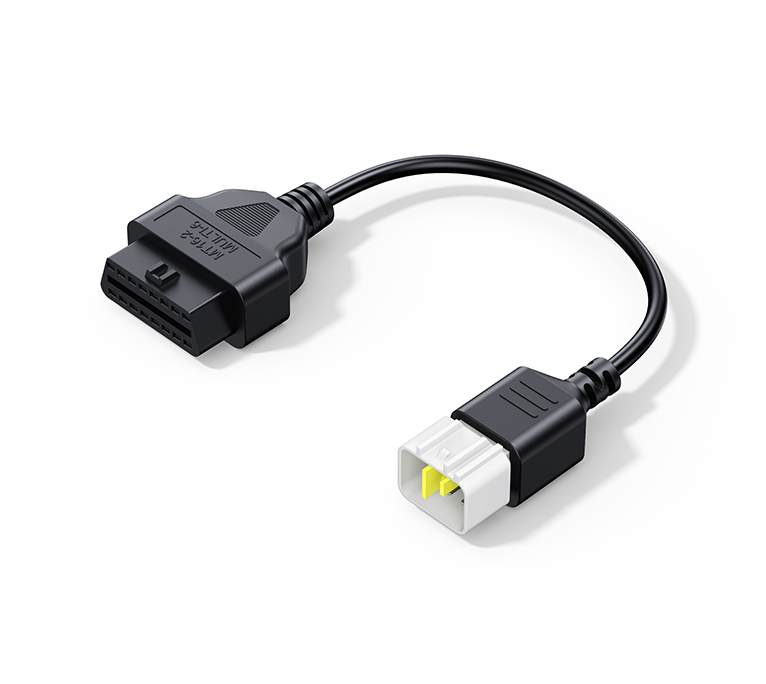

mt16-2

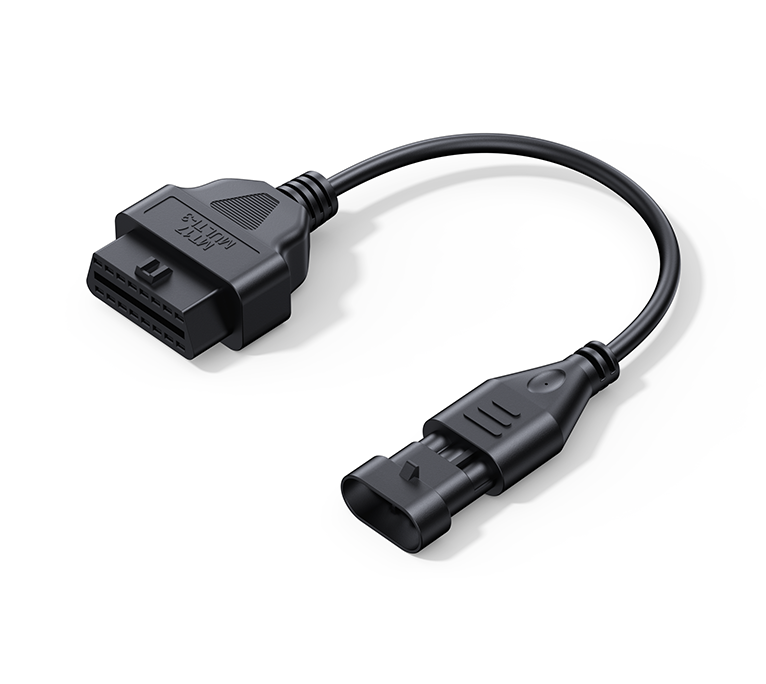

mt17

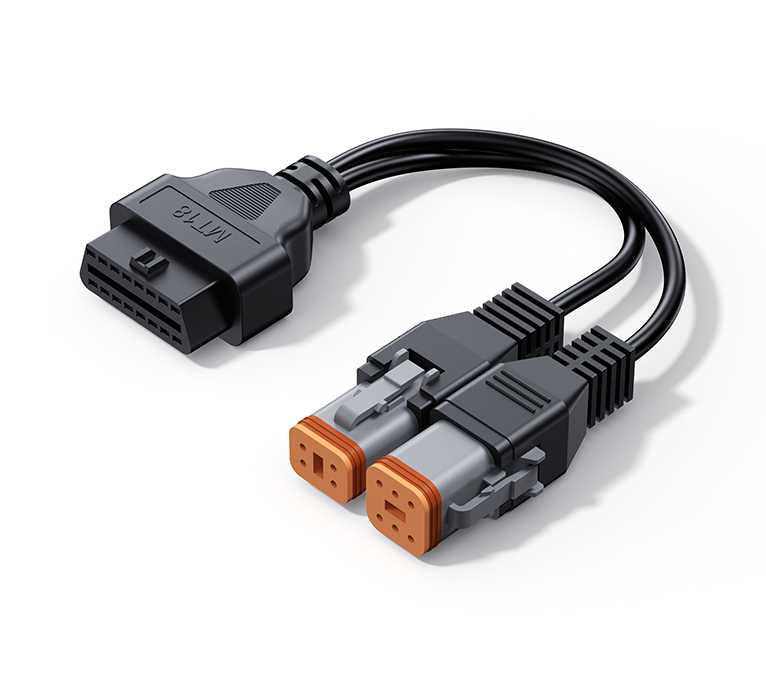

mt18

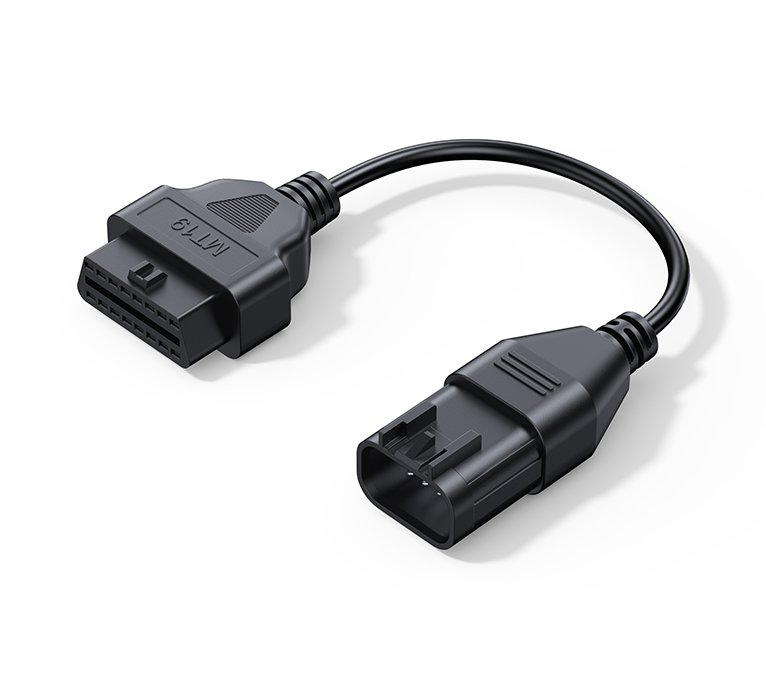

mt19

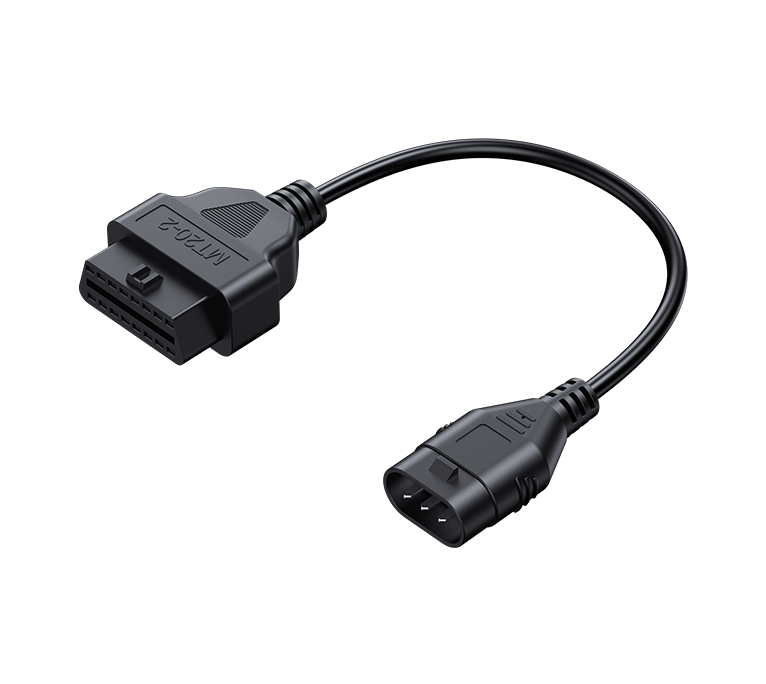

mt20-2

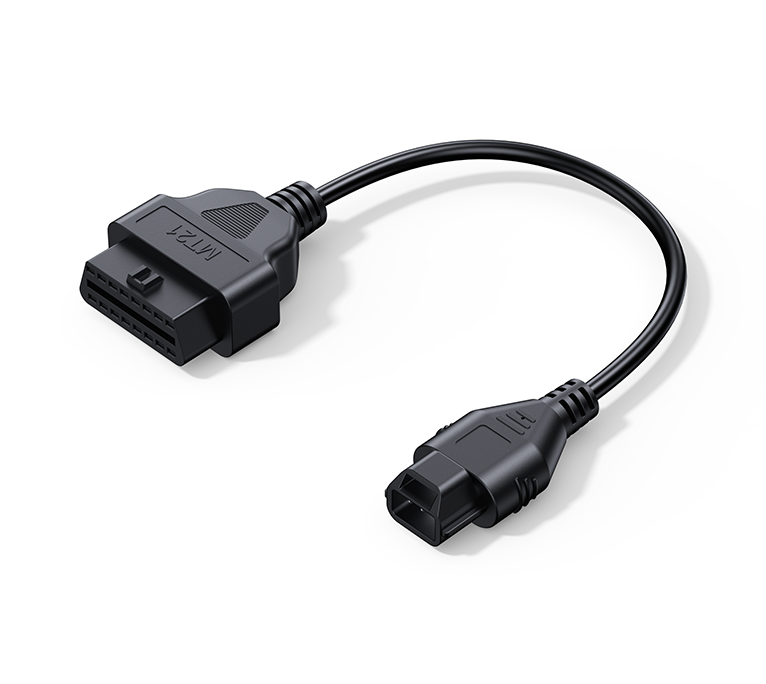

mt21

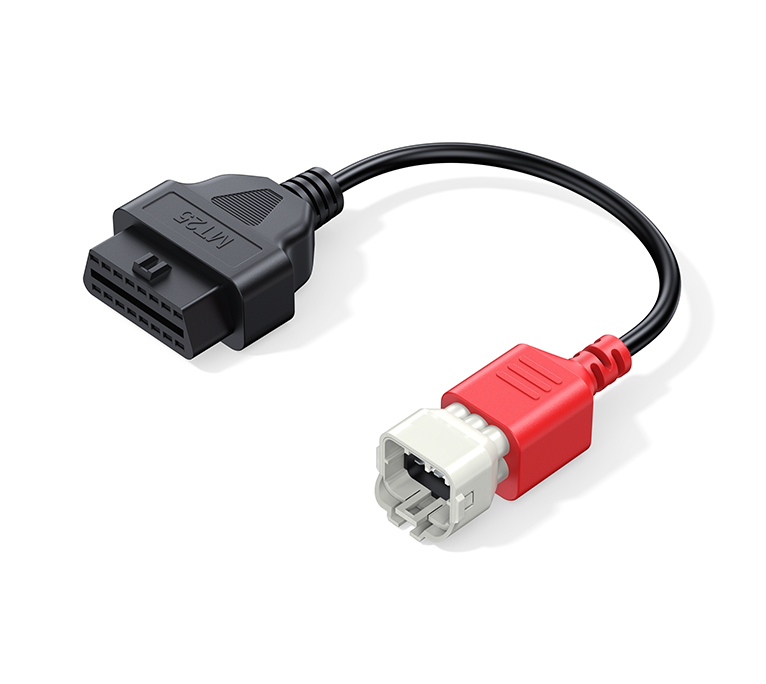

mt25

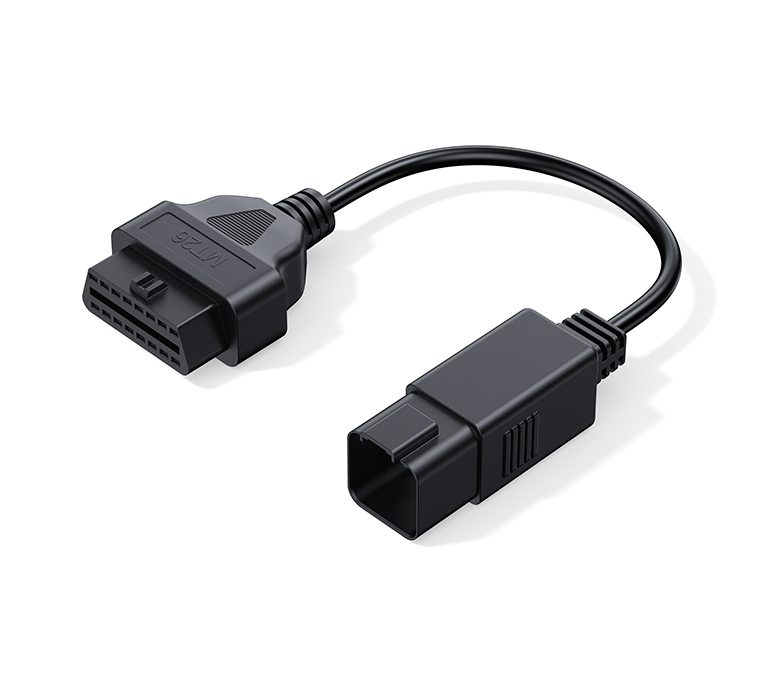

mt26

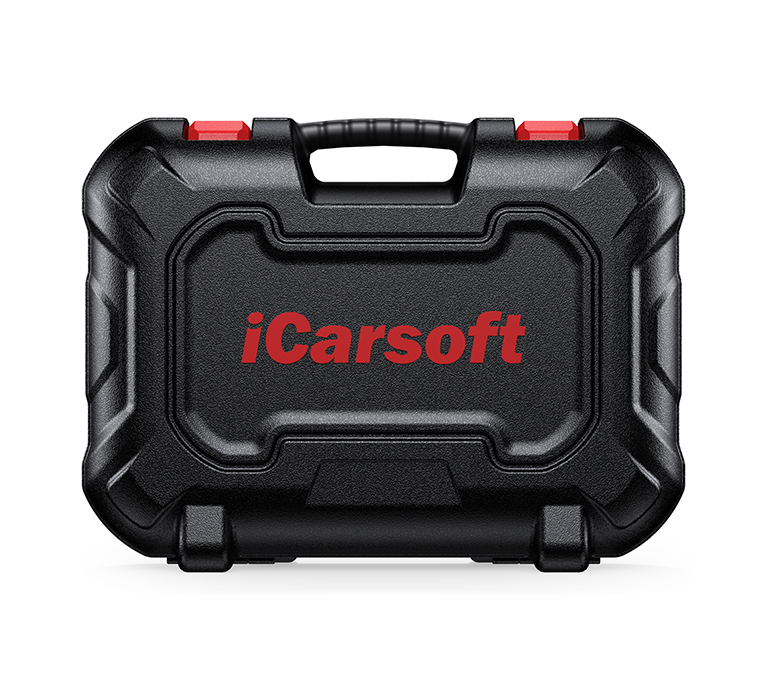

packaging1

scanner1

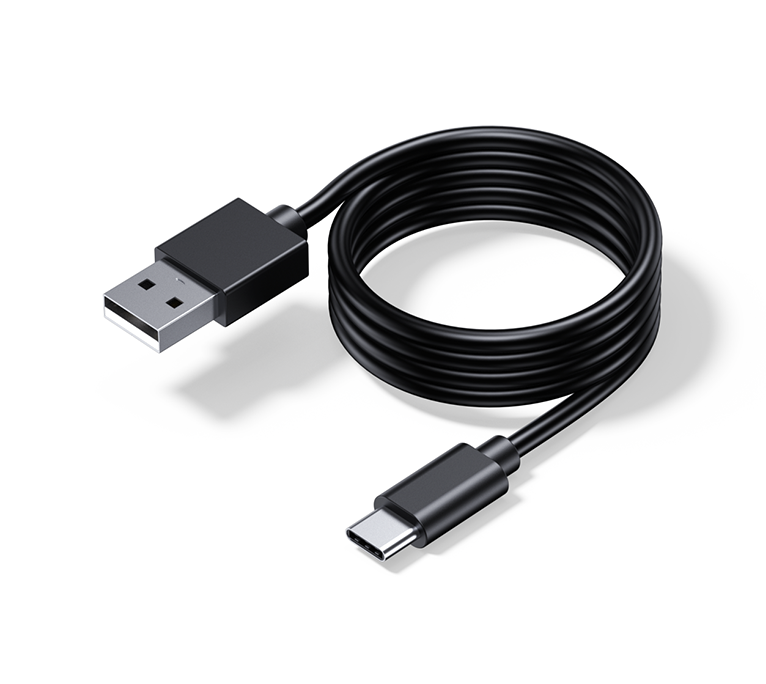

usb1

user-manual-2



Coverage and functions vary by motorcycle make, model and year. Images for illustration; kit contents may vary.
