iCarsoft MT V6 Plus Motorcycle Diagnostic Tool – 21 Brands

iCarsoft MT V6 Plus Motorcycle Diagnostic Tool - 21 Brands

All-system diagnostics for 21 brands with actuation tests and service functions

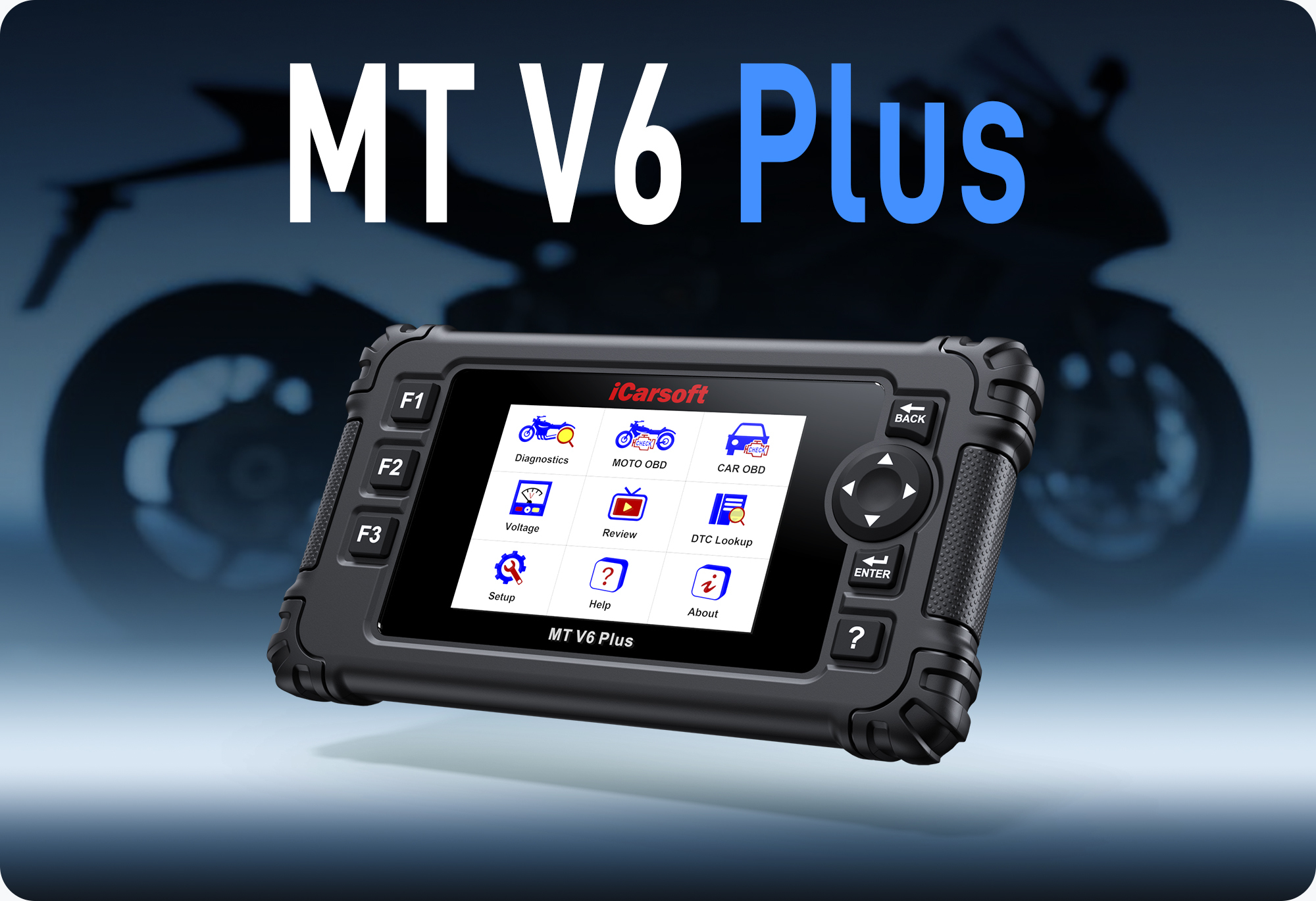

iCarsoft MT V6 Plus is the latest multi-brand motorcycle diagnostic tool designed by iCarsoft in 2025. It reads and clears trouble codes on systems such as engine, transmission, ABS and meter, and supports OBDII ten modes, live data, full ECU diagnosis, AutoVIN, actuation or bi-directional tests, freeze frame and battery test. Lifetime software updates included.

Who is it for?

Riders and technicians who want fast, reliable diagnostics without complexity - engine, ABS, instrument panel and more across 21 motorcycle brands.

Key capabilities

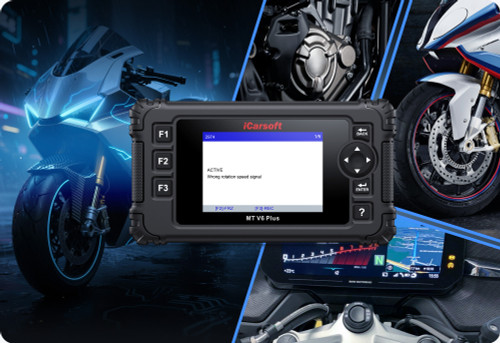

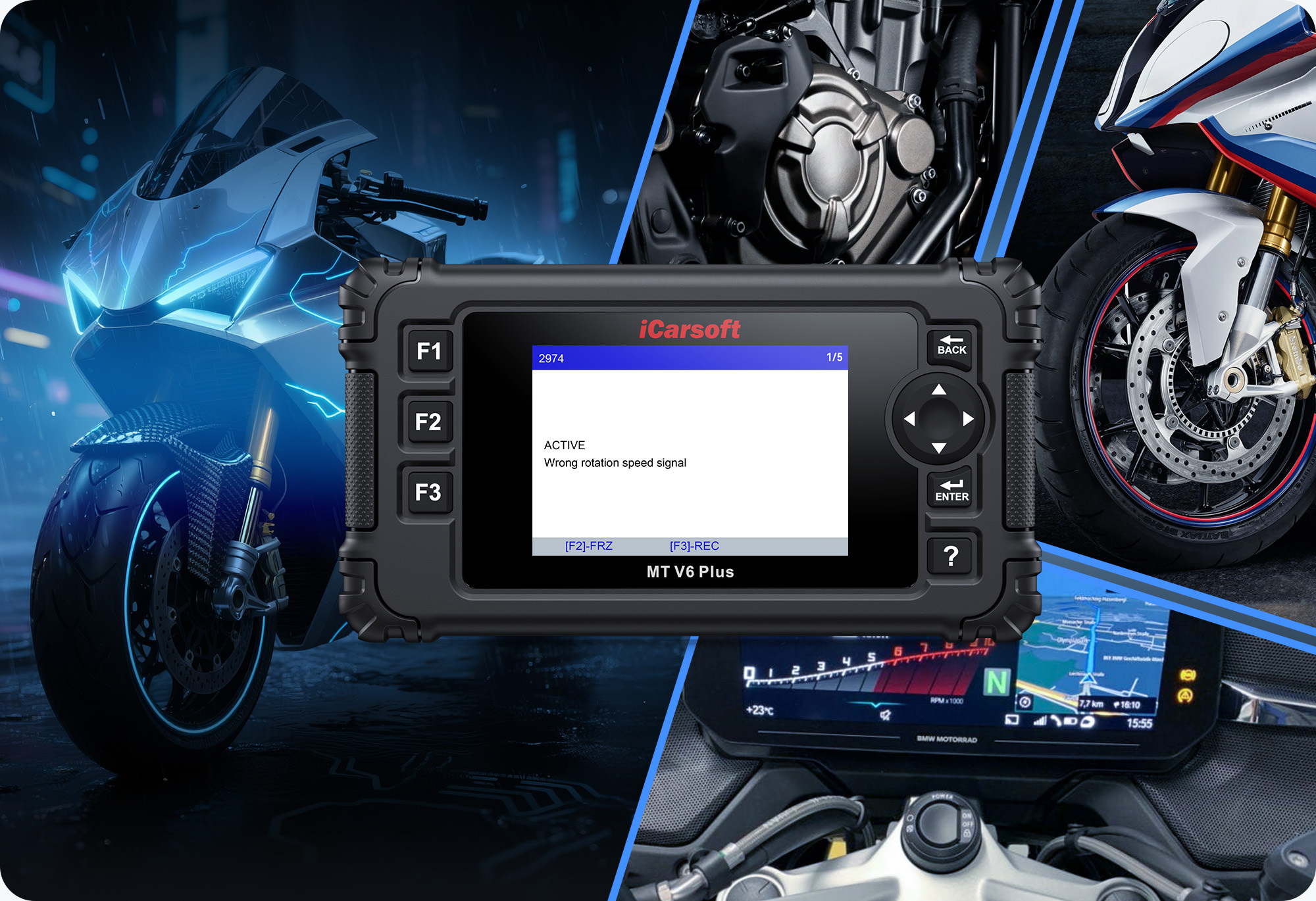

• All-system diagnostics across engine, ABS, meter and more, with DTC read and clear, ECU info and freeze frame.
• Actuation or bi-directional tests to access subsystem and component tests where supported.
• Live data with real-time graphing and built-in DTC lookup library.
• Battery test and useful service tools.
• Full OBD2 modes including Mode 6 and Mode 8 where supported.
• AutoVIN for quick model and year identification.
• Lifetime updates with no ongoing fees.

Supported brands (21)

BMW, KTM, Ducati, Benelli, Piaggio, Aprilia, Vespa, Moto Guzzi, Triumph, Peugeot, Harley, Yamaha, Kawasaki, Honda, Suzuki, KYMCO, Hartford, PGO, SYM, Aeon, Adiva. Ask us to confirm functions for your bike’s year and model.

Feature Highlights

Professional multi-systems motorcycle diagnostics

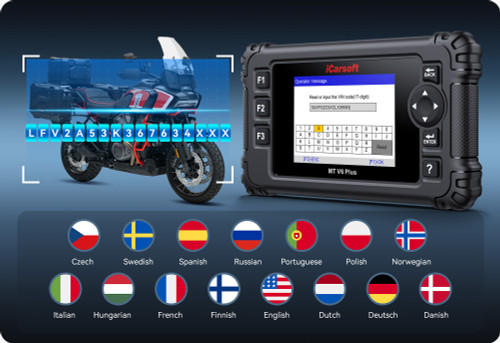

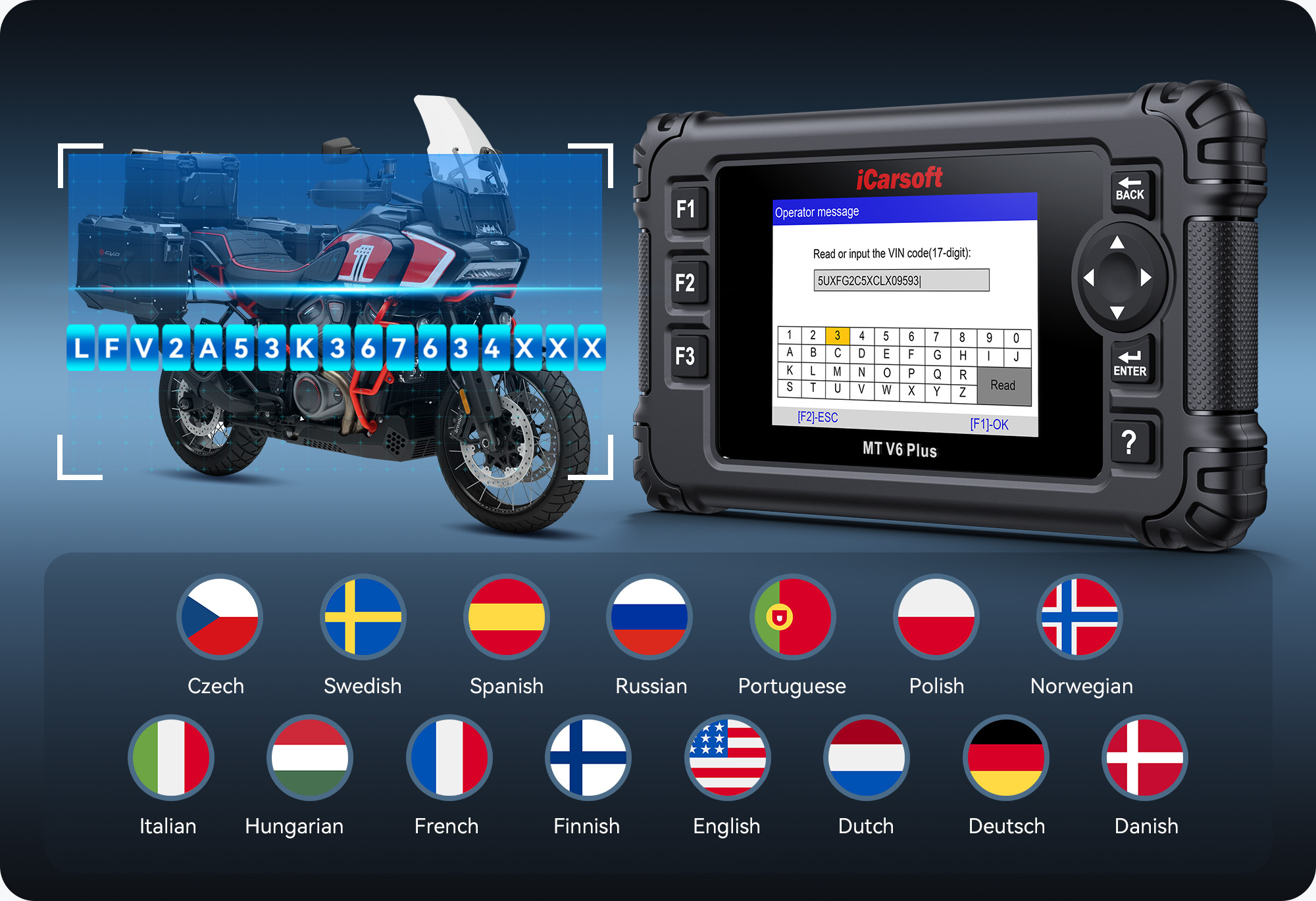

Strong hardware, AutoVIN, multi-language

Coverage for 21 motorcycle brands

Lifetime online updates

All-systems diagnosis: engine, ABS, instruments and more

5 hot service functions
Oil Reset, Electronic Throttle, ABS Bleeding, Electronic Suspension, Engine Idle (availability varies).

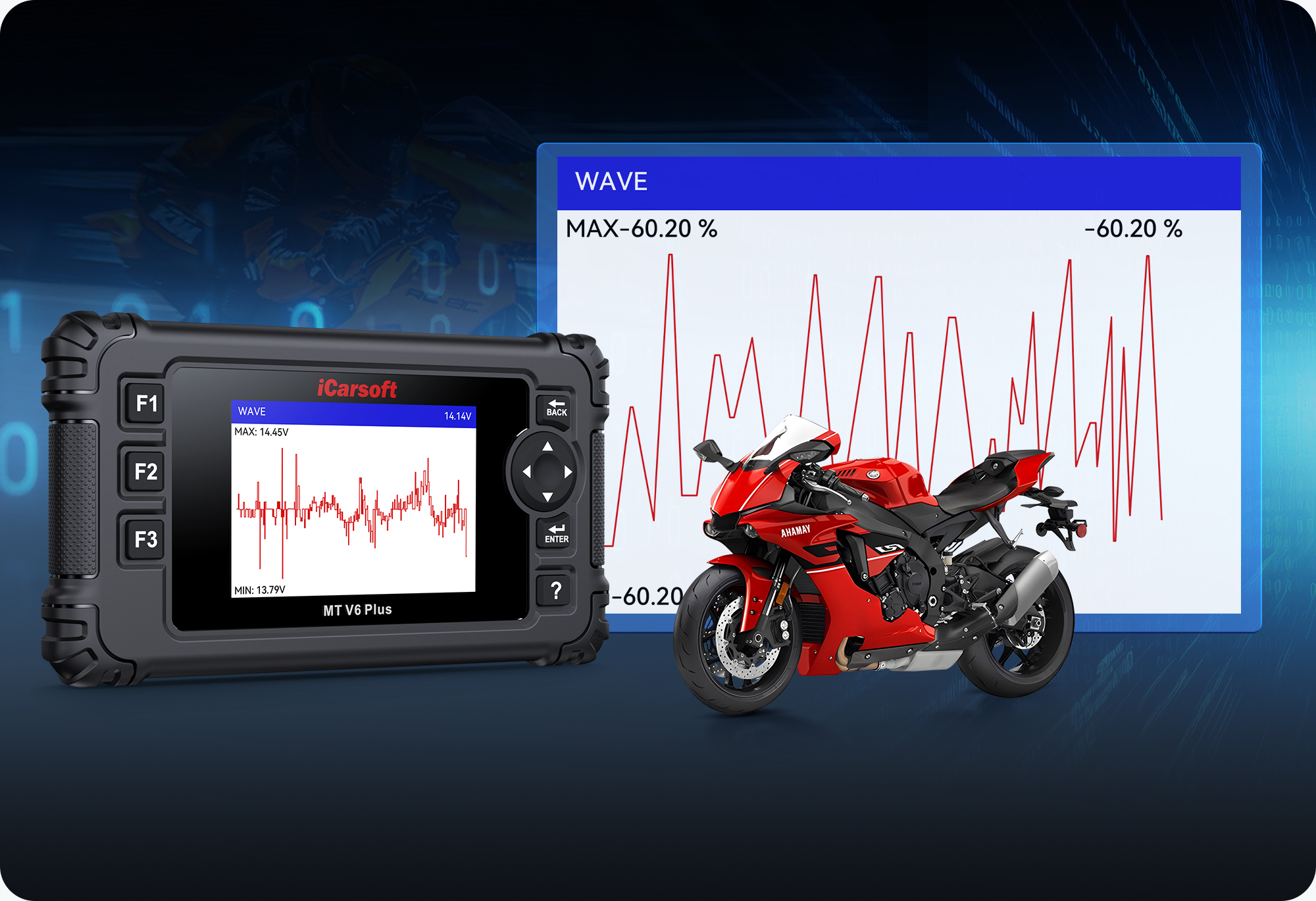

Real-time graphic live data with DTC lookup.

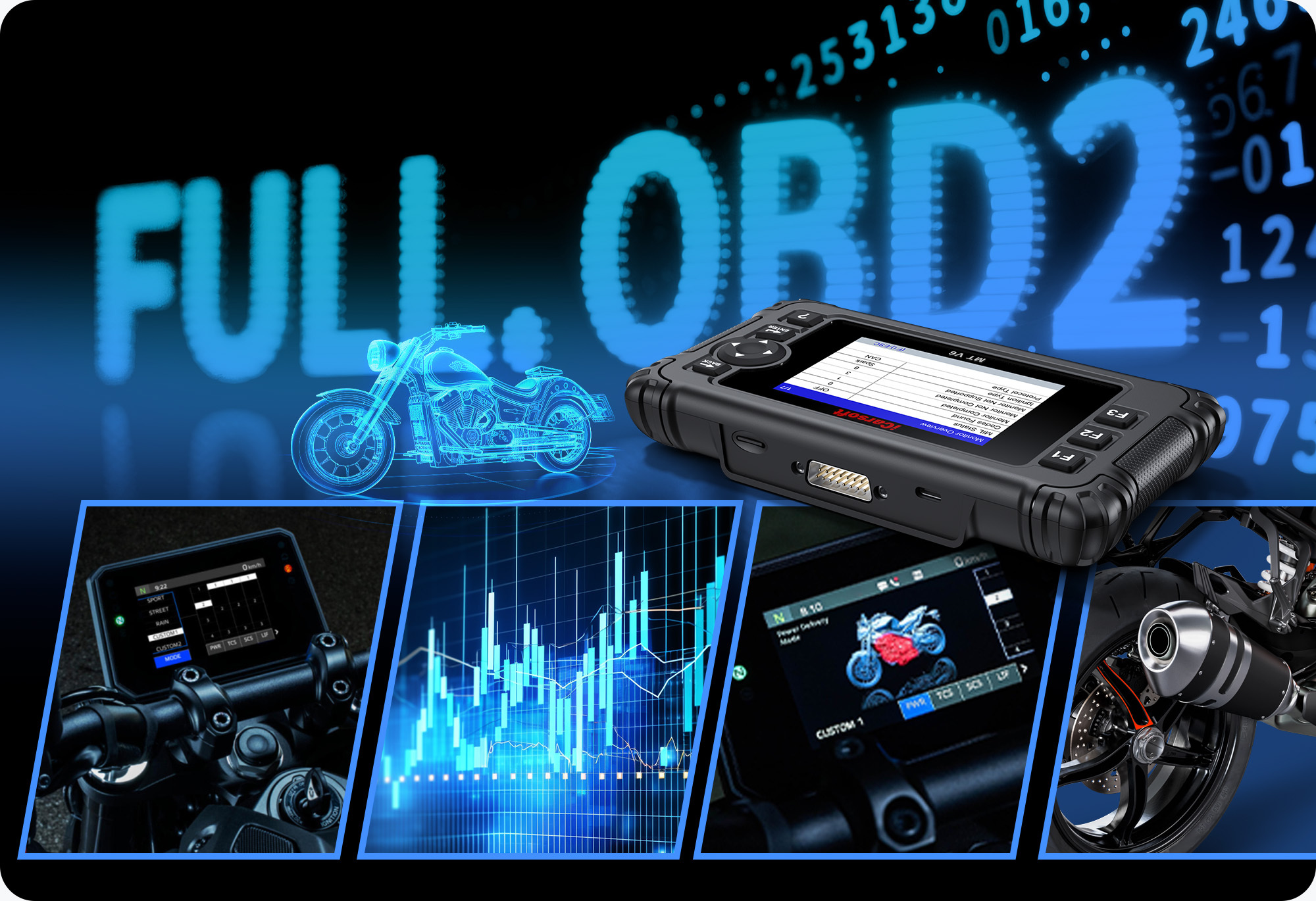

Full OBD2 test modes including Mode 6 and Mode 8, O2 tests and freeze frame.

History and report printing with Feedback function.

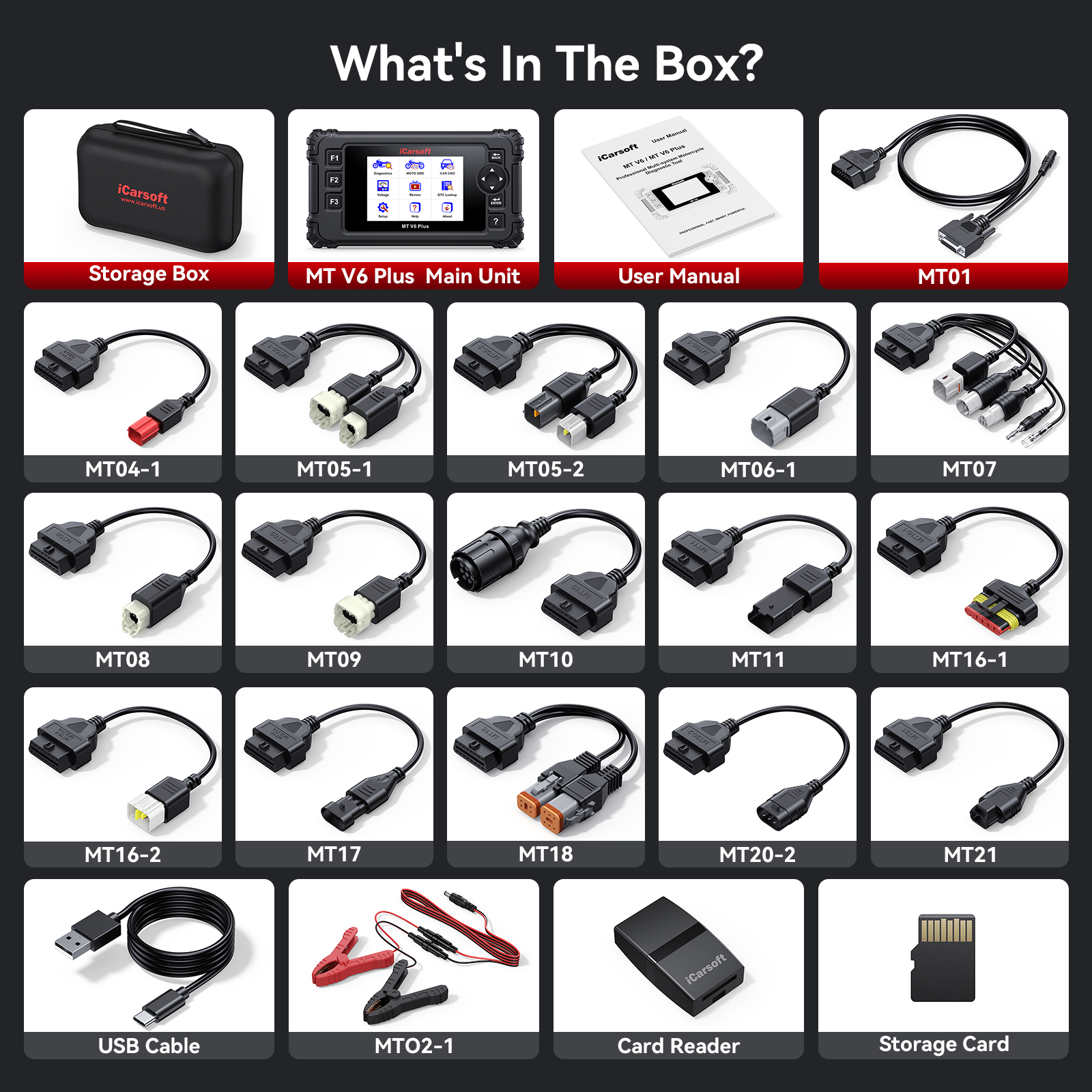

What is in the box

• MT V6 Plus main unit, EVA carry case
• Main cable, USB Type-C, card reader, user’s manual
• Diagnostic cables: MT02-1, MT04-1, MT05-1, MT05-2, MT06-1, MT07, MT08, MT09, MT10, MT11, MT16-1, MT16-2, MT17, MT18, MT20-2, MT21

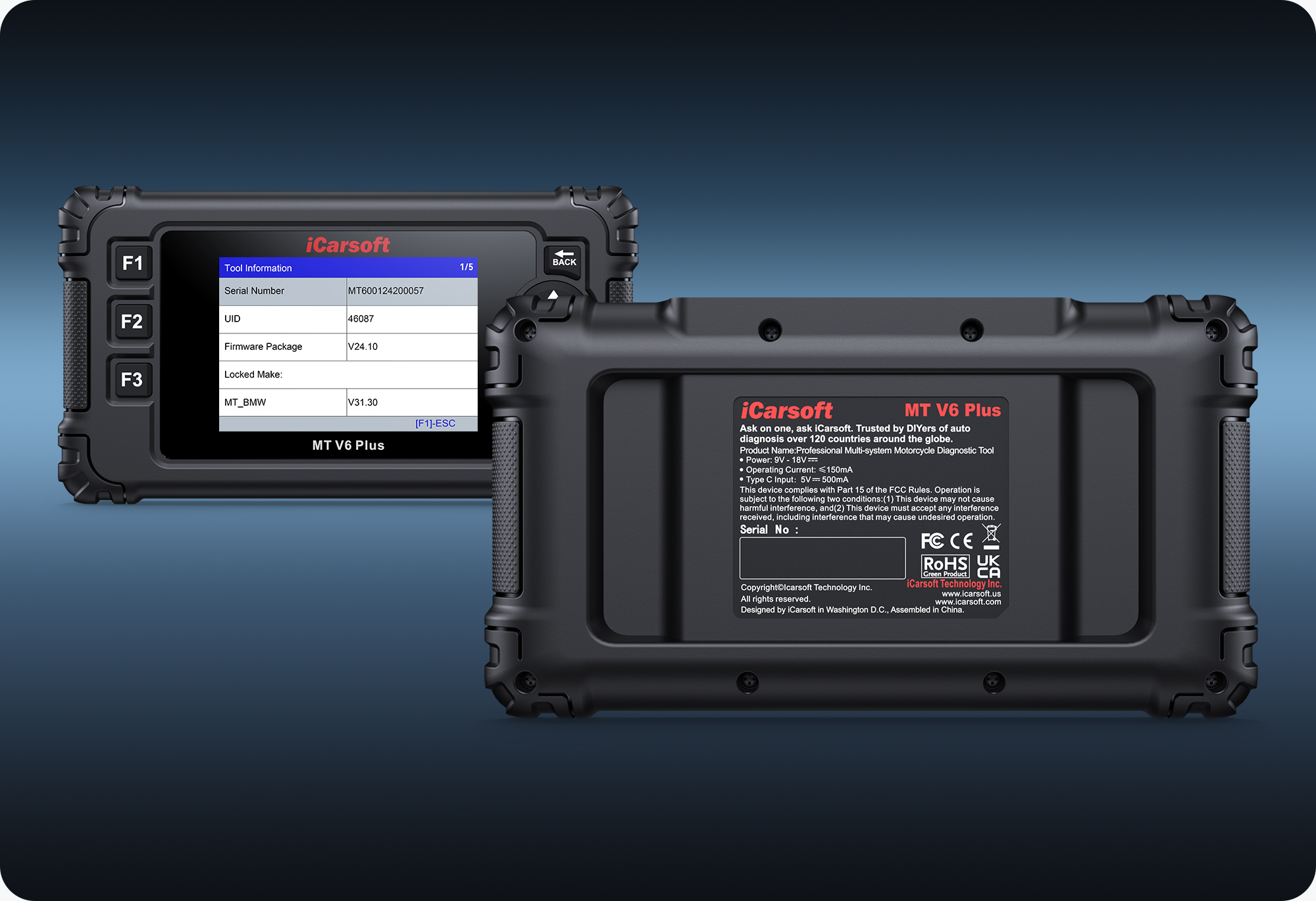

Tech specs

• Display: 3.95 inch TFT LCD (480 x 320)
• Operating voltage: 9-18 V
• Operating current: 150 mA @ 12 V (typical)
• Power consumption: 1.8 W (typical)
• Operating temperature: 0-50 °C
• Storage temperature: -20-70 °C
• Dimensions: 193 x 106 x 30.47 mm (7.60 x 4.17 x 1.20 inches)

Function availability depends on brand, model and year. Ask us to confirm coverage for your bike.

Warranty and support

HIDS-DIRECT 1-year warranty and UK support. Message our team for coverage checks or setup help.

FAQs

Which brands are supported?

MT V6 Plus covers 21 motorcycle brands with system diagnostics and common service functions. Send us your model and year to confirm specific functions.

Can it do actuation tests?

Yes - actuation or bi-directional tests are available where supported by the bike’s ECU.

How do software updates work?

Updates are lifetime and free via PC. Connect the tool and follow on-screen prompts.
