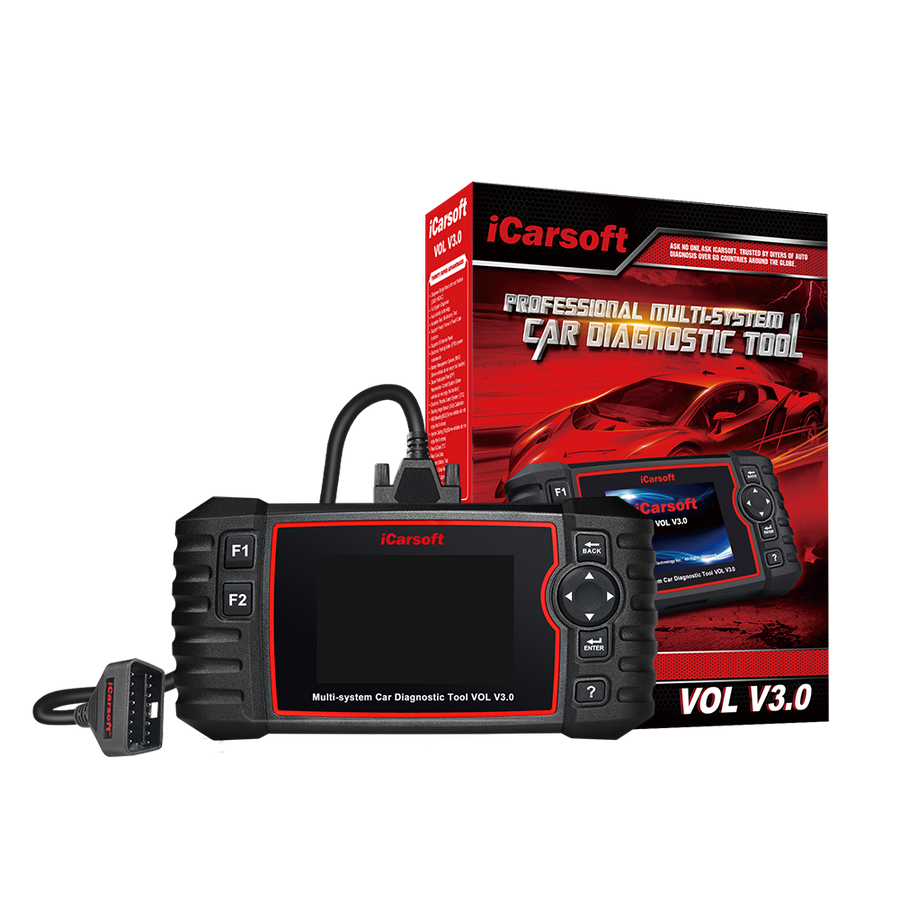

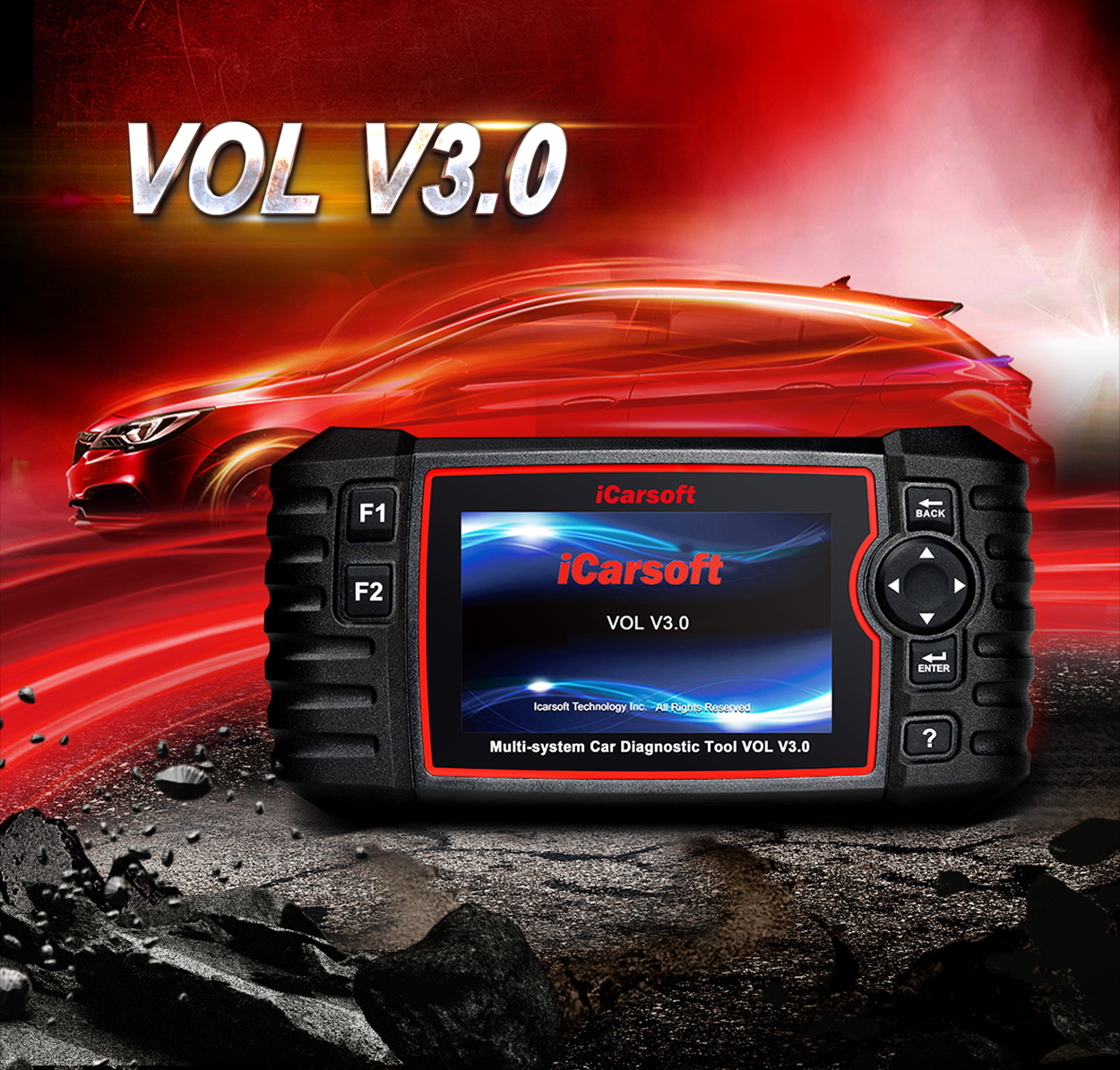

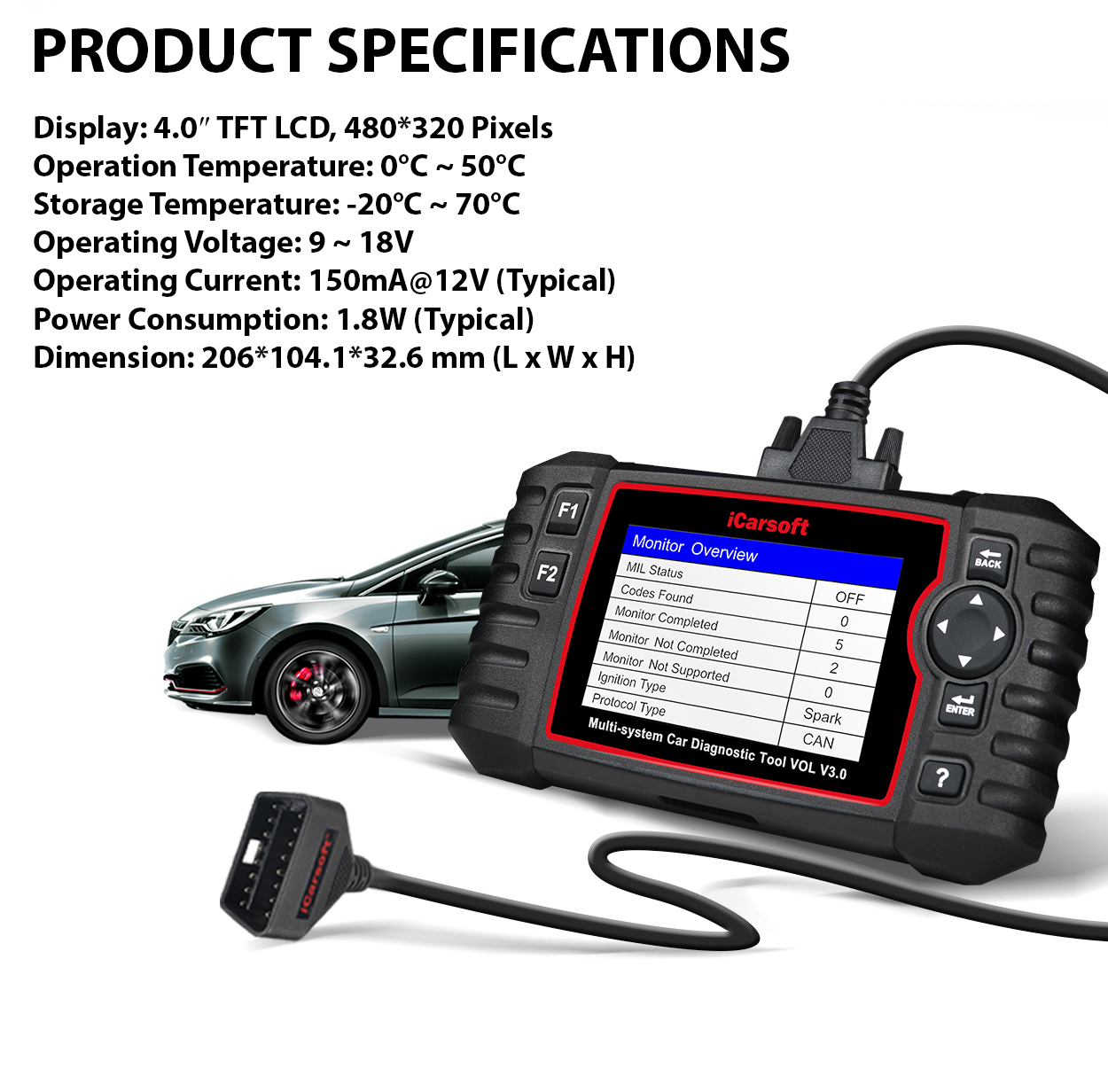

iCarsoft VOL V3.0 Full System Diagnostic Scan Tool for Volvo Saab

iCarsoft VOL V3.0 Full System Diagnostic Scan Tool for Volvo Saab

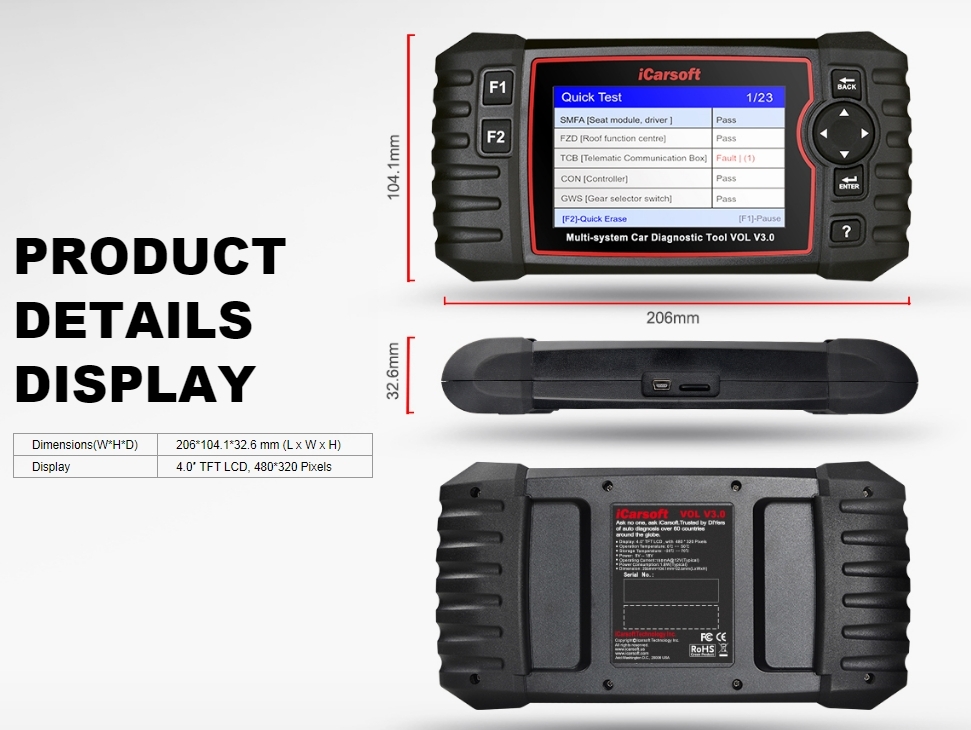

iCarsoft VOL V3.0 is a Professional and Powerful diagnostic tool for Volvo / Saab. With 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis and test modes. Access vehicle-specific subsystem component test with the Actuation test / Bi-directory test. This new feature is only available on iCarsoft V3 scanners, it enables technicians to accurately diagnose complex problems.

iCarsoft VOL V3.0 supports multiple languages: English, German, Spanish, French, Dutch, Danish, Italian, Hungarian, Norwegian, Portuguese, Finnish, Swedish, Czech and Russian.

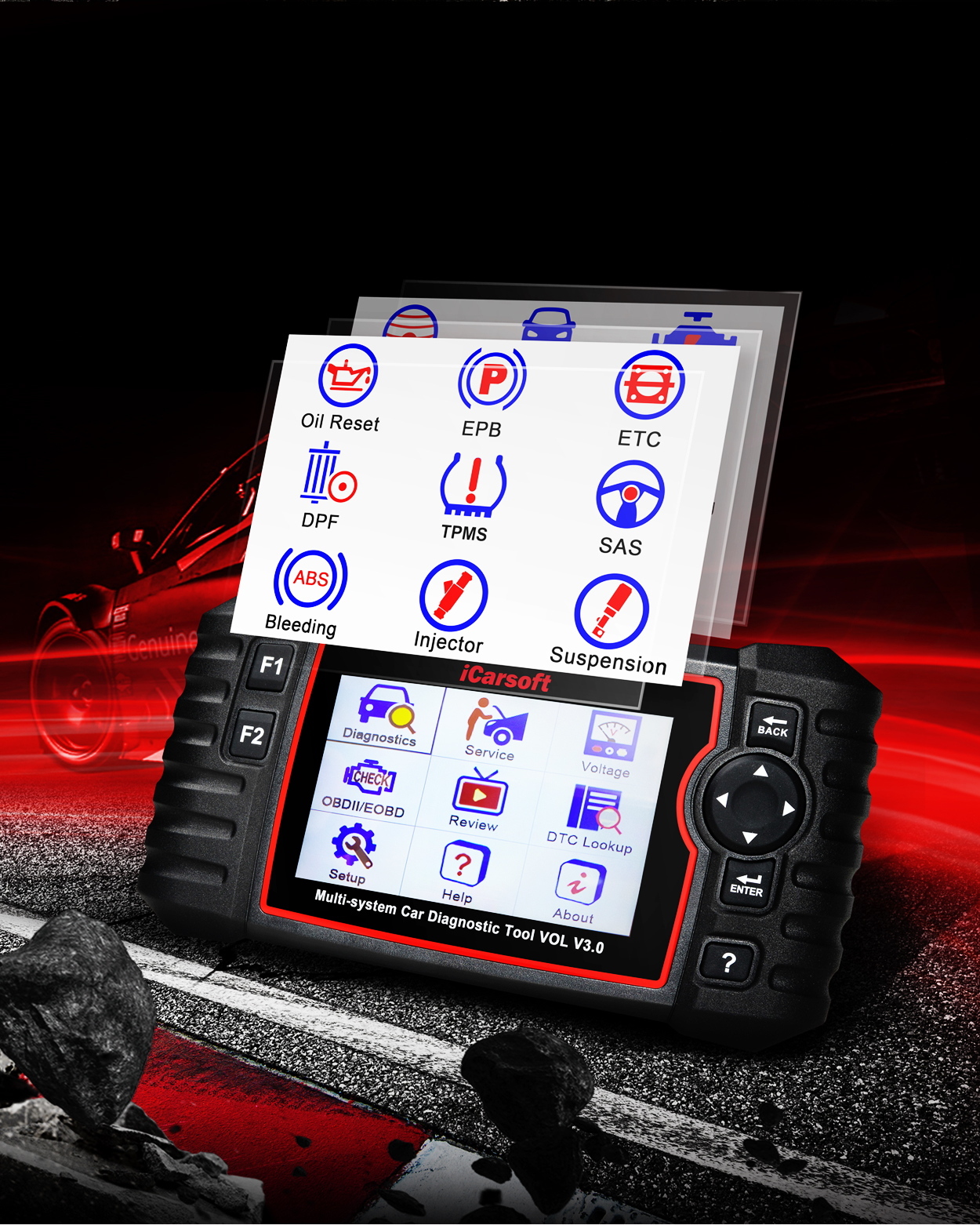

ICARSOFT VOL V3.0 FEATURES FOR VOLVO AND SAAB

1. Read and clear trouble codes | On most of the electronic systems such as engine, transmission, ABS, airbag etc.
2. Support OBDII/EOBD | (Ten Modes of Operation)
3. Full ECU Diagnosis
4. Oil Light / Service Reset
5. Electronic Parking Brake (EPB) | System maintenance, deactivate and reactivate the EPB system for replacement and initialization.
6. Battery Management System (BMS) | Register new battery to the BMS while battery replacement.
7. Diesel Particulate Filter (DPF) | Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
8. ABS Bleeding | Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
9. Air Suspension | Reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
10. Electronic Throttle Control system (ETC) | Relearn the throttle va value while clear or replace the throttle valve.
11. Steering Angle Sensor (SAS) | Calibrate the steering wheel to straight ahead, or recalibrate SAS while steering part replacement.
12. Head Lamp | Maintenance and other related operations (Including AFS setting), and then perform this function for calibration.
13. Engine ldle correction | Can be executed when the idle speed fault is resolved. Adjust the engine speed of the car at idle speed.
14. TPMS | Function include displaying sensor IDs from the vehicle`s ECU, inputting TPMS sensor replacement lD and testing sensors.
15. Adaption function | Allows you to perform adaptive learning / reset / calibration and other functions for each control module. It includes some important module data for parameter adjustment such as Remote Control Adaptation.
16. Injector coding | relearn the injector control parameter while the injector renewed or replaced.

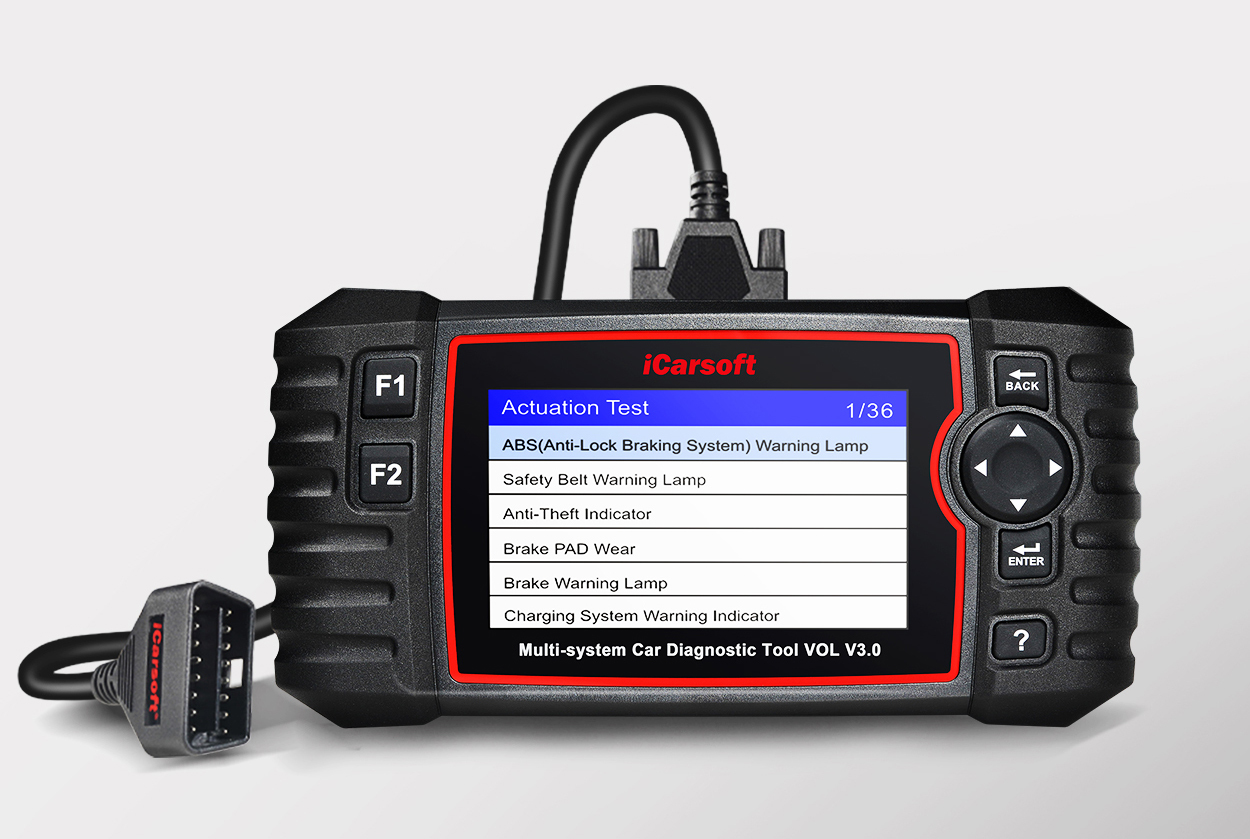

17. Actuation Test / Bi-directory Test | Used to access vehicle-specific subsystem and component tests.

Applies to most of the Volvo and Saab models which equipped with OBDII-16 DLC.
Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
The iCarsoft VOL V3.0 scanner covers over 20 years of models, some functions may not be available on all years / models.

OBDII FUNCTION

1. Read Codes
2. Erase Codes

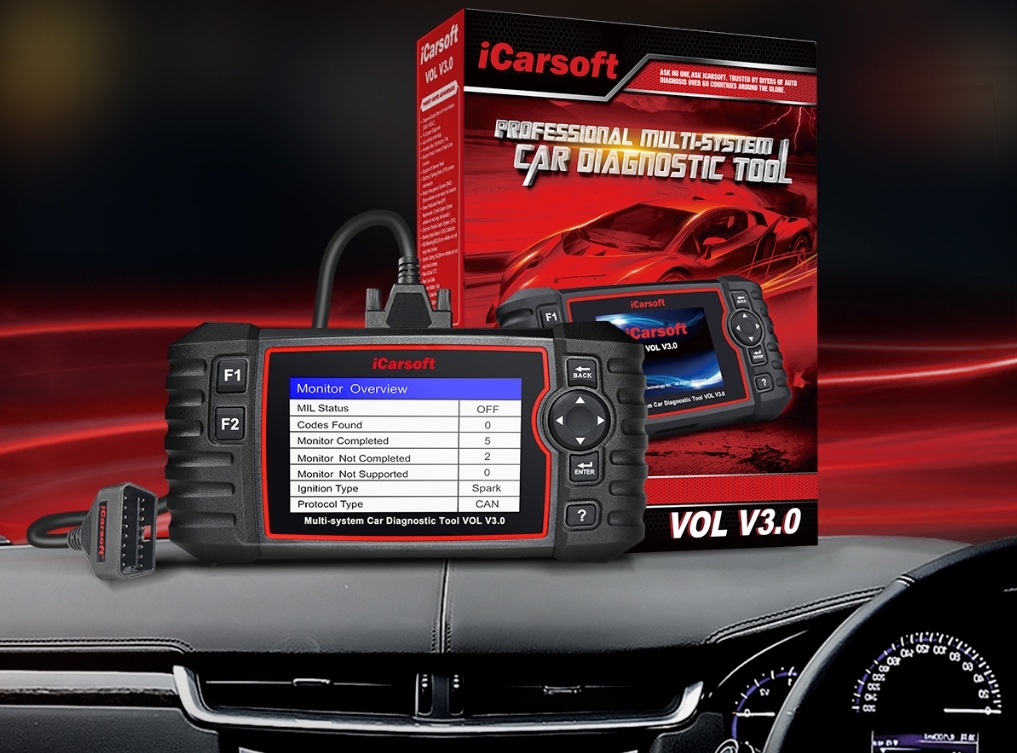

3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. DataStream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.
