NHK® Dragon Series Stormbringer DRG03 3.0 Inch Triple Bi-LED Projector Headlight Upgrade (Pair)

NHK® Dragon Series Stormbringer DRG03 - 3.0" Triple Direct-Illuminating Bi-LED Projector (Pair)

The NHK Stormbringer DRG03 is a high-performance 3.0" Triple Direct-Illuminating Bi-LED projector designed for premium retrofit headlight upgrades. Featuring a unique triple optical arrangement, this model is built to deliver strong beam width, sharp cut-off control, and long-range forward projection.

Built on NHK’s Dragon Series platform, the DRG03 combines 8000 lumens output, 5000K pure white light, a built-in 12 V driver, RHD beam pattern, and G5 bracket-hole compatibility for serious projector retrofit builds.

Key highlights at a glance

• 3.0" Triple Direct-Illuminating Bi-LED projector
• Three independent high beam zones for stronger distance visibility
• Sky bat optics style beam distribution for wider light spread
• 8000 lm high-output performance
• 5000K pure white modern light colour
• Sharp, glare-free low beam cut-off
• Long-range high beam with focused projection
• Built-in 12 V driver - no external ballast required
• RHD cut-off pattern for UK roads
• G5 mounting holes - Hella G5 / 3R compatibility
• Supplied as a pair (2 projectors)

Professional installation recommended for correct alignment, sealing, wiring, and safe retrofit integration.

Overview posters

Advanced optical technology

The DRG03 uses an advanced triple direct LED optical system, promoted by NHK with “Sky bat optics” styling, to maximise beam spread while keeping a strong central hotspot. The result is excellent road coverage with a sharp, controlled beam pattern.

• Triple LED projection: delivers wider beam coverage and improved visibility.
• Three independent high beams: designed for stronger long-range performance.
• Hyperboloid spherical lens: engineered for longer range and stronger penetrating power.
• Balanced light distribution: strong foreground coverage with extended distance reach.
• Non-dazzling output: sharp cut-off helps reduce glare to oncoming traffic.

Cooling and durability

The Stormbringer DRG03 is engineered for stable long-term output with an advanced heat dissipation system designed around airflow and active cooling.

• Honeycomb isometric ducted wind tunnel design for unobstructed airflow
• Dual ball-bearing imported smart fan for reliability and long service life
• Stacked surface heat dissipation structure for thermal stability
• Twin-turbo fan blades for powerful cooling performance

Beam performance

The DRG03 is designed to produce a clean and controlled beam for both daily use and performance-focused retrofit builds.

• Low beam: sharp cut-off, glare-free, stable output, and no visible flicker
• High beam: long-range projection with a focused, penetrating beam
• Wide beam spread: improved roadside and forward visibility

Beam patterns (indoor & outdoor)

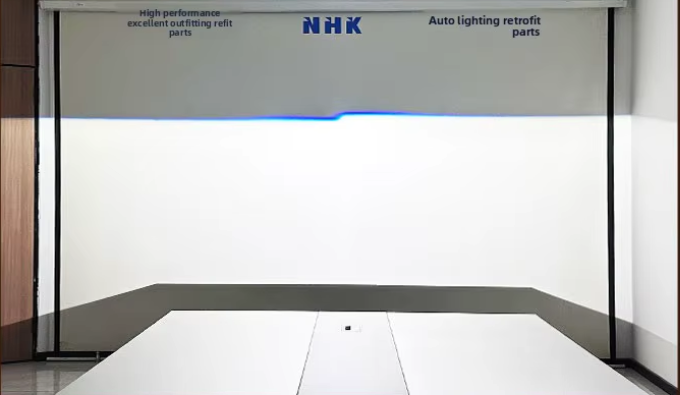

Indoor - Low Beam

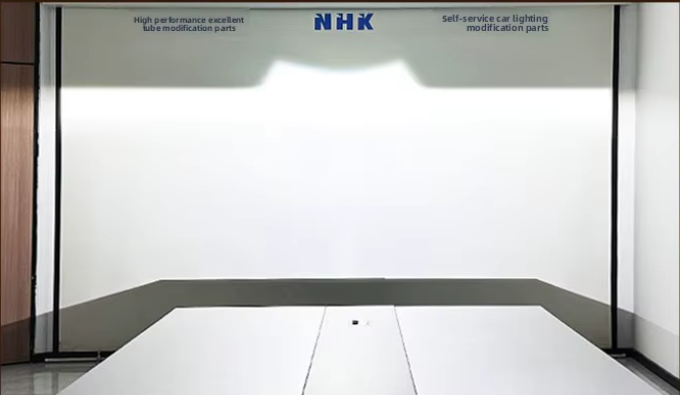

Indoor - High Beam

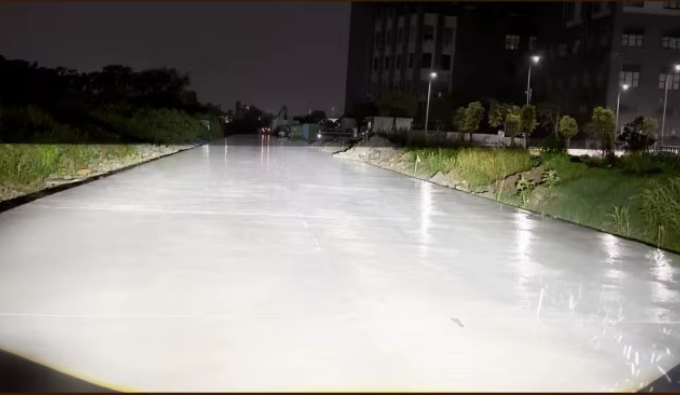

Outdoor - Low Beam

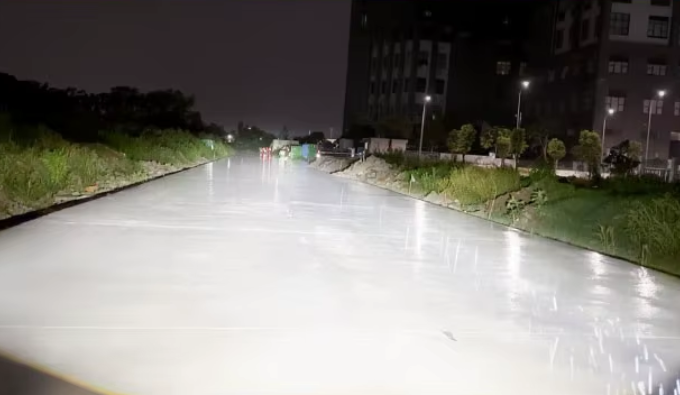

Outdoor - High Beam

Beam Pattern Demonstration

Product images

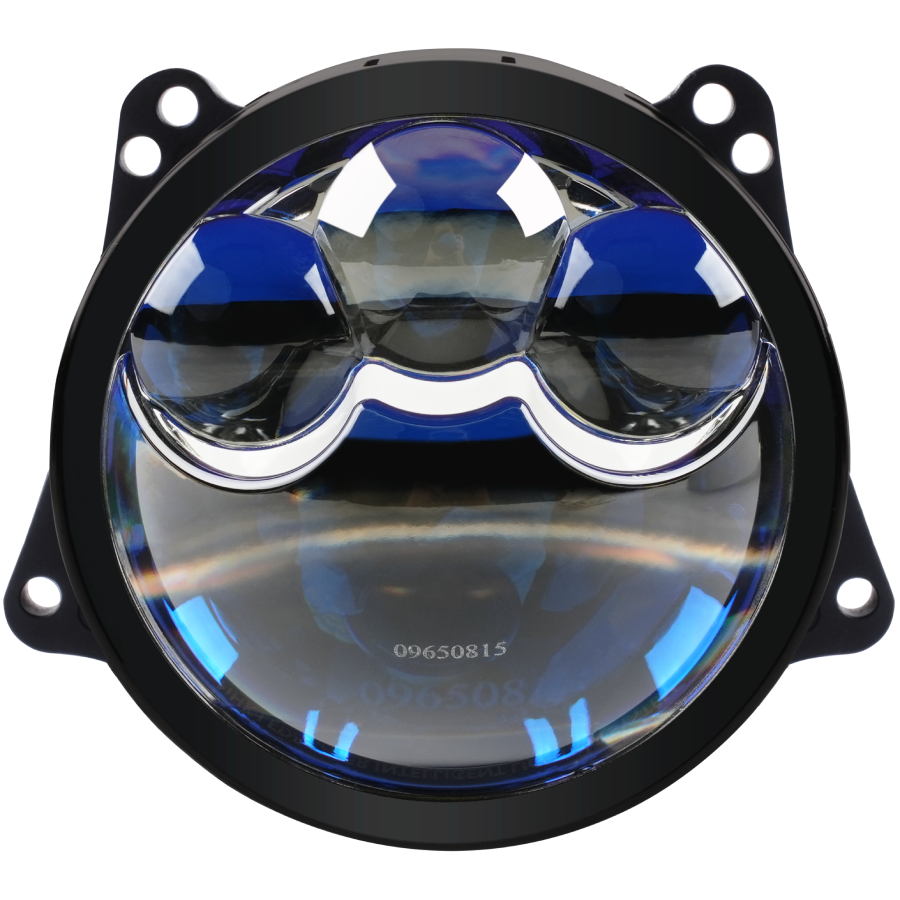

Front lens view - projector face

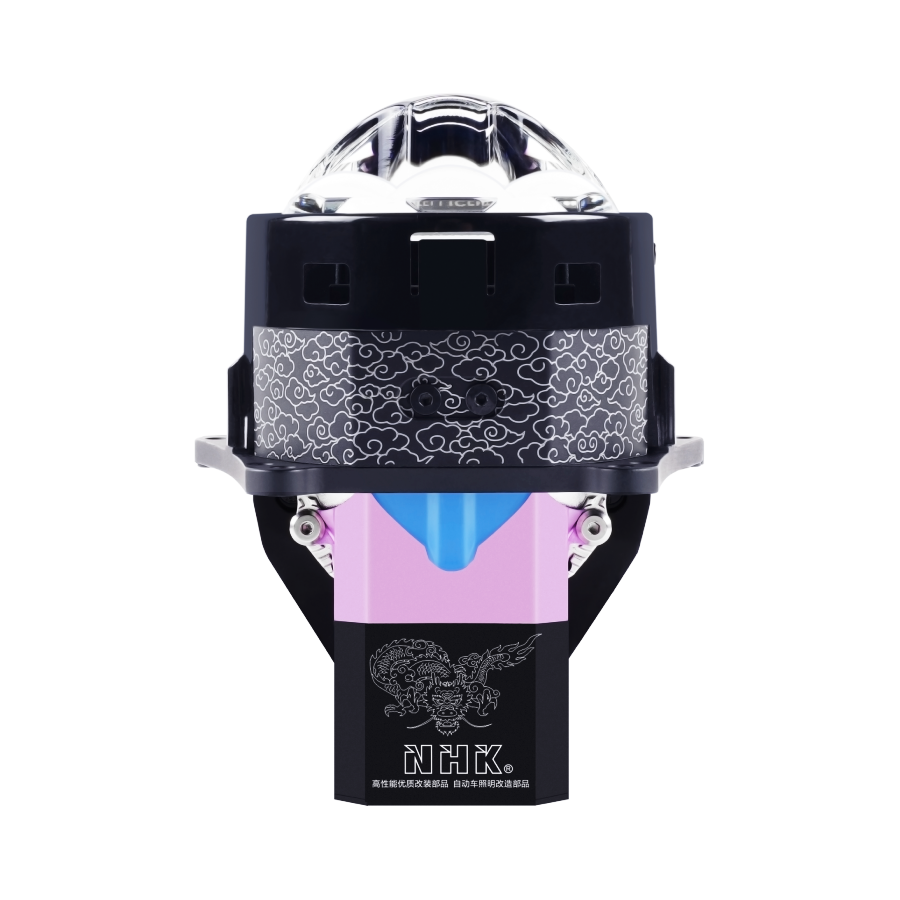

Angled front view - Stormbringer DRG03

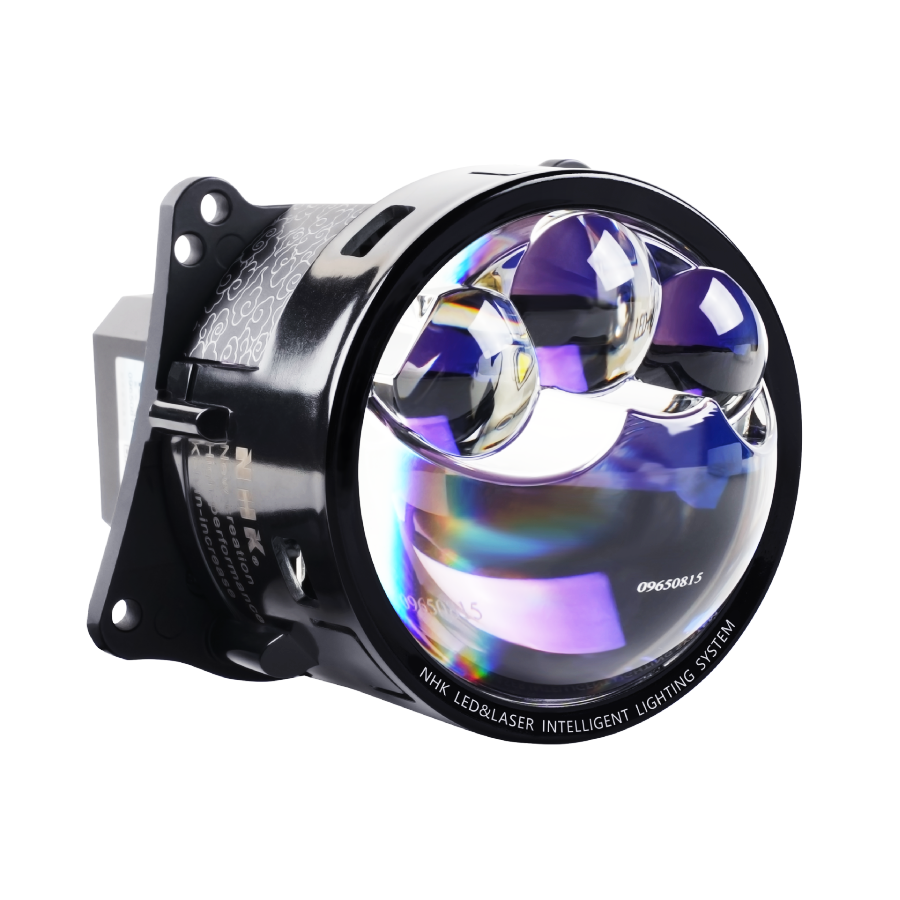

Side profile - projector housing

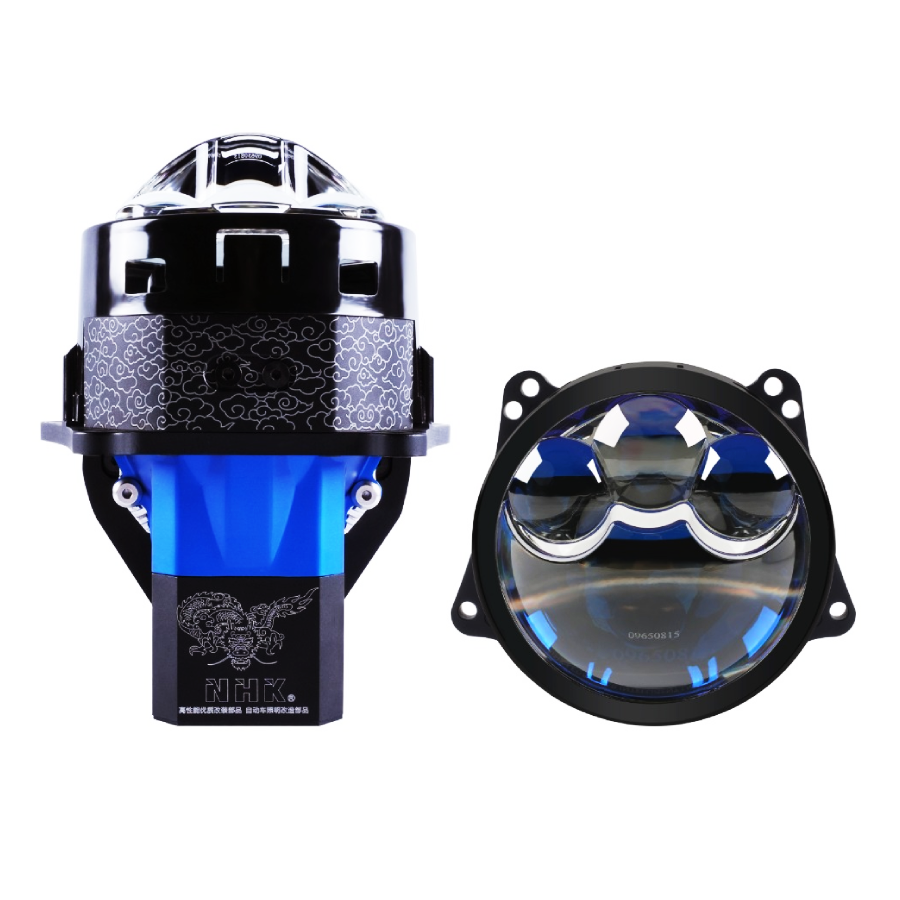

Rear view - cooling and rear housing

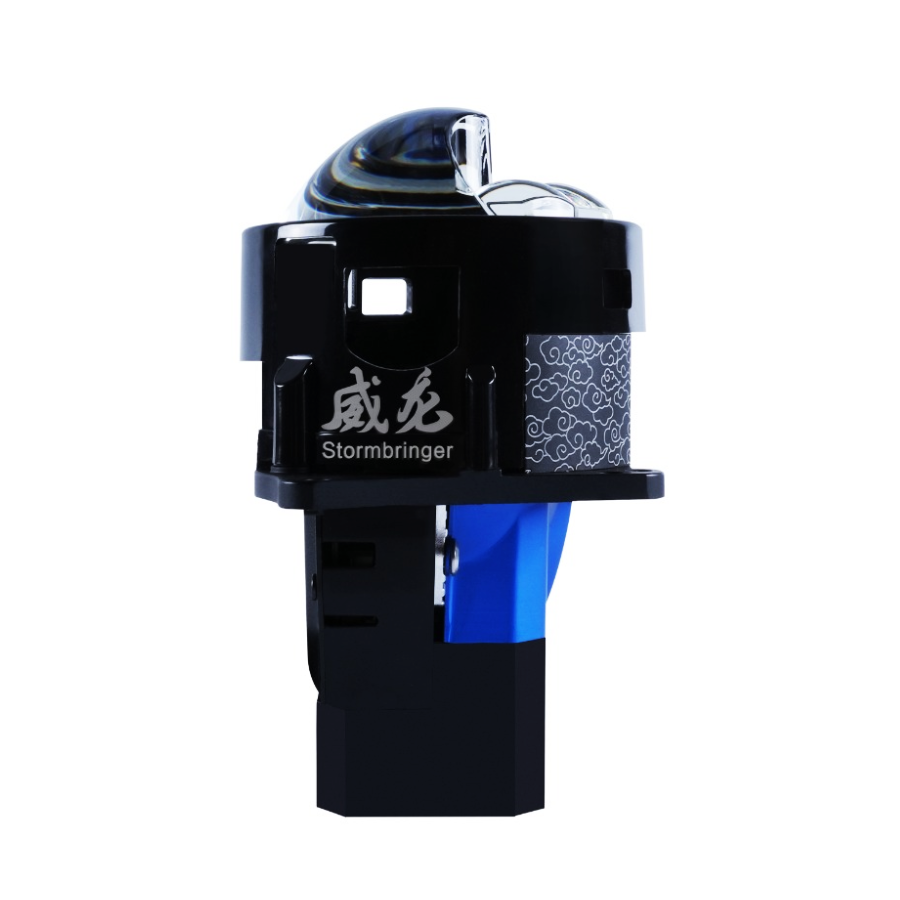

Top angle detail - Stormbringer body design

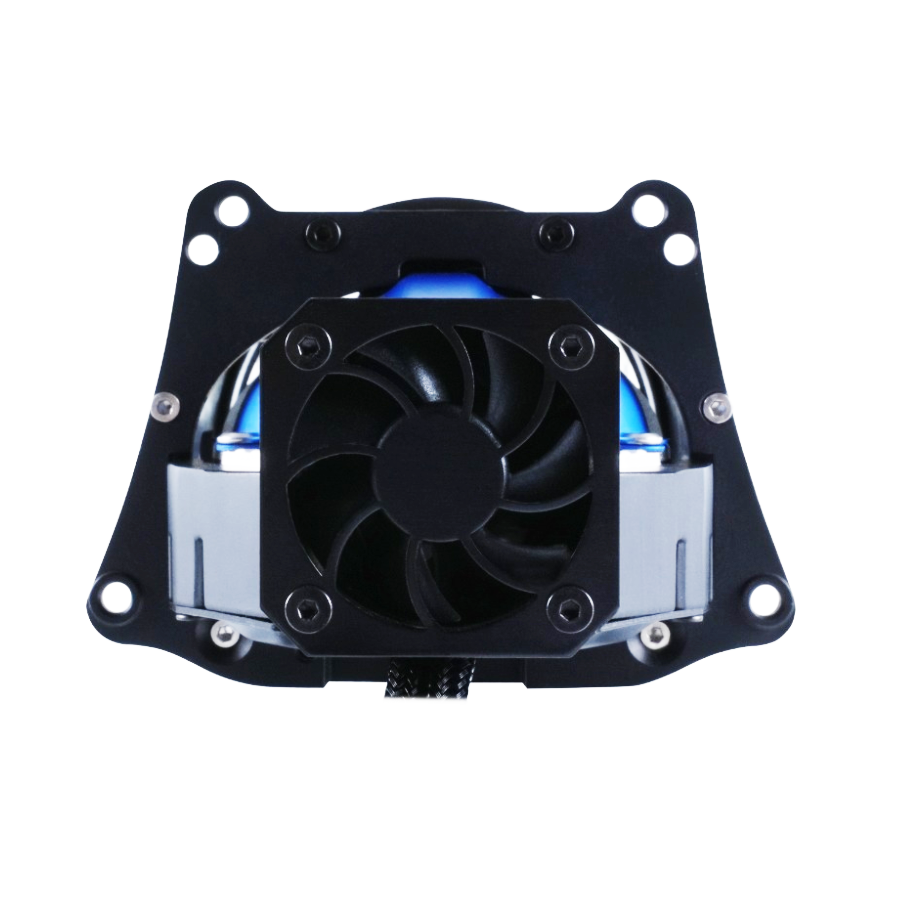

Detailed side view - optical and housing profile

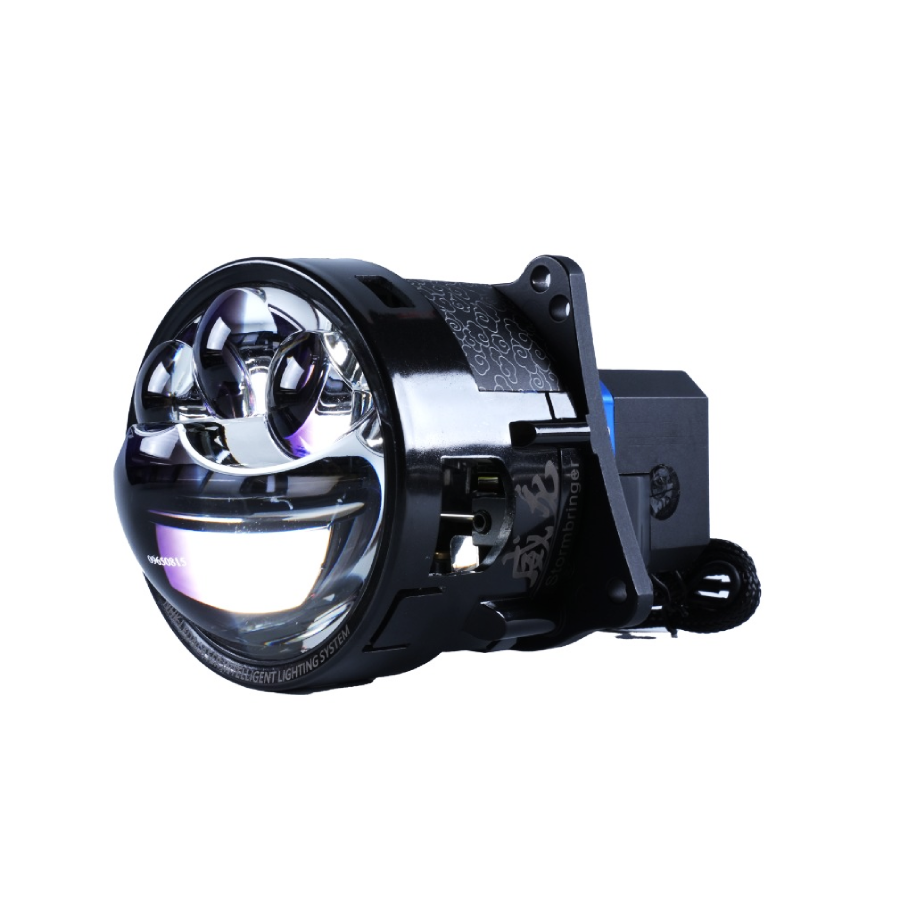

Projector detail - front and shroud styling

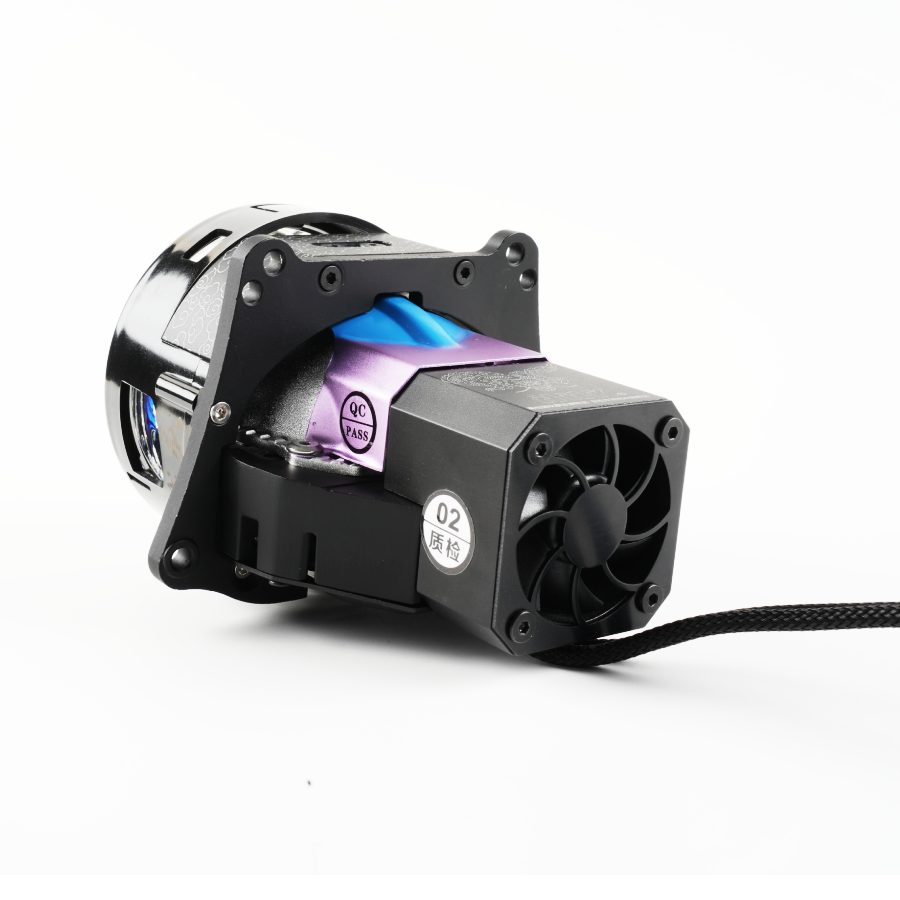

Close-up detail - lens and front assembly

Frequently Asked Questions

Technical specifications

Fitment may require vehicle-specific brackets or spacers depending on housing design and retrofit method.

Installation

Uses the G5 bracket-hole pattern (Hella G5 / 3R compatible) for retrofit mounting. The built-in 12 V driver connects directly to existing low and high beam circuits, removing the need for an external ballast.

For correct aim, sealing, and safe operation, professional installation is strongly recommended.

Looking for finishing parts for your retrofit? Compatible projector shrouds and accessories can be found here: Projector shrouds and retrofit accessories
