501 W5W T10 18 SMD 2016 CANBUS White LED Bulbs 12V-24V Non-Polarity – Pair

501 W5W T10 18 SMD 2016 CANBUS White LED Bulbs 12V-24V

Compact, powerful and designed for modern vehicle lighting systems.

Upgrade compatible 501 / W5W / T10 filament bulbs with this advanced 18 x 2016 SMD CANBUS LED design. Each bulb combines eighteen modern LED chips, integrated CANBUS electronics and a compact non-polarity T10 wedge construction to produce a bright, crisp white light with excellent all-round illumination.

Unlike basic single-direction T10 LEDs, this bulb uses LEDs on the front and both sides, helping spread light through the original lamp housing rather than concentrating illumination in one direction.

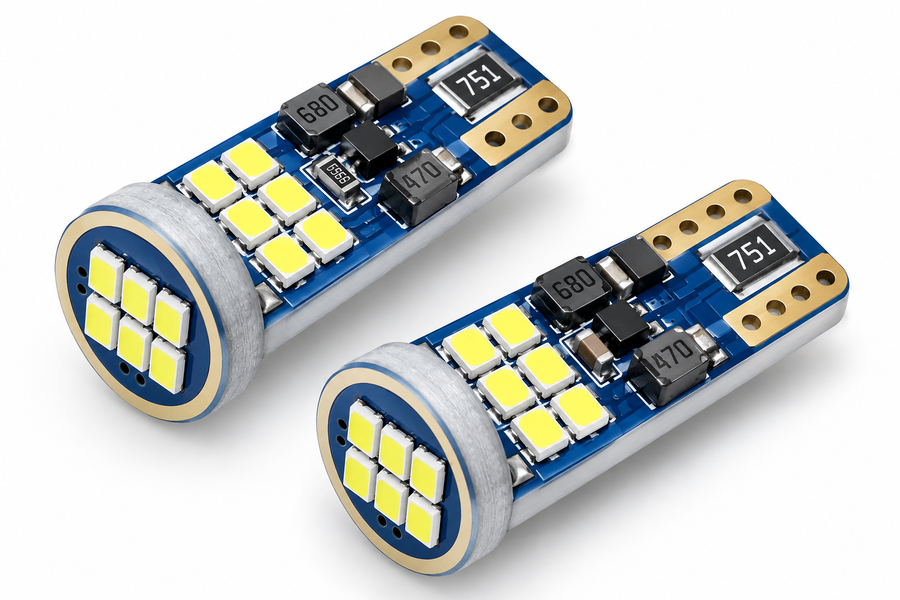

18 x High-Brightness 2016 SMD LEDs

Each bulb uses 18 individual 2016 SMD LED chips positioned across three illuminated surfaces:

• 6 LEDs on the front
• 6 LEDs on one side
• 6 LEDs on the opposite side

This multi-directional arrangement provides a broad spread of light and helps make effective use of the original reflector or lamp housing.

Bright, Crisp White LED Light

Replace the warm yellow appearance of a conventional W5W filament bulb with a cleaner, more modern white LED appearance.

The 2016 SMD arrangement provides strong illumination while maintaining the compact proportions required for many original T10 / W5W lamp housings.

Integrated CANBUS Electronics

The bulb incorporates substantial electronic components directly into the PCB to improve compatibility with vehicles that monitor their lighting circuits.

• CANBUS-ready electronic design
• Helps reduce bulb-out warning messages
• Helps minimise unwanted LED flicker in many applications
• No separate external resistor required for many vehicles
• Integrated driver and load circuitry

Non-Polarity Design

Unlike many earlier LED replacement bulbs, this version is non-polarity / bi-polar.

That means there is no need to remove the bulb and rotate it 180 degrees if it does not illuminate. Simply insert it into the compatible T10 / W5W socket and it can operate regardless of electrical polarity.

12V-24V DC Compatibility

This LED has been designed for a wide 12V to 24V DC operating range, making it suitable for compatible lighting applications across cars, vans and many commercial vehicles.

Compact T10 / W5W / 501 Fitment

Despite the increased LED count and integrated electronics, the bulb remains exceptionally compact at approximately 24 mm long and 10 mm maximum diameter.

The standard W2.1 x 9.5d wedge fitting is designed as a direct replacement for compatible 501 / W5W / T10 filament bulbs.

Typical Applications

Please check that your vehicle uses a 501 / W5W / T10 bulb and that sufficient space is available inside the lamp housing before ordering.

Product Specification

Easy Plug & Play Installation

1. Switch the vehicle lights off.
2. Remove the original 501 / W5W filament bulb.
3. Insert the new T10 LED securely into the wedge socket.
4. Switch the lights on and check operation before refitting the lamp assembly.

Why Choose This HIDS-DIRECT T10 LED?

• 18 x modern 2016 SMD LEDs per bulb
• 6 front + 12 side-mounted LEDs
• Bright crisp white LED appearance
• 360° multi-directional illumination
• Integrated CANBUS electronics
• Non-polarity / bi-polar design
• 12V-24V DC compatibility
• Compact T10 / W5W / 501 fitment
• W2.1 x 9.5d standard wedge base
• Easy plug-and-play installation
• Pair of 2 bulbs supplied
• 1-year HIDS-DIRECT warranty
