501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair
  • 501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair

501 W5W T10 9 SMD 4014 Strong CANBUS White LED Sidelight Bulbs – Pair

Price:
£8.95
SKU:
T10-4014-9-CAN
Brand:
HIDS-DIRECT
Condition:
New
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:

Product Description

501 W5W T10 9 SMD 4014 Strong CANBUS White LED Bulbs

A completely new generation of T10 LED bulb.

If you are replacing an older 501 / W5W LED design, this modern 9 x 4014 SMD CANBUS LED is a major step forward in construction, light distribution and vehicle compatibility.

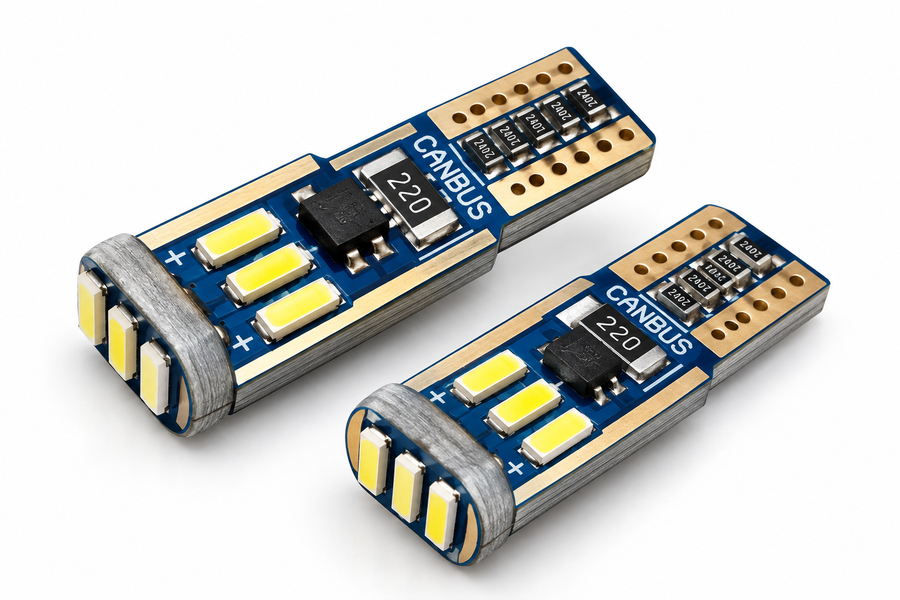

Each bulb combines 9 modern 4014 SMD LEDs with substantial integrated CANBUS circuitry and a compact PCB-style T10 wedge design. The result is a bright, crisp white light with excellent multi-directional coverage from the sides and end of the bulb.

NEW GENERATION W5W LED TECHNOLOGY
9 x 4014 SMD • Strong Integrated CANBUS • Bright White Light • Multi-Directional Output • Compact T10 Fitment

Why This Is Different From Older T10 LEDs

Early-generation T10 LEDs often relied on a handful of basic SMD chips and relatively simple resistor circuits. This newer design is considerably more sophisticated.

Older-Generation LED Designs
Lower LED count
More limited light distribution
Basic CANBUS circuitry
Simpler PCB construction		 New 9 x 4014 CANBUS LED
9 modern 4014 SMD LEDs
Side and end illumination
Strong integrated CANBUS circuitry
Modern PCB construction

9 x High-Brightness 4014 SMD LEDs

Every bulb uses 9 individual 4014 SMD LED chips, positioned around the bulb rather than concentrated on a single surface.

  • 3 LEDs on one broad side
  • 3 LEDs on the opposite broad side
  • 3 LEDs on the end

This arrangement gives a much broader spread of light than a basic single-direction LED and makes better use of the original lamp reflector or housing.

Bright, Crisp White LED Light

Replace the warm yellow appearance of a conventional W5W filament bulb with a clean, modern white LED light that gives your vehicle a sharper and more contemporary appearance.

Strong Integrated CANBUS Technology

One of the biggest improvements over older T10 LEDs is the substantial built-in CANBUS circuitry.

The components are integrated directly into the bulb PCB and are designed to improve compatibility with vehicles that monitor exterior and interior lighting circuits.

  • Helps reduce bulb-out warning messages
  • Helps minimise unwanted LED flicker
  • No separate external resistor required for many applications
  • Modern integrated electronic design
CANBUS compatibility: Vehicle monitoring systems differ between manufacturers, models and individual applications. These bulbs feature strong CANBUS circuitry, but complete error-free operation cannot be guaranteed on every vehicle.

Compact T10 / W5W / 501 Fitment

Despite the upgraded electronics and increased LED count, the bulb remains compact at approximately 27 mm long and 10 mm wide.

It uses the familiar T10 / W5W / 501 wedge fitting, making it suitable as a direct replacement in many compatible 12V vehicle lighting applications.

Typical Applications

Sidelights / Position Lights
Number Plate Lights
Interior / Dome Lights
Map / Courtesy Lights
Boot / Luggage Lights
Glovebox / Auxiliary Lights

Please check that your vehicle uses a T10 / W5W / 501 bulb and that sufficient space is available before ordering.

Product Specification

Bulb Type 501 / W5W / T10
Base / Fitting W2.1 x 9.5d Wedge
LED Technology 4014 SMD
LED Quantity 9 LEDs Per Bulb
Light Colour White
Voltage 12V DC Only
CANBUS Yes - Strong Integrated CANBUS
Polarity Polarity Sensitive
Overall Length Approx. 27 mm
Maximum Width Approx. 10 mm
Wedge Width Approx. 8.5 mm
Pack Quantity 2 Bulbs
Warranty 1 Year
Need a 12V-24V T10 LED?

If you require wider voltage compatibility for a 12V or 24V application, take a look at our 501 W5W T10 18 SMD 2016 CANBUS 12V-24V Non-Polarity LED Bulbs . This alternative also features a non-polarity design for simple installation.

Easy Plug & Play Installation

  1. Switch the lights off and remove the original W5W / 501 bulb.
  2. Insert the new T10 LED securely into the wedge socket.
  3. Test the LED before refitting the lamp assembly.
Doesn't illuminate first time?
This LED is polarity sensitive. Simply remove it, rotate the bulb 180 degrees and reinstall it.

Why Choose This HIDS-DIRECT W5W LED?

  • 9 x modern 4014 SMD LEDs per bulb
  • Strong integrated CANBUS electronics
  • Bright crisp white light
  • Wide multi-directional illumination
  • Compact 501 / W5W / T10 design
  • Modern PCB construction
  • Easy plug-and-play installation
  • Pair of 2 bulbs supplied
  • 1-year HIDS-DIRECT warranty

Frequently Asked Questions

What vehicles will these T10 W5W LED bulbs fit?

These bulbs are designed for compatible 12V applications using a T10 / W5W / 501 wedge bulb. Common uses include sidelights, position lights, number plate lights, interior lights, map lights, courtesy lights and boot lights. Always check the original bulb fitting and available space before ordering.

Are these W5W LED bulbs CANBUS compatible?

Yes. Each bulb features strong integrated CANBUS circuitry designed to help reduce bulb-out warning messages and unwanted flicker on many vehicles. Vehicle monitoring systems vary, so completely error-free operation cannot be guaranteed on every vehicle.

How many LEDs are fitted to each bulb?

Each bulb uses 9 high-brightness 4014 SMD LEDs. Three LEDs are positioned on each broad side of the PCB with a further three LEDs positioned at the end for wide multi-directional light output.

Are these bulbs suitable for 24V vehicles?

No. This version is designed for 12V DC vehicle electrical systems only and should not be used on 24V applications.

If you require a bulb suitable for both 12V and 24V systems, see our 501 W5W T10 18 SMD 2016 CANBUS 12V-24V Non-Polarity LED Bulbs .

Are these LED bulbs polarity sensitive?

Yes. If the LED does not illuminate when first installed, remove the bulb, rotate it through 180 degrees and reinstall it into the socket.

What size are the bulbs?

Each bulb measures approximately 27 mm in overall length and 10 mm at its widest point, with an approximately 8.5 mm wide wedge section.

How many bulbs are supplied?

The pack contains 2 x T10 / W5W / 501 9 SMD 4014 CANBUS white LED bulbs and includes a 1-year HIDS-DIRECT warranty.

501 / W5W / T10 NEW GENERATION LED UPGRADE
9 x 4014 SMD • Strong CANBUS • 12V DC • White • Pair of 2

Warranty Information

1-year warranty

Other Details

Bulb Type:
501 / W5W / T10
Fitment:
W2.1 x 9.5d
Colour:
White
Voltage:
12V DC
CANBUS:
Yes - Strong CANBUS
Position:
Multi-Purpose
Function:
Sidelight / Interior
Pack:
2 Bulbs
Warranty:
1 Year Warranty
