Audi Q5 / SQ5 8R White LED DRL Board Set – 8R0941475 & 8R0941476

Audi Q5 / SQ5 8R White LED DRL Board Set – 8R0941475 & 8R0941476

Restore the original white LED daytime running light (DRL) on compatible Audi Q5 and SQ5 8R Facelift headlights with this matched 2-piece replacement LED light-source board set.

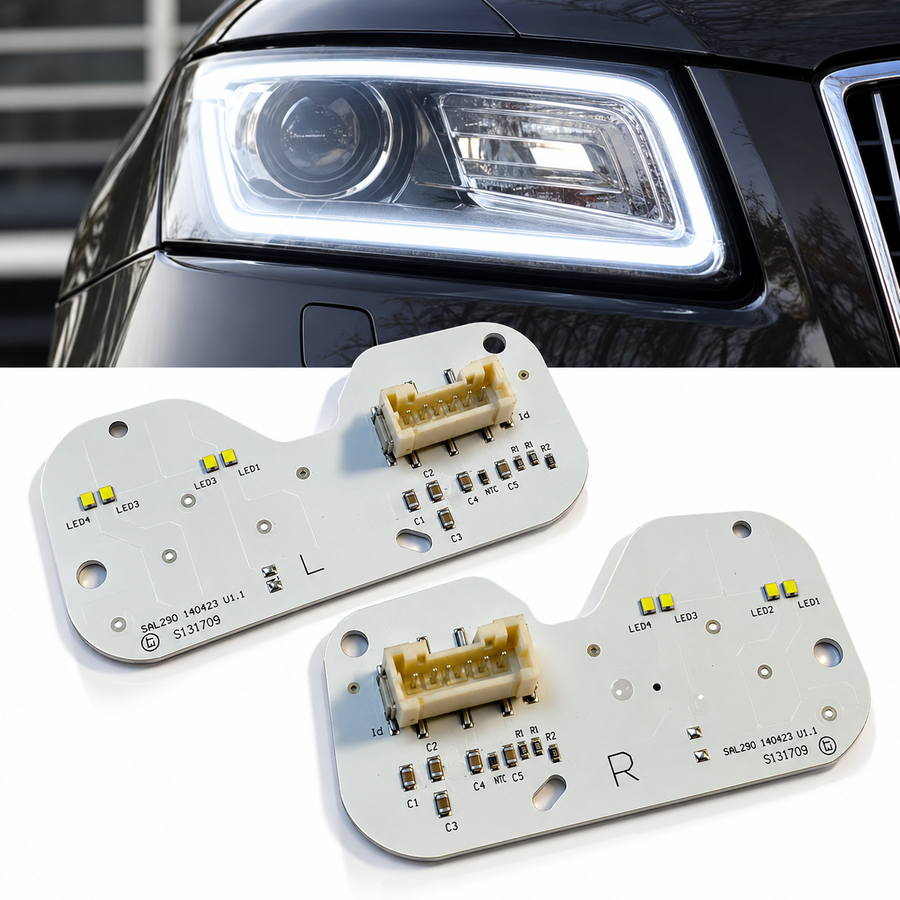

The kit contains one board for the left-hand headlight and one board for the right-hand headlight, corresponding with Audi references 8R0941475 and 8R0941476.

These are replacement internal LED PCB boards designed to replace the light-source boards within compatible original Xenon headlight DRL modules. They are ideal where the original LEDs have failed, become dim or intermittent, or the daytime running light has stopped operating correctly.

Key Features

• 2-piece LED board set – left and right headlight
• Produces the original-style white DRL light
• Replacement for compatible Audi Q5 / SQ5 8R internal LED light-source boards
• References 8R0941475 and 8R0941476
• Designed for selected factory Xenon headlights with LED DRL
• OE-style 6-pin electrical connector
• High-quality replacement PCB construction
• Uses the existing headlight assembly
• Cost-effective alternative to replacing the complete headlamp
• Matched left + right set

OEM / Reference Numbers

UK vehicle orientation: 8R0941475 is the left-hand / UK passenger-side board and 8R0941476 is the right-hand / UK driver-side board.

Please note: The references above are supplied for identification and compatibility purposes. This listing is for the replacement internal LED PCB boards, not complete genuine Audi / Valeo LED modules or complete headlight assemblies.

Vehicle Compatibility

*Headlight specification and original part number are more reliable than registration year alone. Audi used several different headlight systems across the Q5 / SQ5 8R range.

Headlight Type

These boards are associated with selected Audi Q5 / SQ5 8R Facelift factory Xenon / D3S Xenon headlights fitted with LED daytime running lights.

Do not order by vehicle model and year alone. Audi used different Xenon, LED and other headlight configurations with visually similar but electrically different LED modules.

These boards should not be confused with later Audi Q5 FY / 80A DRL boards such as 80A998473 / 80A998474.

Board Dimensions

What's Included?

• 1 × Left-hand white LED DRL PCB board – 8R0941475
• 1 × Right-hand white LED DRL PCB board – 8R0941476
• 2 boards in total

Before Ordering

Please remove or inspect your existing LED module and compare the part number, connector, board shape and mounting points with the photographs in this listing.

In particular, do not automatically assume that parts marked 8R0941475A / 8R0941475B / 8R0941476A / 8R0941476B use the same internal PCB. Visually similar Audi DRL modules can contain different board designs.

Installation

These boards are fitted inside the headlight assembly and are intended to replace the original LED light-source PCBs while retaining the compatible original headlight.

The boards use an OE-style 6-pin connector and are designed as direct replacement PCBs where the original board specification matches.

Headlight removal and internal electrical work may be required. We therefore recommend installation by an automotive lighting specialist or suitably experienced technician.

Common Symptoms of a Failed DRL LED Board

• Daytime running light not illuminating
• One headlight DRL noticeably dimmer than the other
• Intermittent DRL operation
• Partial loss of the white LED light signature
• Complete loss of the daytime running light

Where the PCB itself is responsible for the fault, replacing the internal light-source board can avoid the considerably greater cost of replacing the complete headlight assembly.

Important Compatibility Information

Please match the original part before purchase. Vehicle registration lookup alone may not distinguish between all Audi headlight specifications. If your existing part differs from the photographs or carries a different suffix, please contact us before ordering.

Frequently Asked Questions

Does this listing include both sides?

Yes. The package contains two LED boards – one for the left headlight and one for the right headlight.

What colour are the LEDs?

These boards are designed to produce the standard white daytime running light appearance and restore the original-style Audi DRL illumination.

Does this replace the complete headlight?

No. This product replaces the internal LED light-source boards. The complete LED module housing, heatsink and headlight assembly are not included.

Which side is 8R0941475?

8R0941475 is the left-hand headlight board. On a UK right-hand-drive vehicle this is the passenger side.

Which side is 8R0941476?

8R0941476 is the right-hand headlight board. On a UK right-hand-drive vehicle this is the driver side.

Are 8R0941475B or 8R0941476B the same?

Do not assume suffix versions are interchangeable. Different PCB versions are available for some Audi Q5 headlight applications. Always compare the original part number, connector and physical board design before ordering.

Will these fit every Audi Q5 or SQ5 from 2013 to 2017?

No. Different headlight specifications were offered. Compatibility should be confirmed using the original part number and physical board design rather than model year alone.
