iCarsoft CR PRO+ Professional Multi-Brand Diagnostic Tool with Bi-Directional Control

iCarsoft CR PRO+ Professional Multi-Brand Diagnostic Tool

The iCarsoft CR PRO+ combines all-system diagnostics, bi-directional active tests and 48 service-function categories in a compact, button-operated scanner. It is a practical choice for home mechanics, multi-car households and workshops working on a range of supported vehicle makes.

Its 4.3-inch colour display gives you access to fault codes, ECU information, live data and supported maintenance routines. AutoVIN helps identify compatible vehicles, while CAN-FD support extends communication capability on selected newer applications.

Lifetime free software updates are installed using a computer. The supplied TF card reader helps keep the software and vehicle database up to date without an annual subscription.

Read Codes, View Live Data & Check Supported Systems

Go beyond a basic engine-code reader. Depending on the vehicle, the CR PRO+ can communicate with engine, transmission, ABS, airbag/SRS, body, steering, suspension, climate-control and other supported modules through the diagnostic connection.

• Read and clear diagnostic trouble codes after recording the fault information and completing the necessary repairs.
• Read ECU information, including available identification and software details.
• View live sensor data and supported graphs to investigate operating conditions.
• Review available freeze-frame data recorded when a fault was detected.

Bi-Directional Active Tests

Send commands to a supported component and check how it responds. Depending on vehicle coverage, examples include the ABS pump motor, window regulators, fuel pump, throttle actuator, cooling fan, horn, lights and door locks.

These output tests can help distinguish a component problem from a wiring or control issue. The tests offered in the scanner menu depend on the particular vehicle and ECU.

48 Service Functions: Everyday Maintenance & Specialist Routines

The latest manufacturer specification lists 9 commonly used service functions and 39 additional service categories. This is the overall range across supported vehicles; it is not a promise that all 48 will be available on one car.

Nine commonly used service functions

Keep the scanner software current. Service routines may require specific operating conditions, repair procedures or workshop equipment. Ask us to check any specialist function before purchase.

AutoVIN & Manual Vehicle Selection

AutoVIN can read the vehicle identification number automatically on supported vehicles, helping you reach the correct diagnostic software more quickly.

If automatic identification is unavailable, use manual VIN entry or manual vehicle selection where supported. Confirm the model, year and engine before starting diagnosis. AutoVIN availability and diagnostic coverage are separate checks.

Live Data Graphing

View supported live readings to compare sensor behaviour and investigate intermittent faults. Graphing makes changes over time easier to follow than a static fault-code list alone.

The available data parameters and display options depend on the selected ECU and vehicle software.

OBD2 / EOBD Emissions Diagnostics

The CR PRO+ also provides standard OBD2/EOBD diagnostic functions on compatible vehicles, including:

• Read stored and pending fault codes; erase supported emissions-related codes.
• Check I/M readiness monitor status.
• View live data, freeze-frame information and vehicle identification.
• Run available oxygen-sensor, on-board monitor and EVAP system tests.

Test availability depends on the vehicle protocol and ECU. Standard emissions diagnostics and manufacturer-specific all-system coverage are different capabilities; an OBD2 socket does not guarantee every service function.

Diagnostic History & Report Printing

Access previously tested vehicle systems and retain diagnostic information for reference before and after a repair.

Printing uses a Windows PC: connect the scanner to the computer via USB and use the supported iCarsoft reporting/printing workflow. A printer is not included.

Multi-Brand Vehicle Coverage

The manufacturer lists the following makes and vehicle groups. Support within each group varies by vehicle and function.

CAN-FD: supported on selected compatible applications, including newer GM and Chrysler vehicles. CAN-FD support alone does not guarantee access to every module or security-protected function.

Straightforward Hardware & Lifetime Free Updates

The 4.3-inch, 800 × 480 colour screen is operated using physical navigation and function buttons. Vehicle communication uses the supplied diagnostic cable, while updates are managed on a compatible computer.

No annual software subscription: lifetime free updates are included. Follow the current iCarsoft update instructions and check computer compatibility before installation.

For buyers comparing platforms: the CR PRO+ uses physical buttons and PC-based updates; the CR PRO S offers a touchscreen and Wi-Fi updating.

Older Vehicles & Optional Adapters

Some older vehicles use a dedicated diagnostic connector. The BMW 20-pin and Mercedes-Benz 38-pin adapters below are optional accessories, sold separately; they are not included in the standard CR PRO+ package.

Optional — sold separately

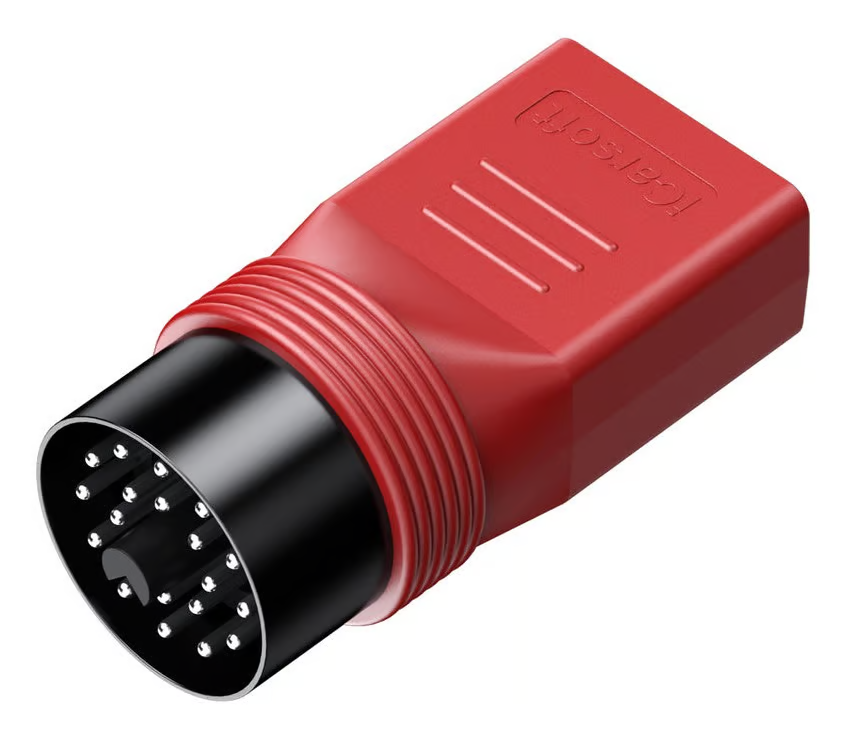

BMW 20-pin Adapter

For selected older BMW vehicles with a 20-pin diagnostic connector.

View adapter

Optional — sold separately

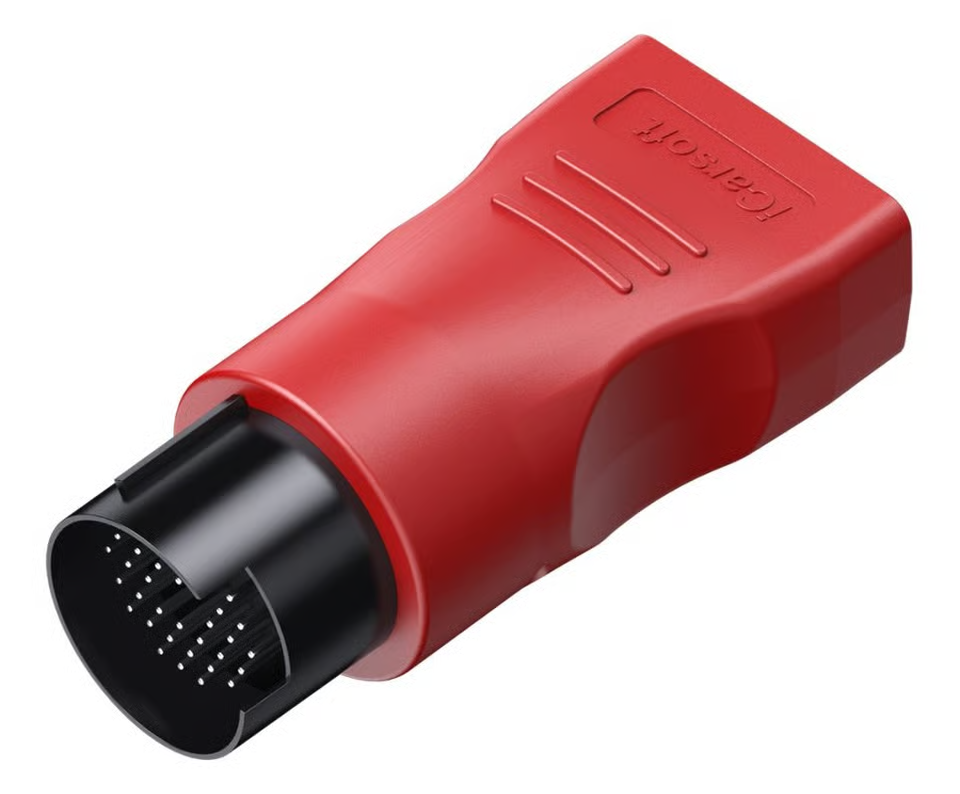

Mercedes-Benz 38-pin Adapter

For selected older Mercedes-Benz vehicles with a 38-pin diagnostic connector.

View adapter

Check the actual connector and scanner coverage for your vehicle before ordering. A matching plug does not add unsupported diagnostic functions. Contact HIDS-DIRECT if you need help choosing the correct adapter.

+What is included in the box?

The standard CR PRO+ package contains the following six items:

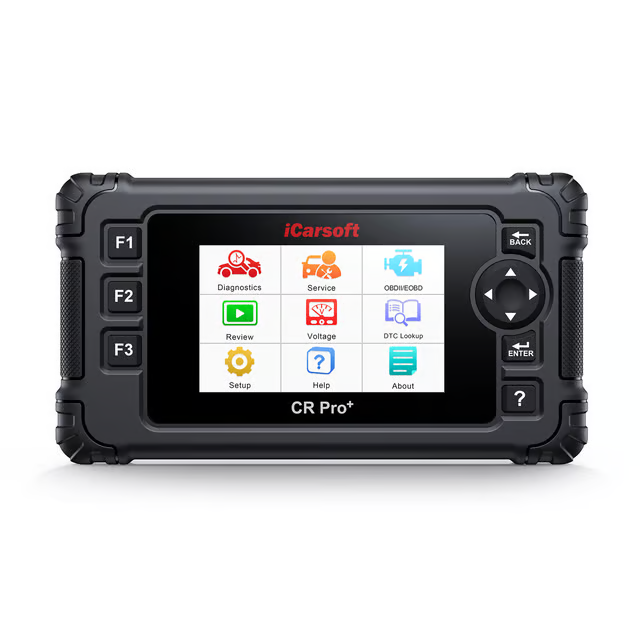

CR PRO+ Main Unit

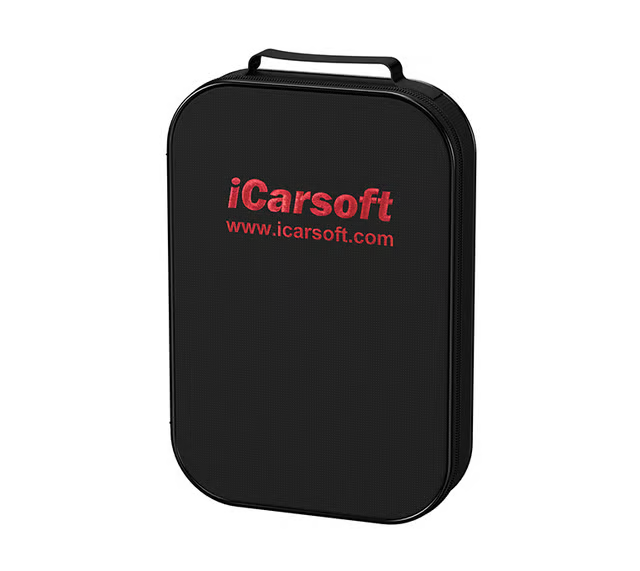

Carry Case

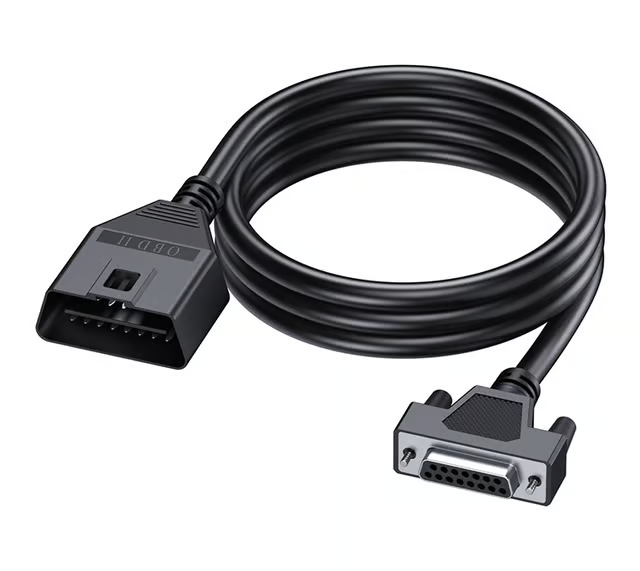

16-pin OBD2 Connector Lead

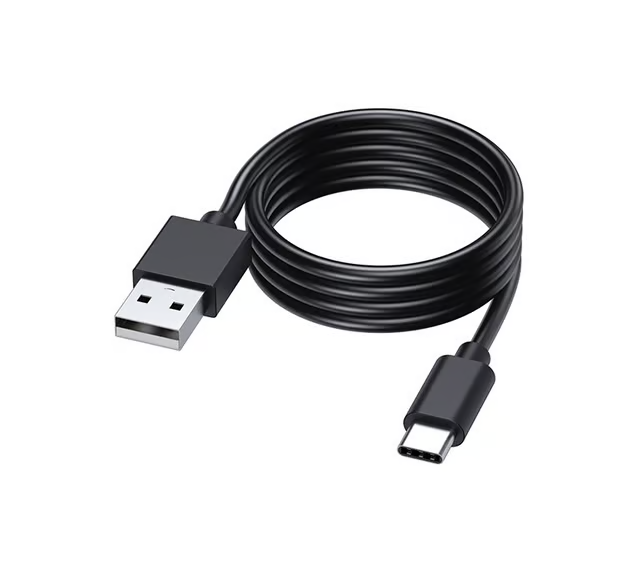

USB-C Cable

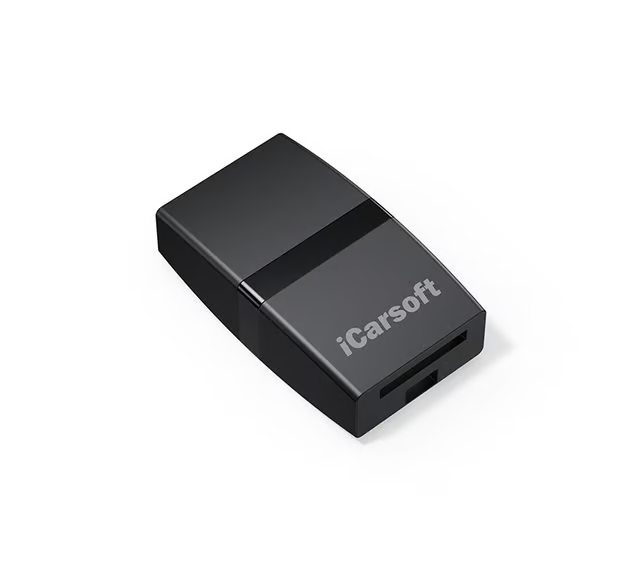

TF Card Reader

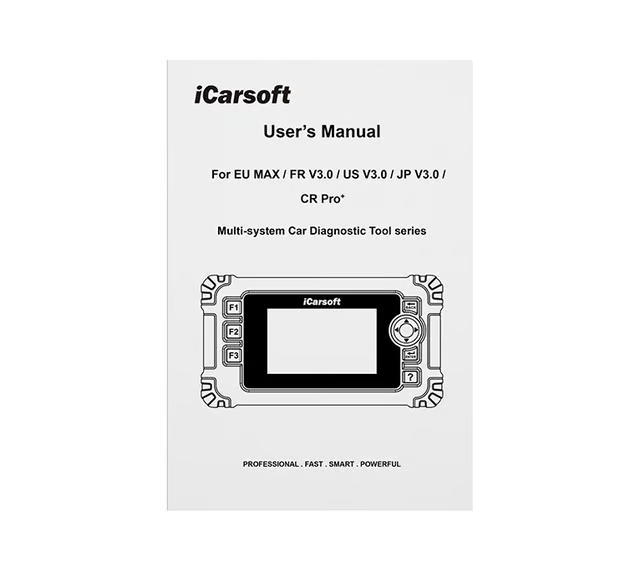

Multi-Language User Manual

Optional adapters are sold separately. A computer and printer are not included.

Buy from HIDS-DIRECT

Frequently Asked Questions

Ready to Check Your Vehicle?

Choose the iCarsoft CR PRO+ for multi-brand diagnostics, supported active tests and maintenance routines in a compact, button-operated tool. If a specific job is essential, contact HIDS-DIRECT with the vehicle details before ordering.
