iCarsoft LR V4.0 Professional Diagnostic Tool for Land Rover & Jaguar

iCarsoft LR V4.0 Diagnostic Tool for Land Rover & Jaguar

The iCarsoft LR V4.0 is a professional Android diagnostic scanner supplied with the Land Rover and Jaguar vehicle group pre-installed. It combines OE-level all-system diagnostics, supported bi-directional active tests, 38 service functions, AutoVIN, CAN-FD support and full OBD2/EOBD diagnostics in one compact 5-inch touchscreen tool.

You can also download two additional vehicle make groups free of charge, creating a flexible three-group diagnostic package without annual subscription fees.

The LR V4.0 includes 64GB internal storage, a 5000mAh rechargeable battery and lifetime free Wi-Fi software updates. Exact system, function and model coverage varies by vehicle specification, model year, ECU configuration and software version.

Why Choose the iCarsoft LR V4.0?

Land Rover & Jaguar Software Plus 2 Extra Vehicle Groups

The LR V4.0 is ready to use with Land Rover and Jaguar software installed. You may then choose and download any two additional vehicle make groups from the list below.

38 Service Functions

The LR V4.0 combines nine commonly used maintenance functions with 29 advanced service routines. Availability varies by vehicle, system and software level.

VIN & Mileage Verification

VIN Verification reads and compares the VIN stored across supported ECUs to help identify inconsistencies or replacement modules.

Mileage Verification reads and compares odometer information stored across supported control units. These functions are for lawful diagnostic and verification purposes only and do not alter vehicle mileage.

OE-Level Full-System Diagnostics

Access supported control modules through the OBDII diagnostic socket to read and clear DTCs, view ECU information, display live data and examine Freeze Frame records.

Advanced Bi-Directional Active Tests

Bi-directional control allows the LR V4.0 to send commands directly to supported vehicle modules. This helps separate wiring, switch, module and actuator faults without unnecessary dismantling or parts replacement.

Examples may include door locks, windows, mirrors, fuel pumps, injectors, throttle actuators, ABS pumps, cooling fans, headlamps, A/C compressors, exhaust flaps and seat motors. Available tests vary considerably by vehicle.

Watch the iCarsoft LR V4.0 in Action

These short demonstrations show genuine LR V4.0 functions. Exact availability depends on the connected vehicle and ECU.

Smart Diagnostic Features

Full OBD2 / EOBD Emission Diagnostics

On compatible vehicles, the LR V4.0 supports all ten standard OBD2 test modes, including Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test and Pending Codes.

Lifetime Free Wi-Fi Software Updates

The LR V4.0 includes lifetime free online software updates with no annual subscription charge.

Connect the scanner to a 2.4GHz Wi-Fi network to download available firmware, vehicle-software and coverage improvements. Updates may expand or refine coverage but do not guarantee every future model or function will be added.

Real LR V4.0 Interface Screens

The screenshots below show genuine LR V4.0 menus and service routines. Menu wording and availability vary by vehicle and ECU.

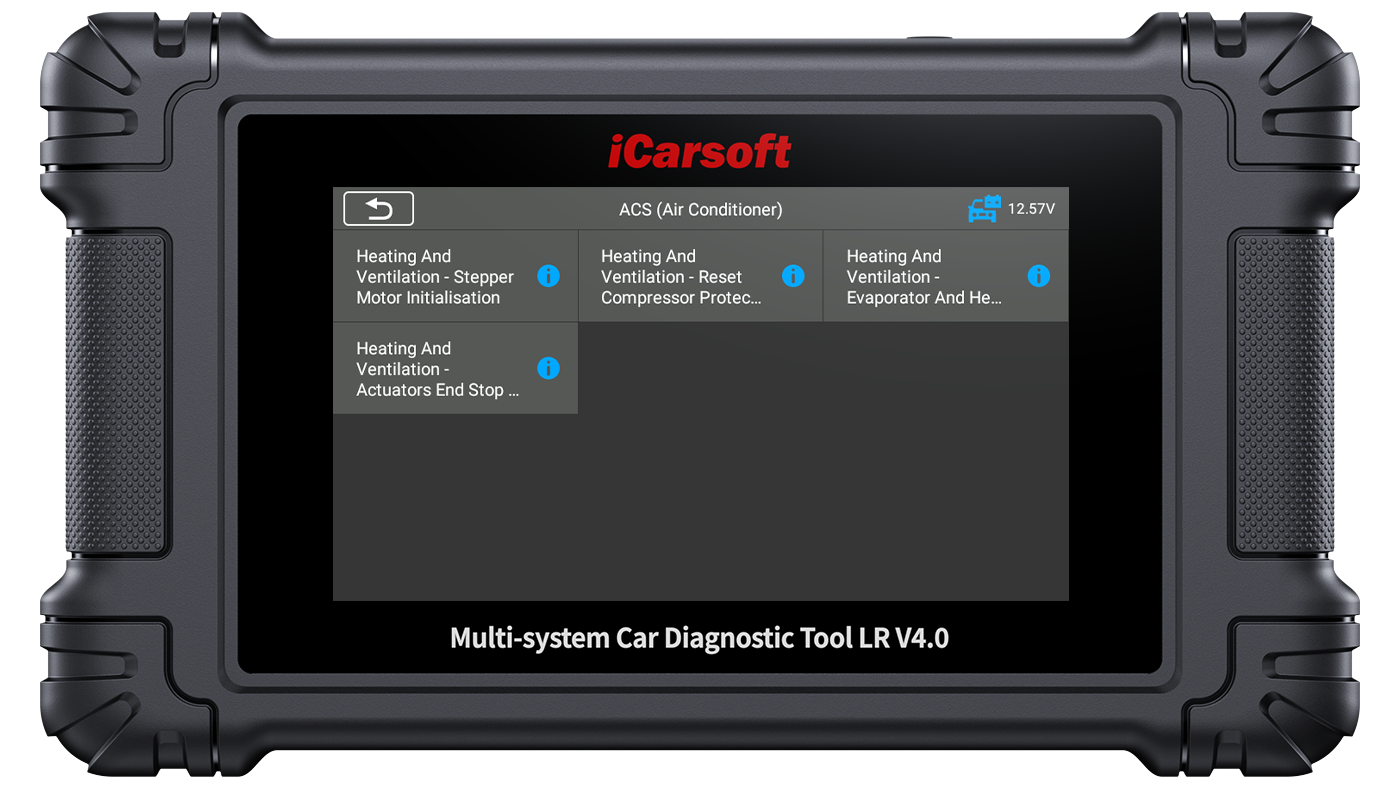

Air Conditioning Service

Access supported A/C adaptation, compressor and stepper-motor procedures.

ABS Bleeding

Operate supported ABS bleeding and related hydraulic routines.

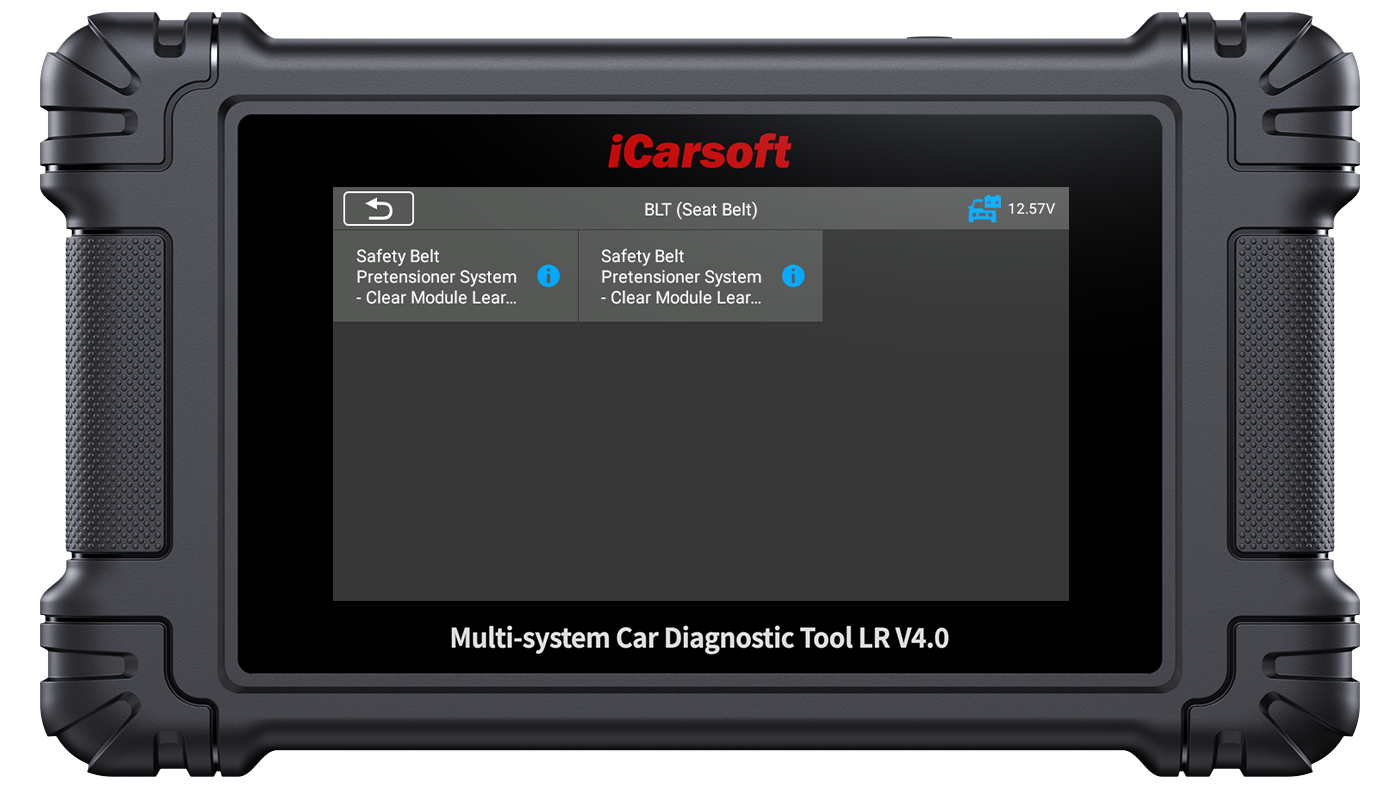

Seat Belt Service

Access supported seat-belt and pretensioner maintenance functions.

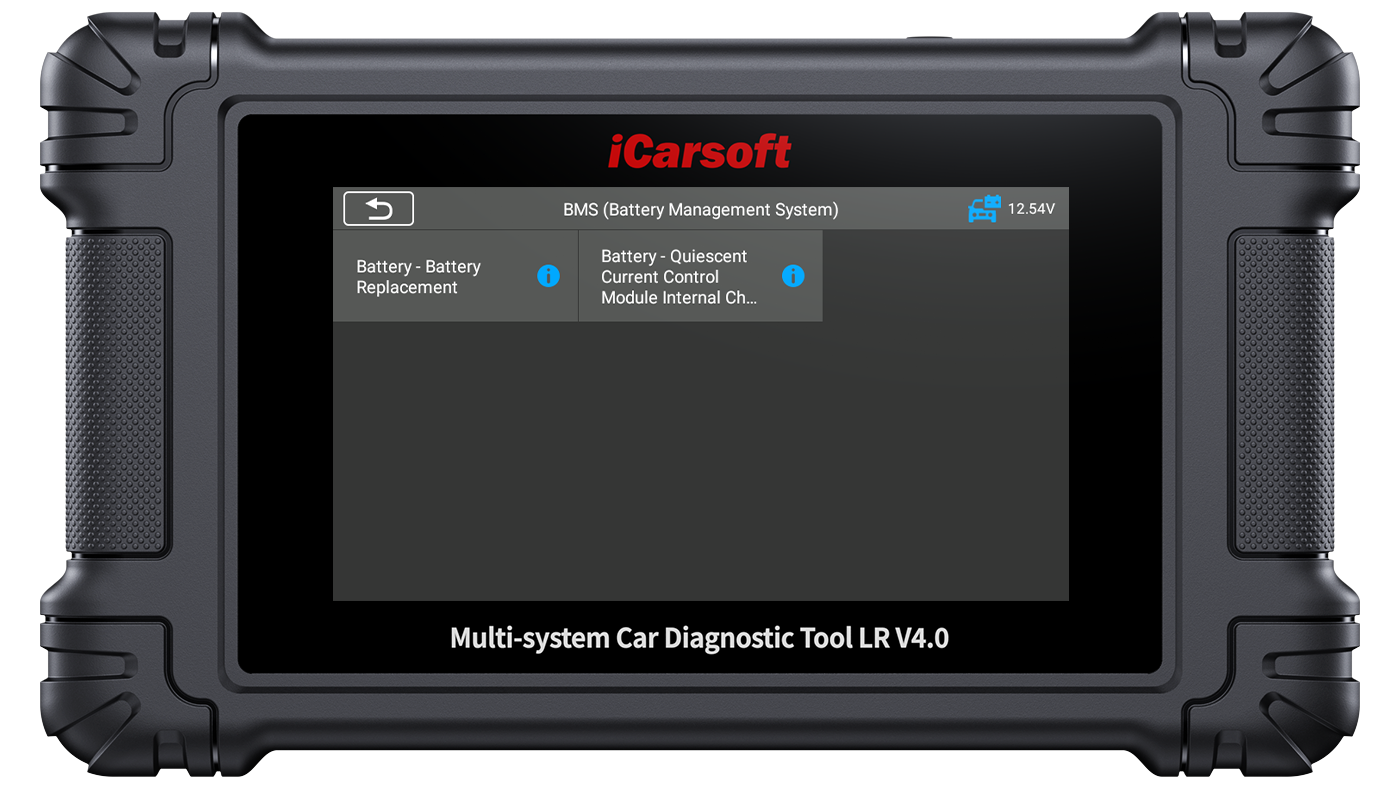

Battery Management

Register supported replacement batteries and access battery-management routines.

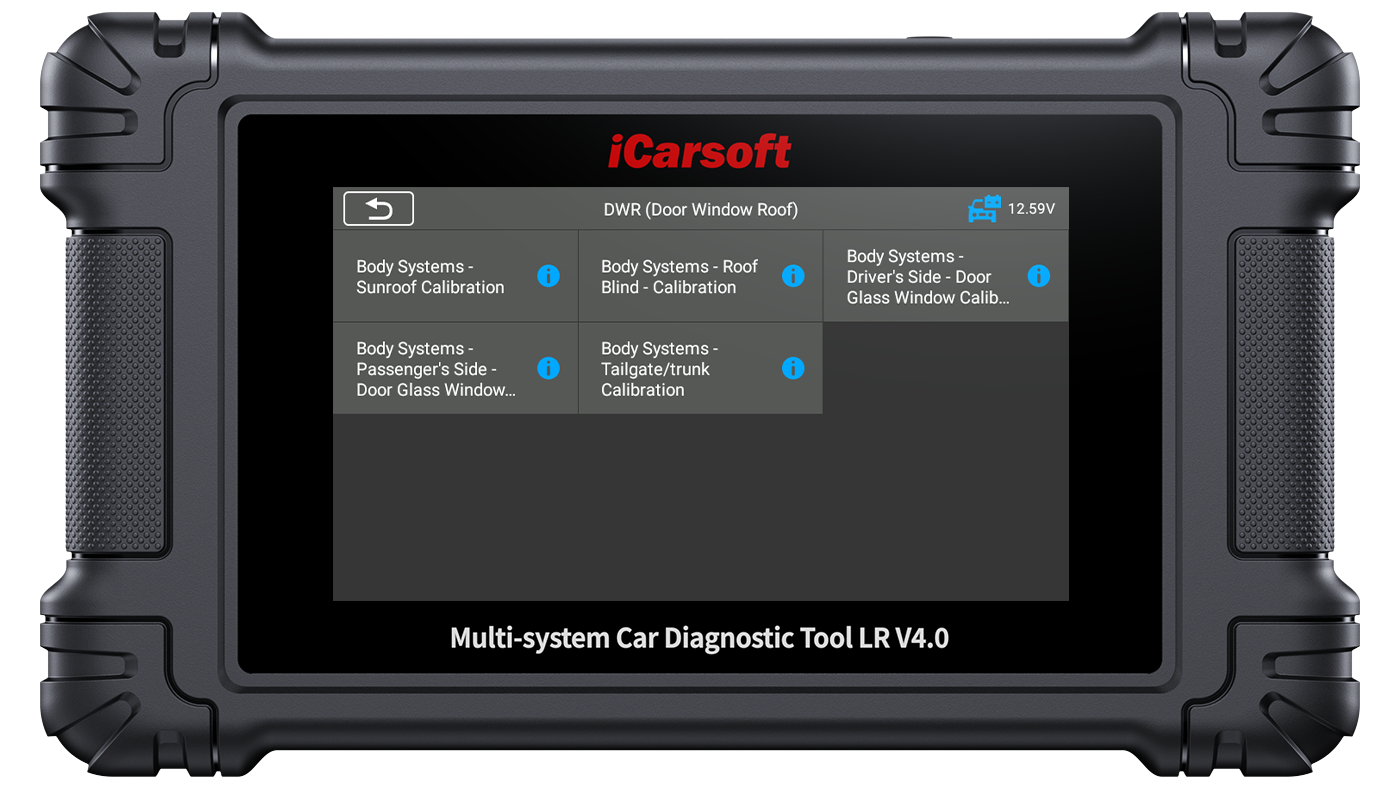

Door, Window & Roof

Carry out supported calibration and anti-pinch relearn procedures.

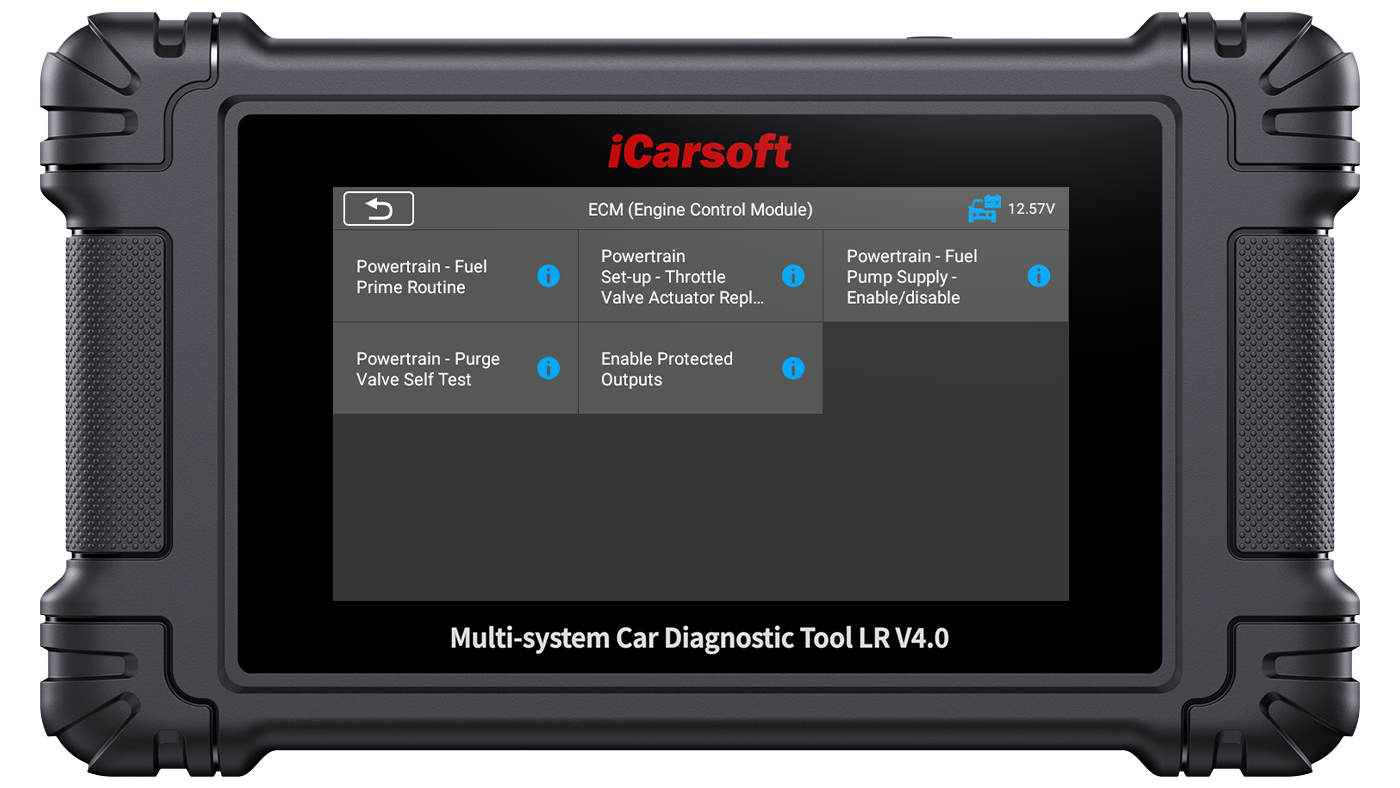

Engine Control Service

Reset or delete supported engine adaptation values.

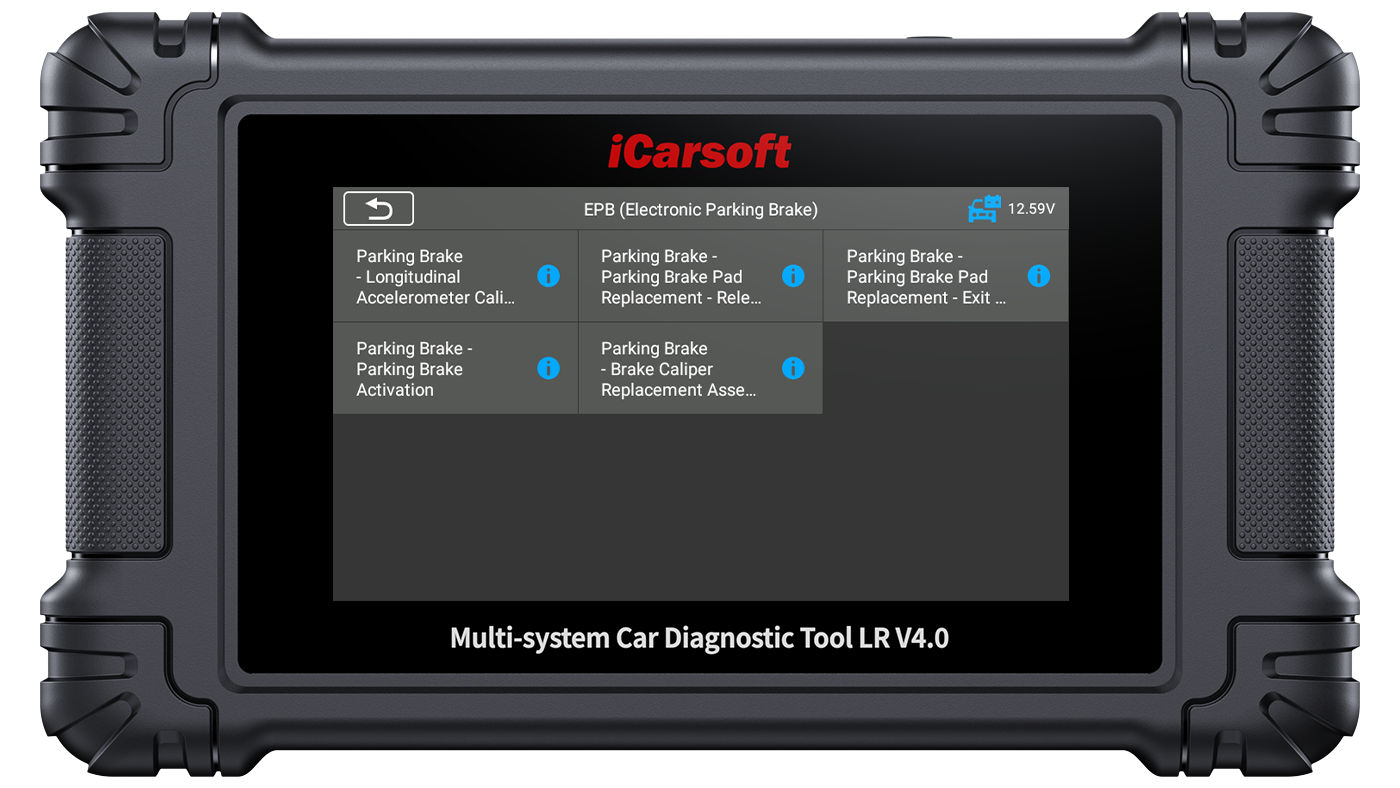

Electronic Parking Brake

Retract supported EPB calipers and complete brake-pad servicing.

Electronic Throttle Control

Relearn supported throttle-control parameters.

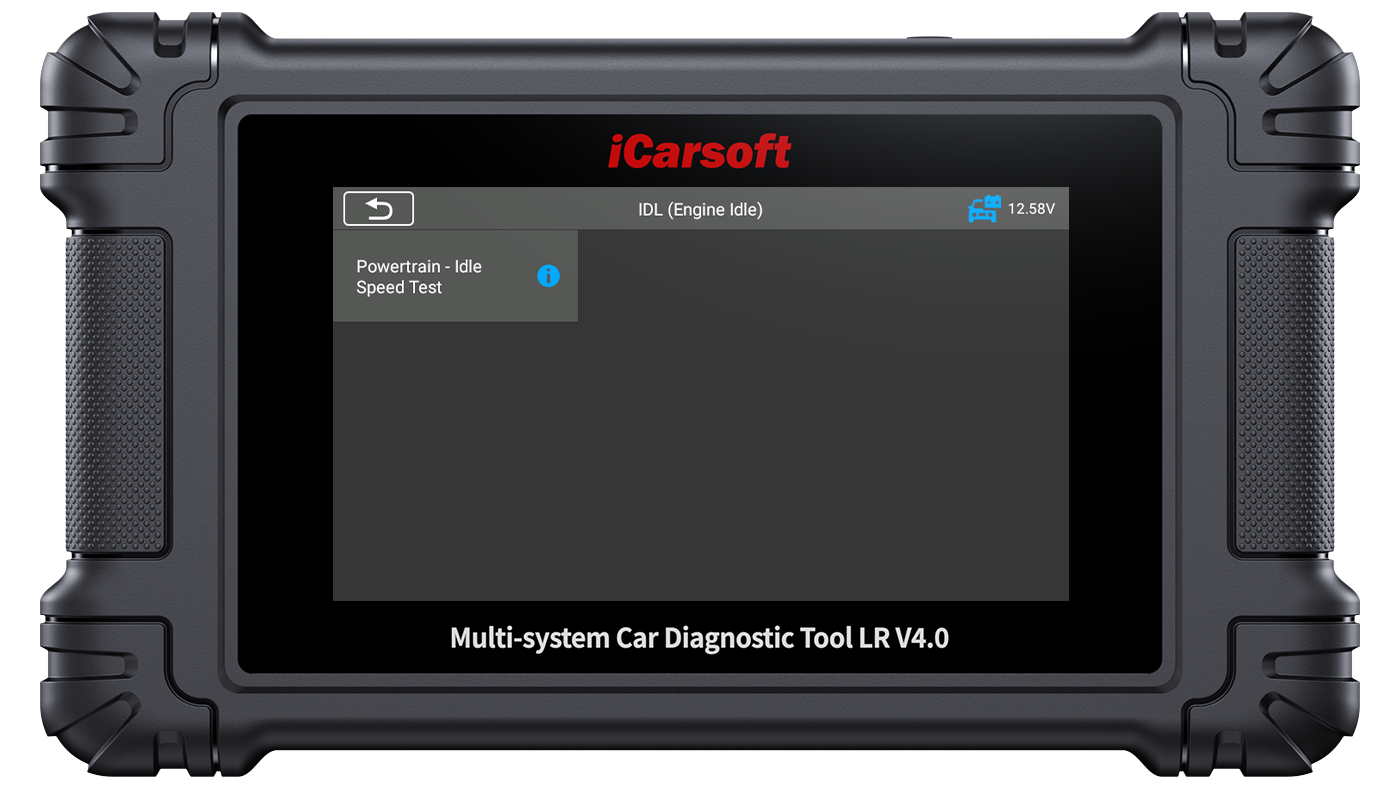

Engine Idle Service

Adjust or relearn supported idle-speed values.

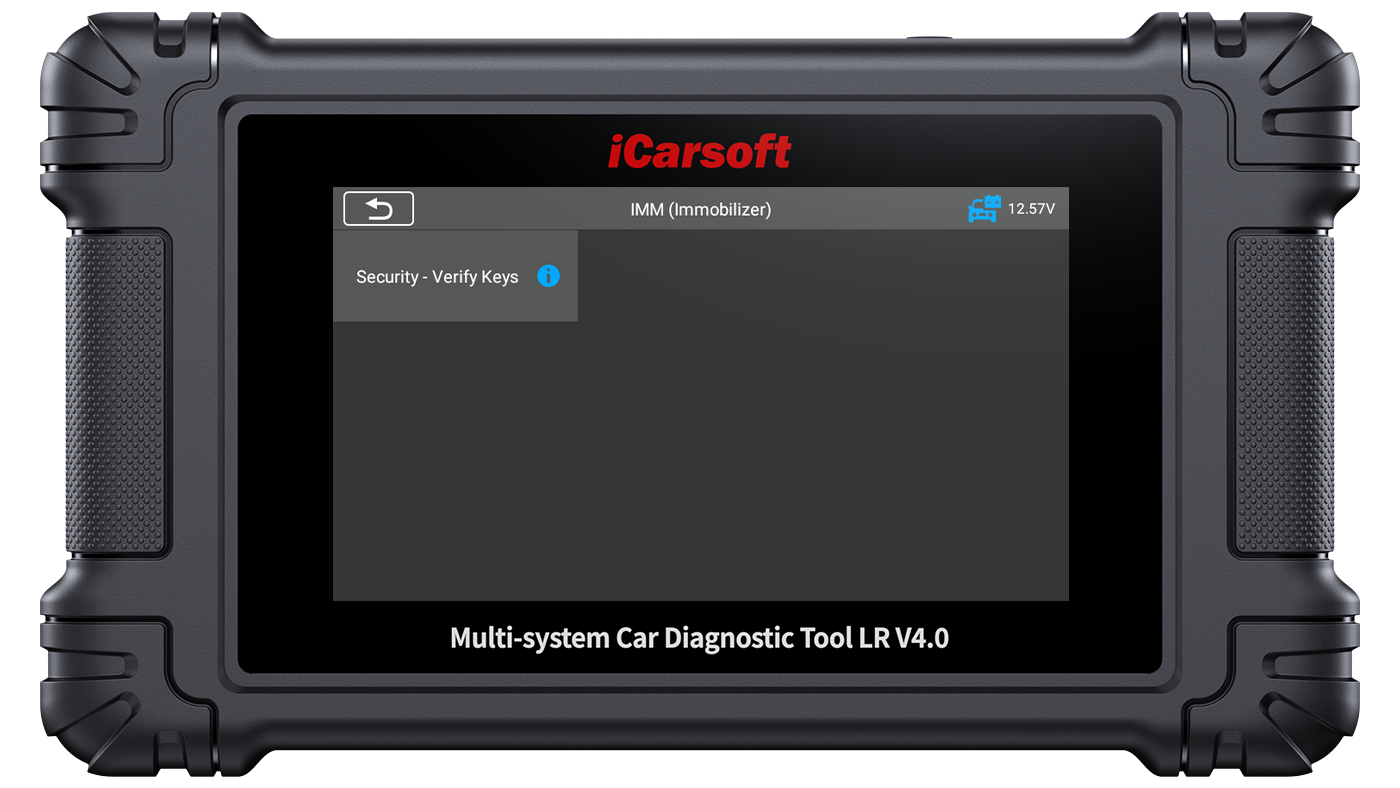

Immobiliser Service

Access basic supported immobiliser matching and key functions.

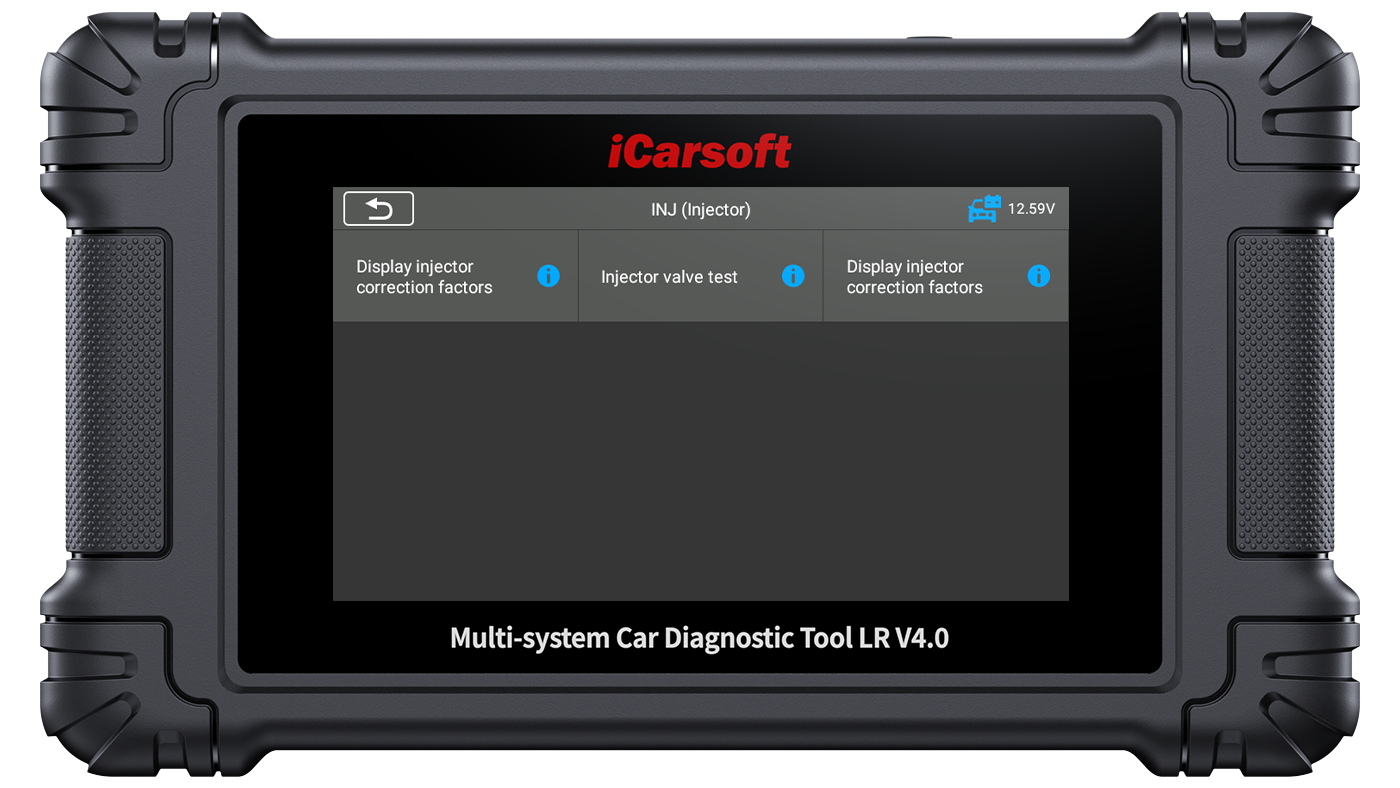

Injector Coding

Enter or relearn supported injector correction values.

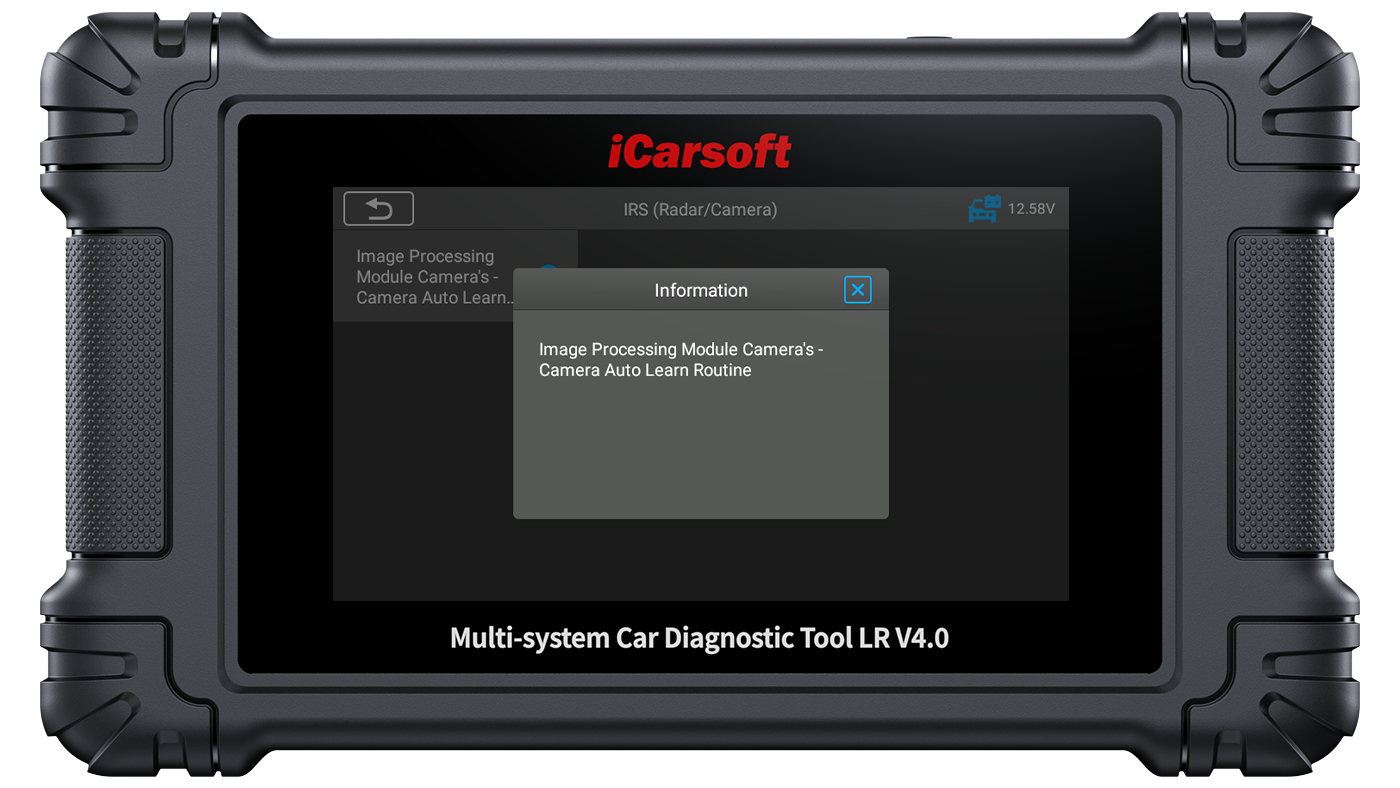

Radar & Camera Calibration

Access supported ADAS radar and camera learning procedures.

Radar & Camera Guidance

View the supported calibration information and on-screen guidance.

Mileage Verification

Read and compare stored odometer information; this does not change mileage.

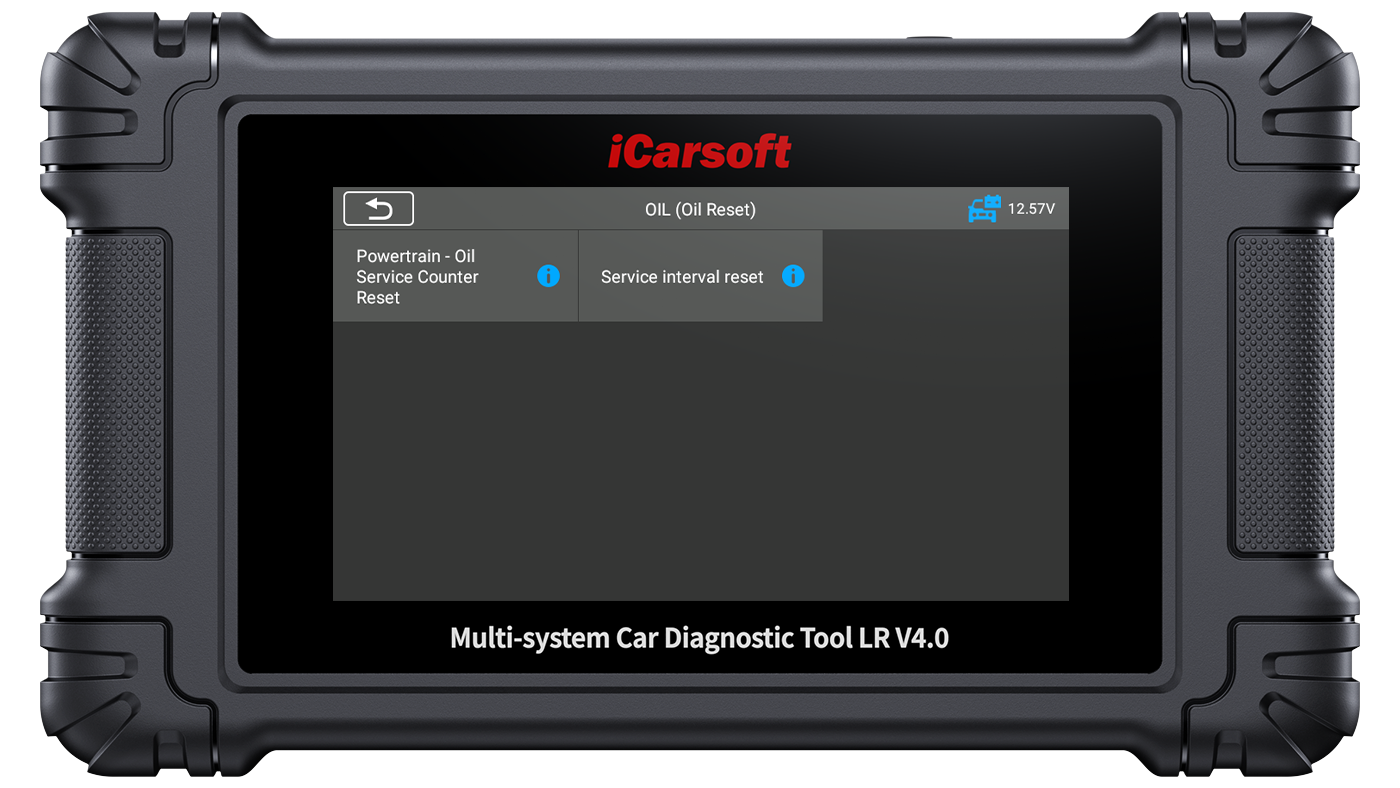

Oil Service Reset

Reset supported oil-life and maintenance reminders.

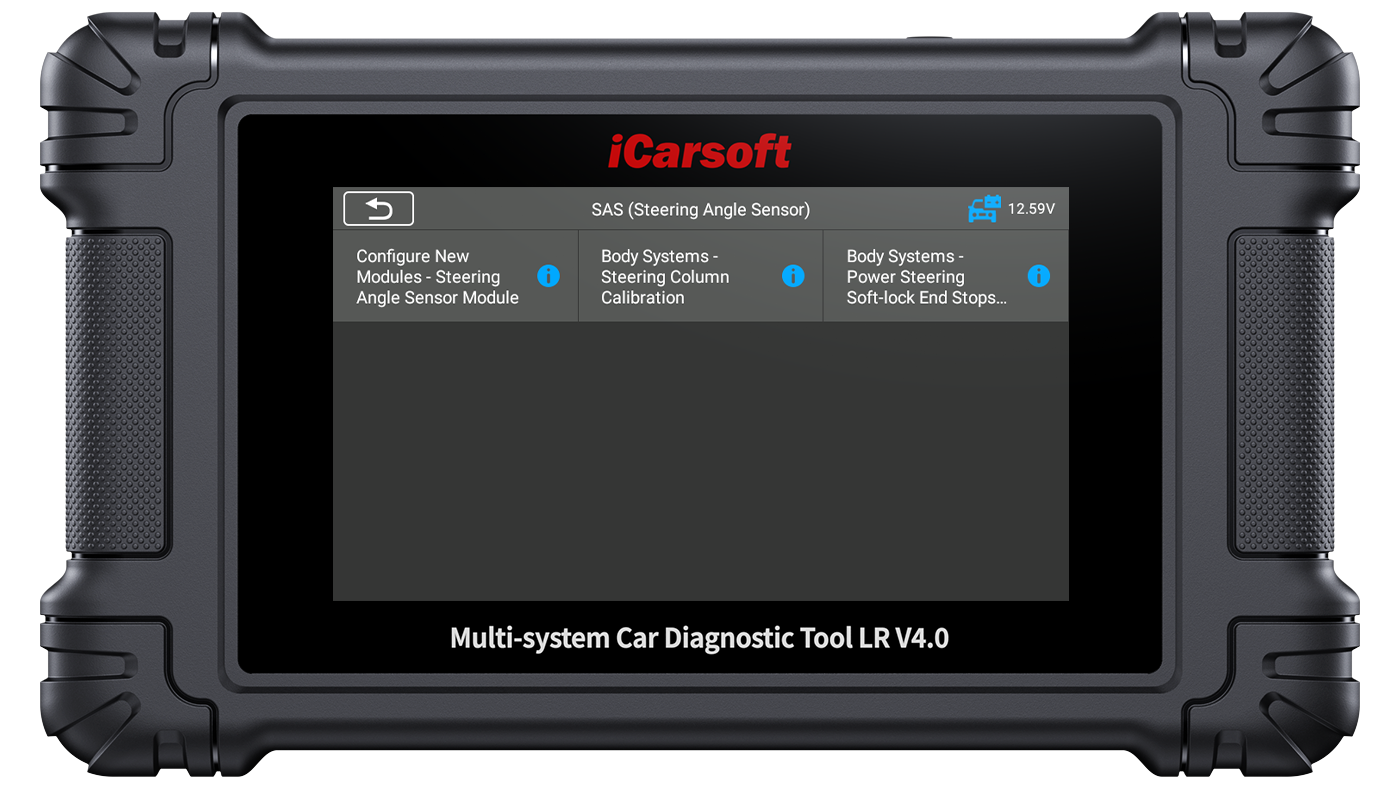

Steering Angle Calibration

Calibrate supported steering-angle sensors after repairs or alignment.

Seat Calibration

Relearn supported seat position drives after repair or replacement.

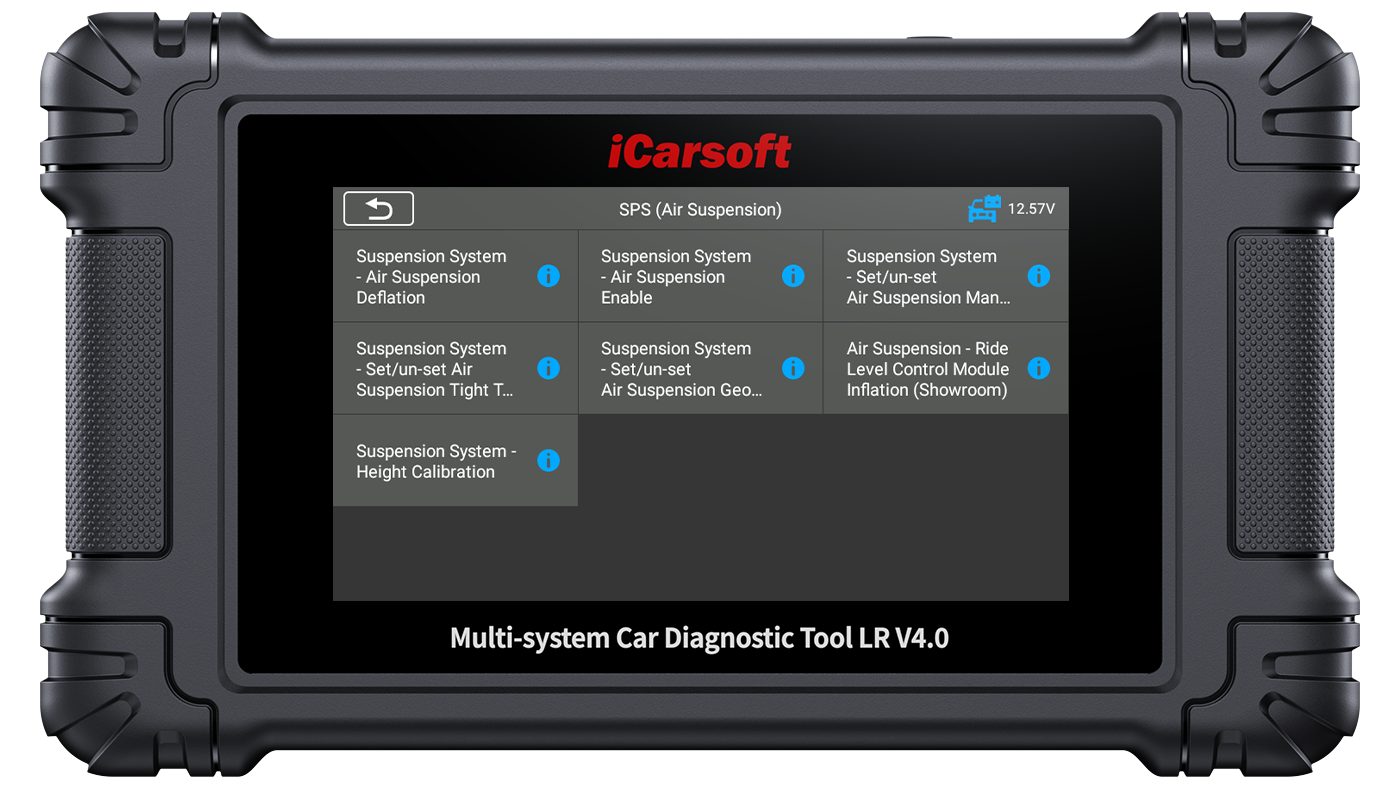

Air Suspension Service

Calibrate supported ride height and suspension settings.

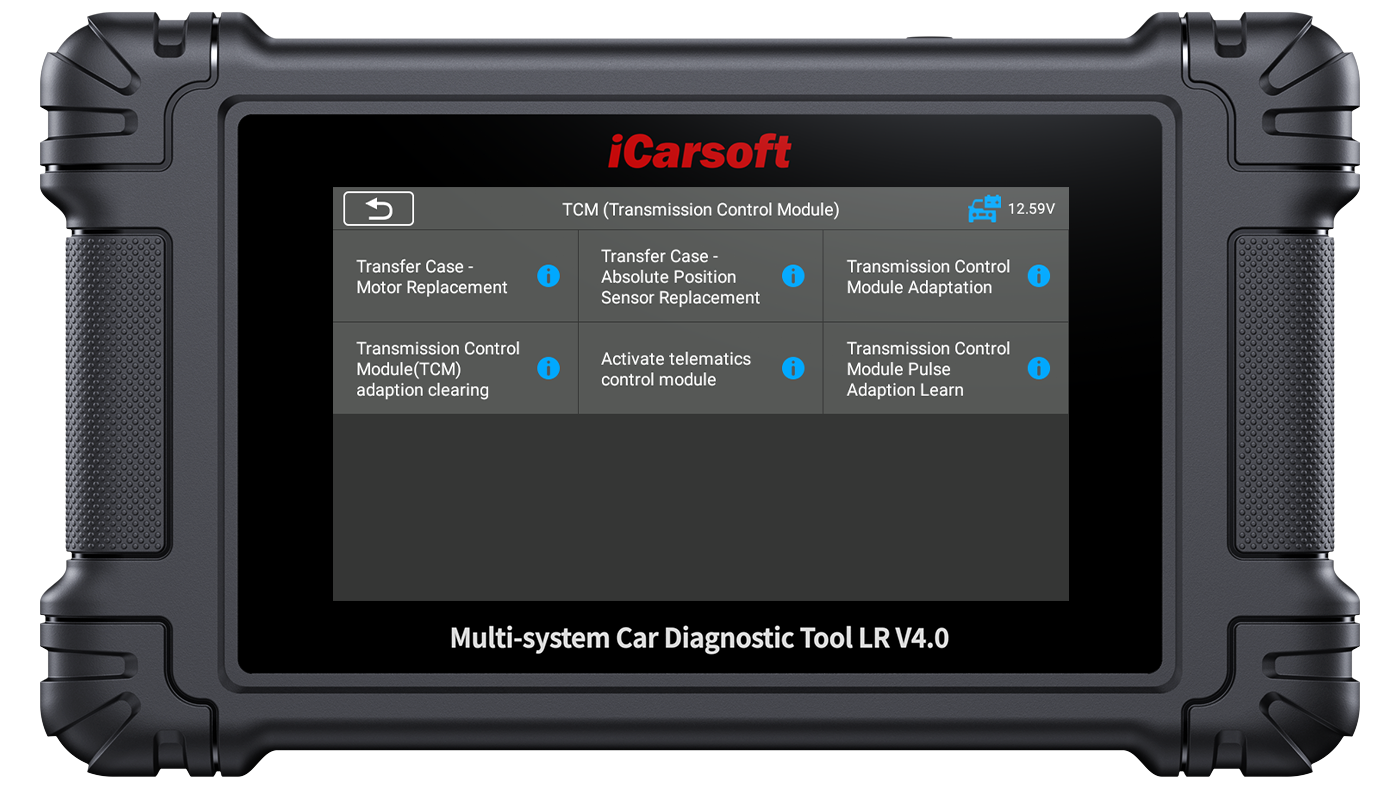

Transmission Control Service

Reset supported transmission adaptations and related service values.

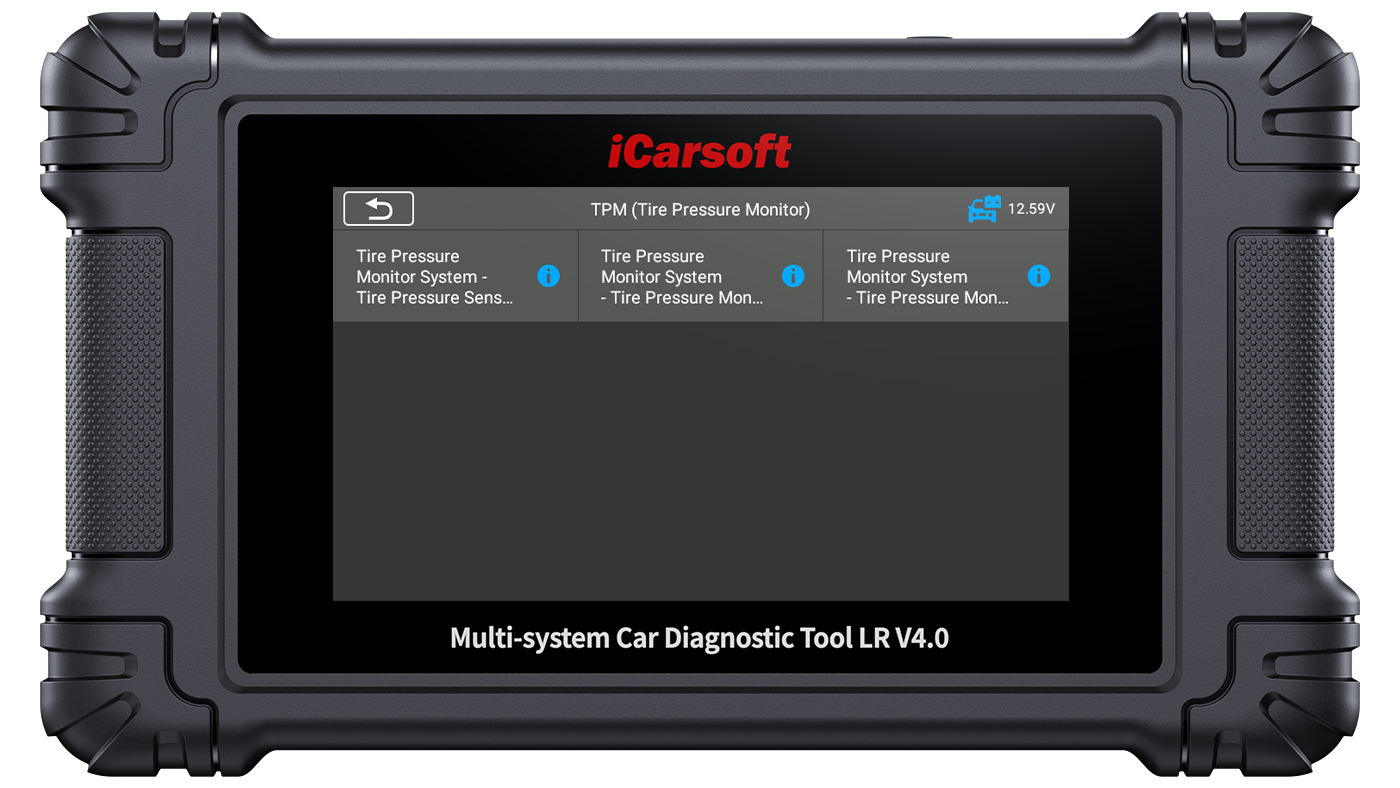

TPMS Service

Access supported tyre-pressure sensor IDs and reset procedures.

Who Is the LR V4.0 For?

15 Supported Languages

English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish and Finnish.

Before Connecting the Scanner

Why Buy from HIDS-DIRECT?

Frequently Asked Questions

Professional Land Rover & Jaguar Diagnostics Without Annual Subscription Fees

OE-level all-system diagnostics, genuine active tests, 38 service functions, two downloadable vehicle groups, 64GB storage and lifetime free updates in one compact 5-inch tool.
